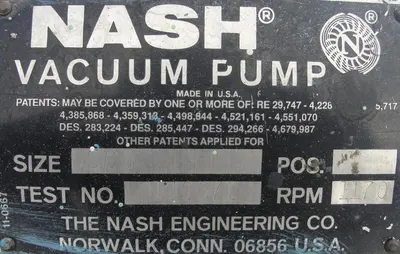

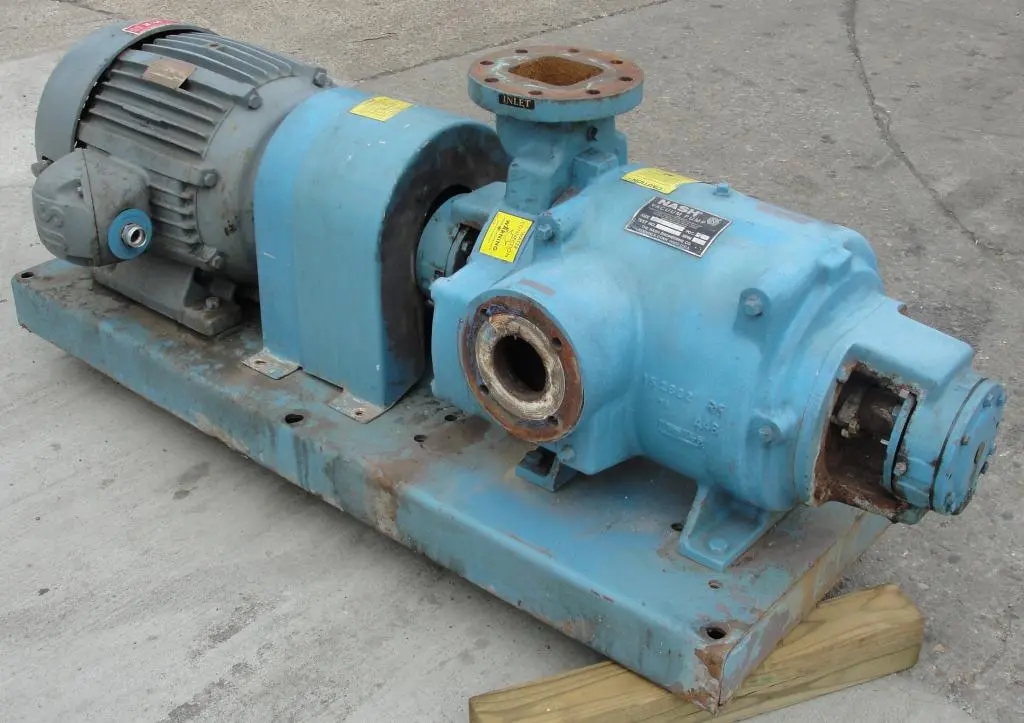

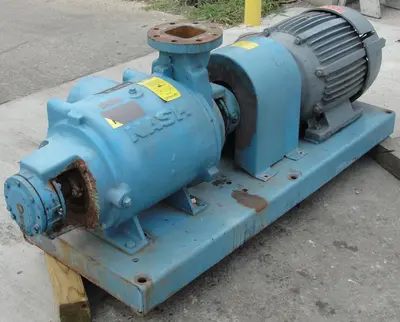

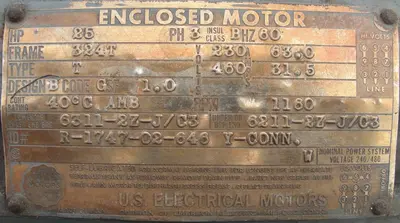

Nash model SC-5 liquid ring vacuum pump. Pump has up to an estimated 450 cfm @ 24" Hg. This pump has a 4" x 4" flanged inlet and a 3" diameter outlet. Pump is constructed of carbon steel. The pump is driven by a 25 hp 1160 rpm motor. Requires 230/460 vac 3 phase electrical supply.
Hp: 25
Inlet: 4" x 4"
Outlet: 3"
Size: 450 cfm
