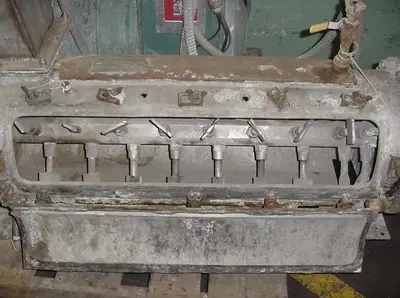

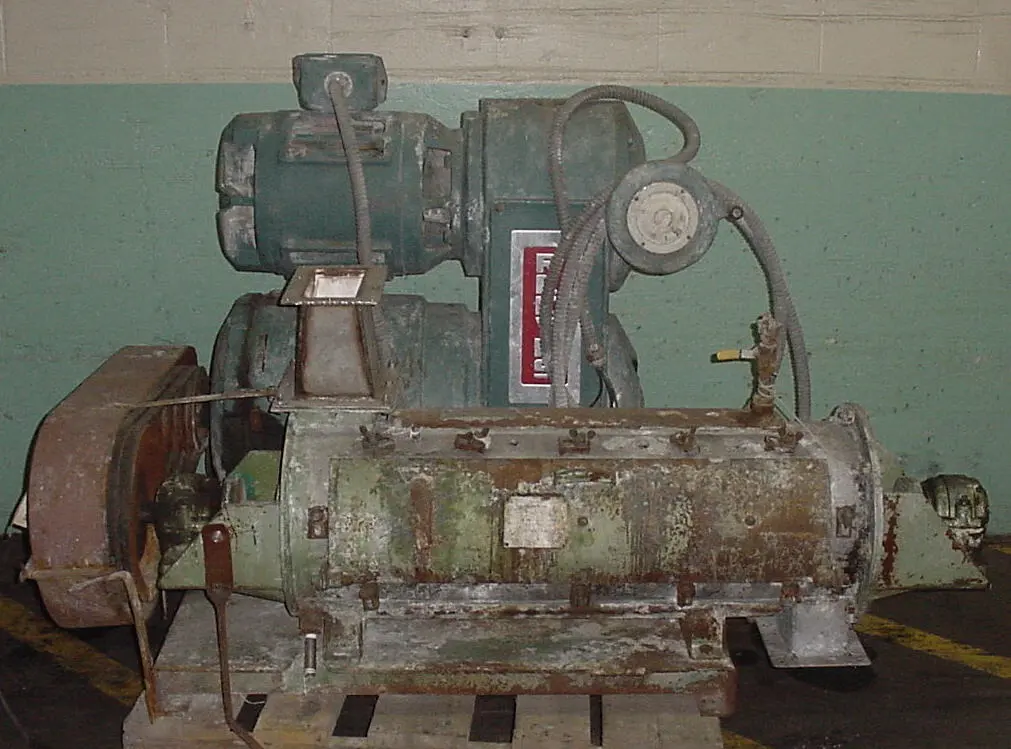

Strong Scott Turbulizer for continuous high shear paddle mixing. Stainless steel construction. Model TJS 14B. Equipped with 20 hp Reeves drive. Half jacketed rated 150 psi @ 650° F. Mixing chamber is 14" in diameter by 40" long. The paddled rotor turns at a maximum of 2400 rpm. It has 4" x 10" top infeed and bottom discharge. Also has a 6.5" x 34.5" access door. Requires 230/460 vac 3 phase electrical supply. For processing dry powder mixing, hydrating hard to wet powders, slurry mixing, coating, sterilization, crystallization, agglomerating / granulating, homogenizing, de-lumping and more.
Hp: 20
Jacket: 150 psi @ 650° F
Power Required: 230/460
Serial No.: 605-814
Chamber: 14" dia x 40" long
