SPC7869 Kettle 300 gallon APV Crepaco processor kettle, agitator 1.5 hp side scrape, 75 psi jacket rating, Stainless Steel, internal baffles
Overview
Description

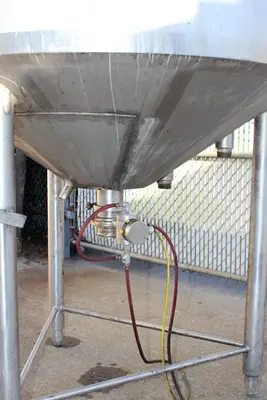

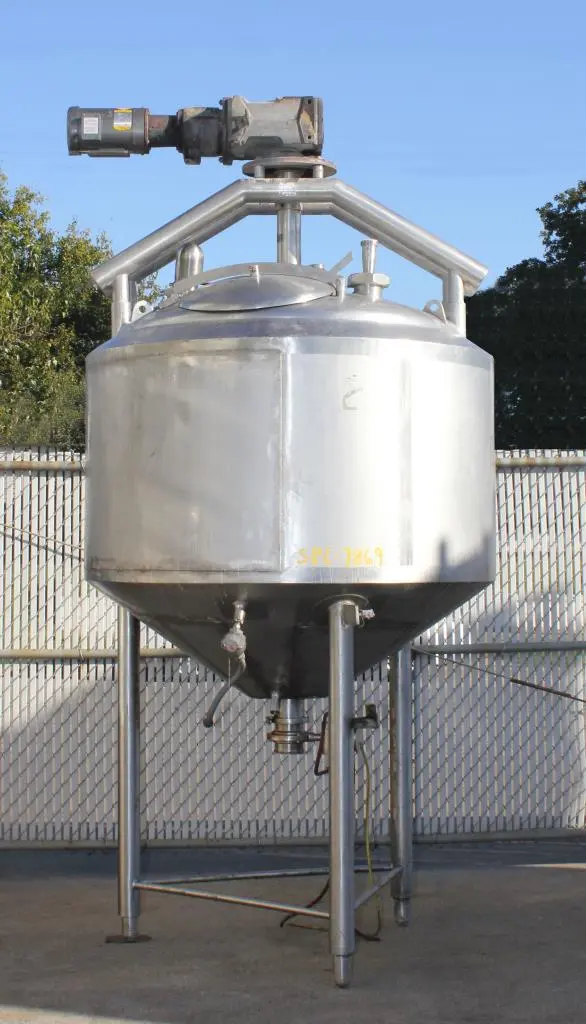

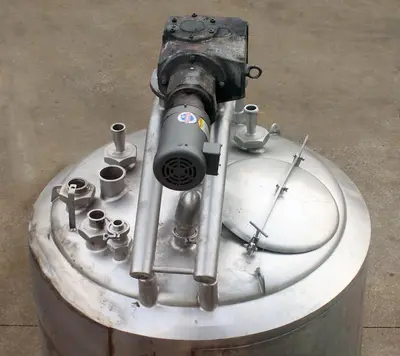

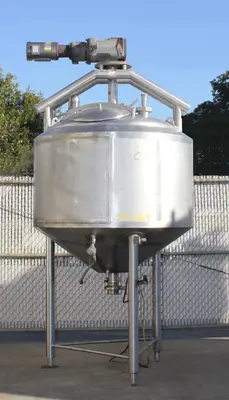

300 gallon APV Crepaco, stainless steel, steam jacketed, processor kettle with a dome top and a conical bottom on three adjustable legs. The 3 zone jacket is rated for 75 psi@ 350F. Kettle is 48" inside diameter with 34" straight side and a 12" deep cone. Kettle has a 1.5 hp top mounted side scrape agitator with baffles. 208-230/460 vac 3 ph power required. There is about 35" clearance under the vessel. The top has an 18" manway with a lid, 5 each 4", one 2.5" and one 2" sanitary connections. The side has 3 each 2" NTP jacket connections. The bottom has a 4" center sanitary discharge, 2 each thermowells and two 2" NTP jacket connections. Serial number K-1256. Duplicate tag. 126" overall height.
Specifications
Agitator: 1.5 hp side scrape
Gallon: 300
Psi Jacket Rating: 75
Temp (F): 350 f
Special Comment: internal baffles
