SPC8934 Kettle 2,000 gallon Walker processor kettle, agitator 3 hp side scraping, 15 psi jacket rating, 304 SS

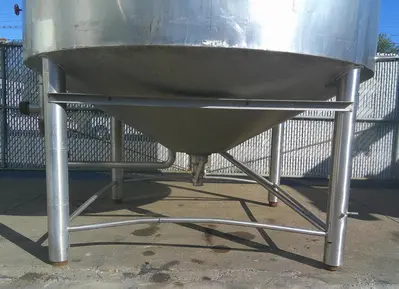

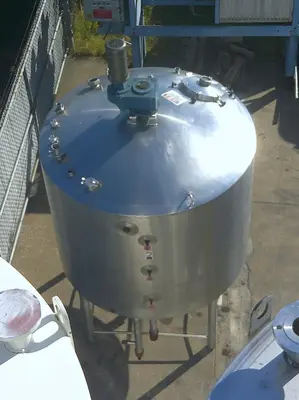

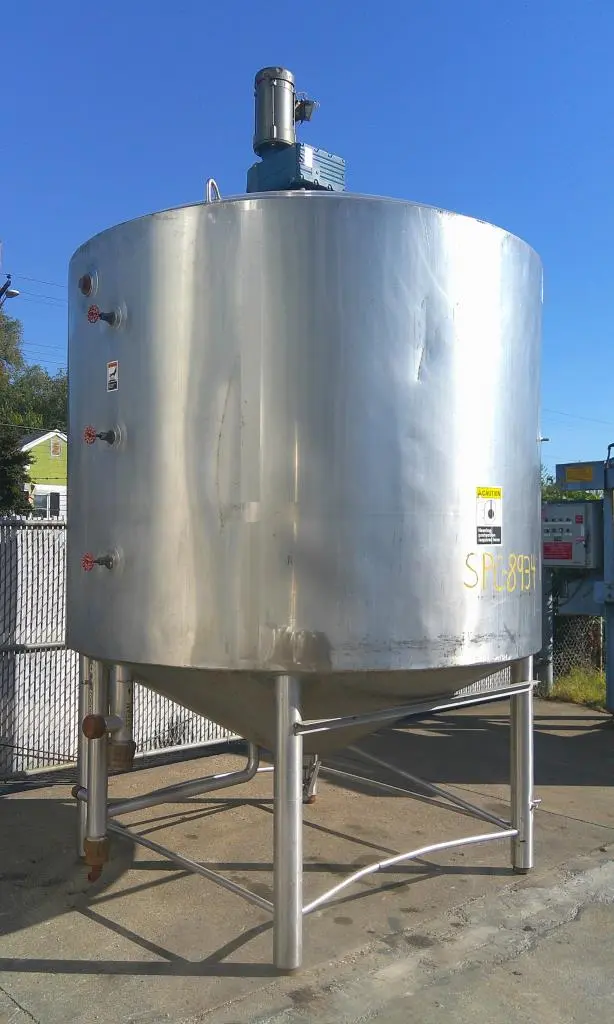

2,000 gallon Walker 304 stainless steel processor kettle. Walker model PZ-C3-PV. Vessel is 96" OD x 72" straight side. Vessel is 10 PSIG at 250 degrees F. Jacket heat is 15 PSIG at 250 degrees F. Jacket cool is 100 PSIG at 100 degrees F. Jacket has three zones with 2" valves. Jacket has 3" condensate with 4" outlet. Bottom has 3" tri clamp outlet. Top has 19" hinged manway with 4" sight glass. Nozzles on top are threaded 6", threaded 3", two 3" tri clamp and two 2" tri clamp. Unit has a 3 hp scrape agitation. 230/460 vac 3 ph electric power required. There are some cosmetic scratches and dents in the outer skin, otherwise appears to be in good shape.

Agitator: 3 hp side scraping
Gallon: 2,000
Psi Jacket Rating: 15
Temp (F): 250 degrees F
