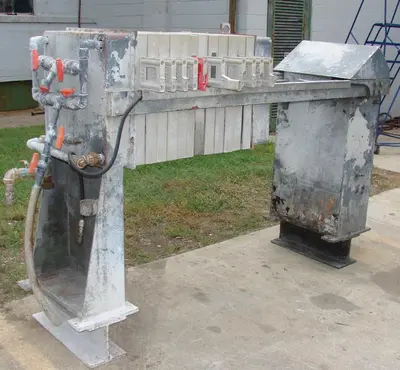

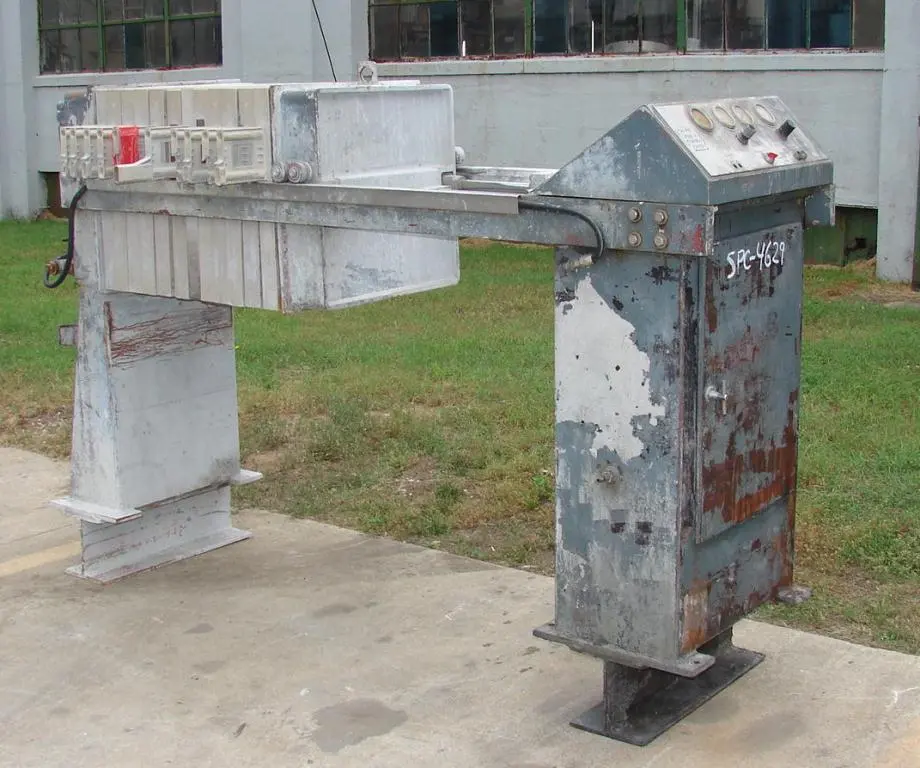

Cal-Press 3.2 cuft recess plate filter press. Model AC 25-X. Poly plates with carbon steel frame. Semi-automatic closure system uses air over oil hydrualic pistons. (12) 630 mm plates. Plates measure 22.25" x 22.25" x 2.25". 11 chambers hold 1.25 in cake. Plates have 1" diameter inlet and outlet channels in corners. Equipped with air blowdown maniflold. Overall dimensions are 7' long x 2.5' wide x 5' high. Fair Condition
Plate Length: 22.25
Plate Width: 22.25
Plates: 12
Size: 3.2 cuft
