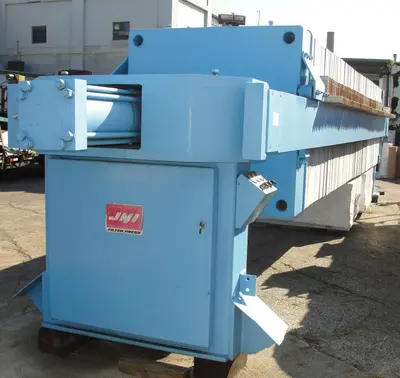

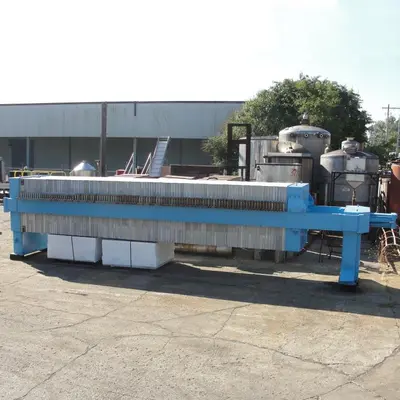

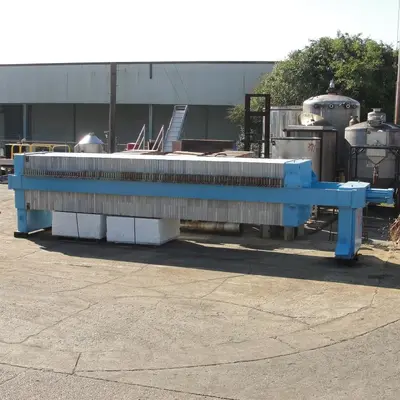

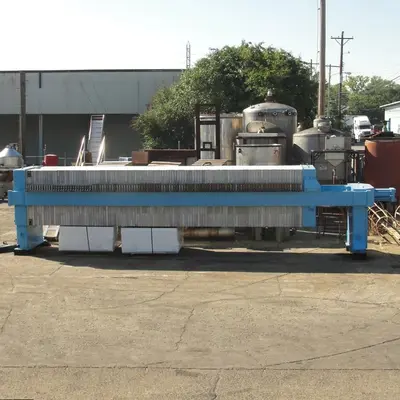

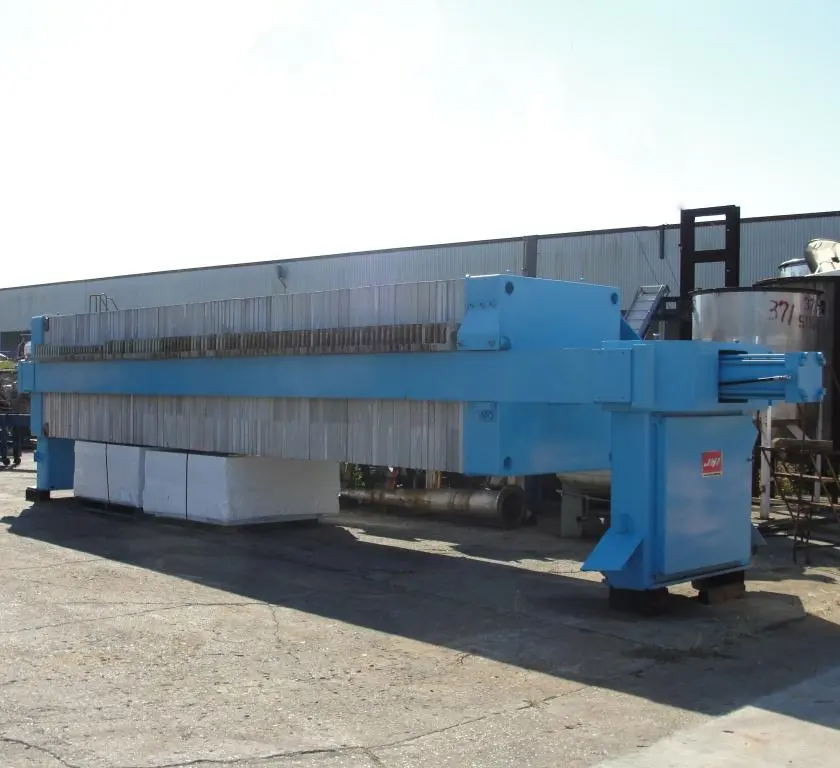

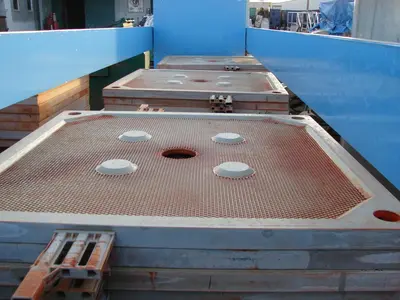

JWI model 1450 mm recessed plate filter press. The filter press has (108 plates) polypropylene recessed plates that measure approximately 57" wide x 57" tall x 2.5" thick with top center feed eye and four corner filtrate eyes and has an estimated 3784 sq ft filtration area. The 32 mm thick cake has an estimated 194 cu ft total cake volume. Plate number is 4L78. Overall dimensions are 34' long x 5.5' wide x 8' tall. Cylinder has been rebuilt. Good working condition. Frame rated for 100 psi.
Plate Length: 57"
Plate Width: 57"
Plates: 108
Serial No.: 2019
Size: 194 cu ft
