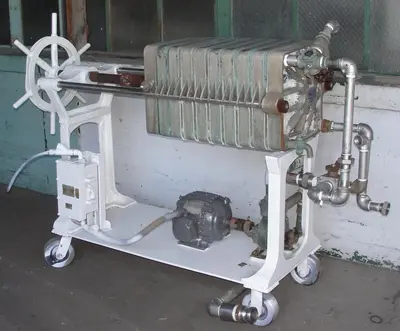

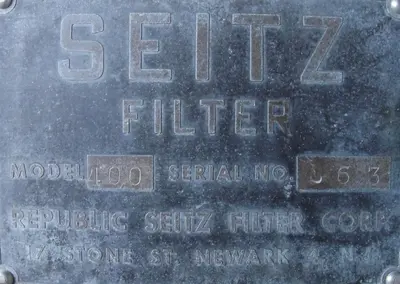

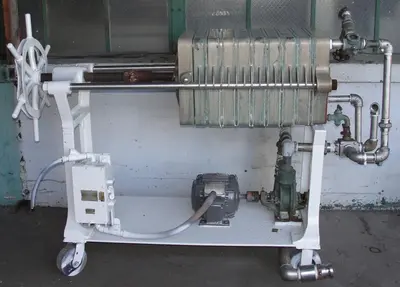

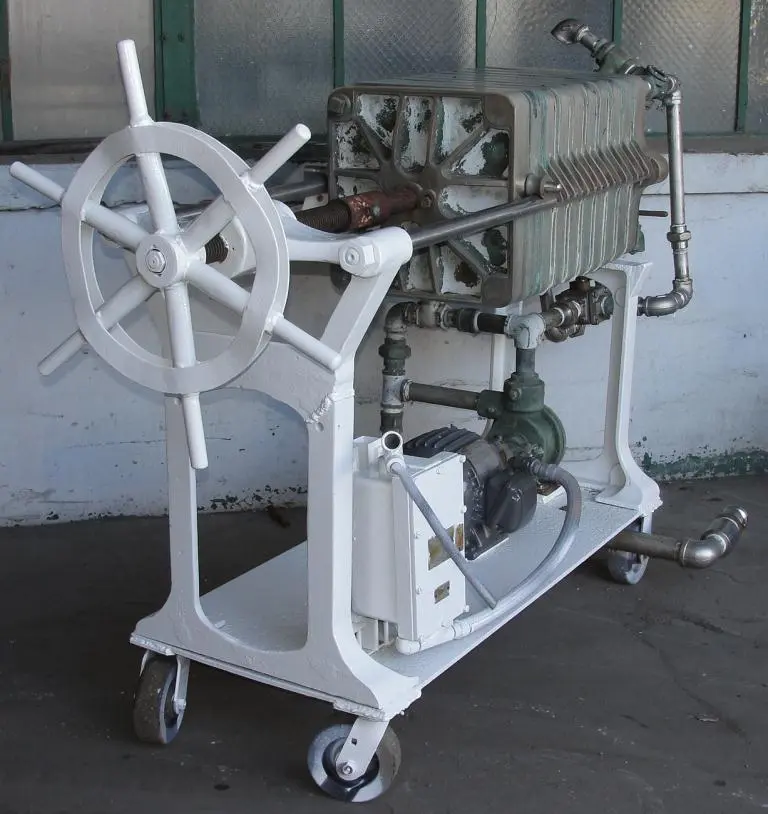

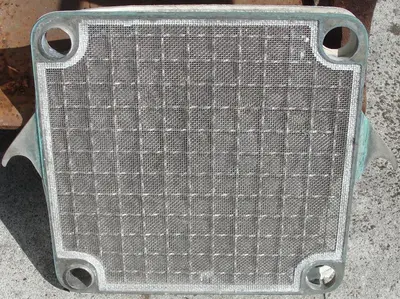

Seitz 1.8 cu ft brass plate and frame filter press. Model 400. Serial # 363. The 17 plates measure 15.5" x 15.5" with a 15" x15" interior opening. The 8 frame areas are 1.75" deep. The plates have 1.25" outlets in the corners. The plates have a hand wheel closure system. The inlet and outlet are connected to two 2" fittings. This filter is also equipped with a 1" x 1" x 4" centrifugal pump. The pump is gear reducer driven by a 1 hp motor. Overall dimensions are 66" l x 24" w x 44" h. Requires 230/460 vac 3 ph electrical supply. Fair condition.
Capacity: 1.8 cu ft
Plate Length: 15.5"
Plate Width: 15.5"
Plates: 17
Serial No.: 363
Sq.ft.: 20
