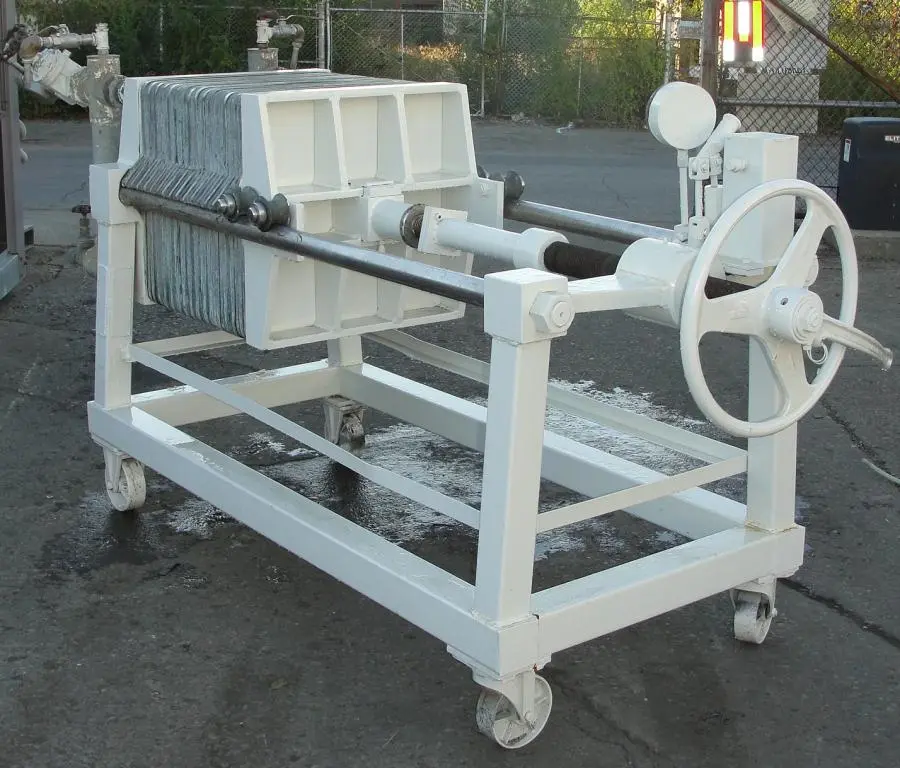

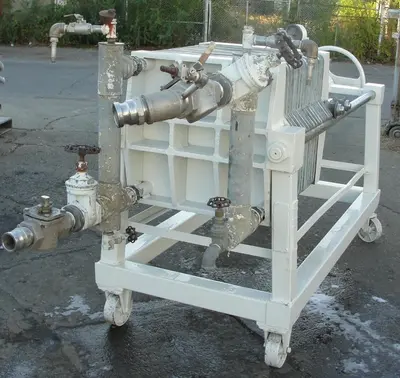

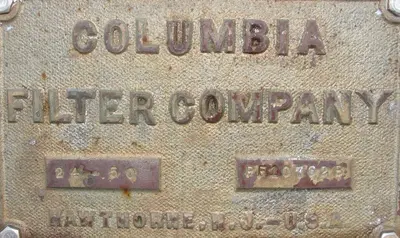

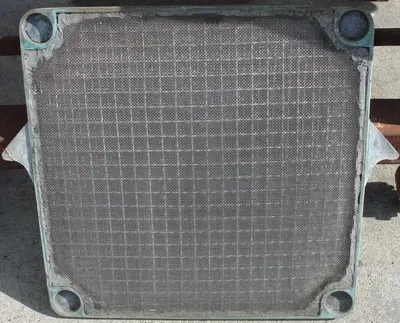

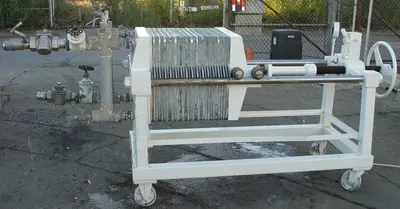

Coumbia 2.5 cu ft brass plate and frame filter press. Model 24-50. Serial # 107325. The 29 plates measure 23" x 23" with a 21.5" x 21.5" interior opening. The 14 frame areas are 3/4" deep. The plates have 1.5" outlets in the corners. The plates have a hand wheel closure system. The inlet and outlet are connect to 2" ball valves and camlocks. Overall Dimensions are 115"l x 32" w x 48"h. Fair condition.
Capacity: 2.5 cu ft
Plate Length: 23"
Plate Width: 23"
Plates: 29
Serial No.: 107325
Sq.ft.: 88
