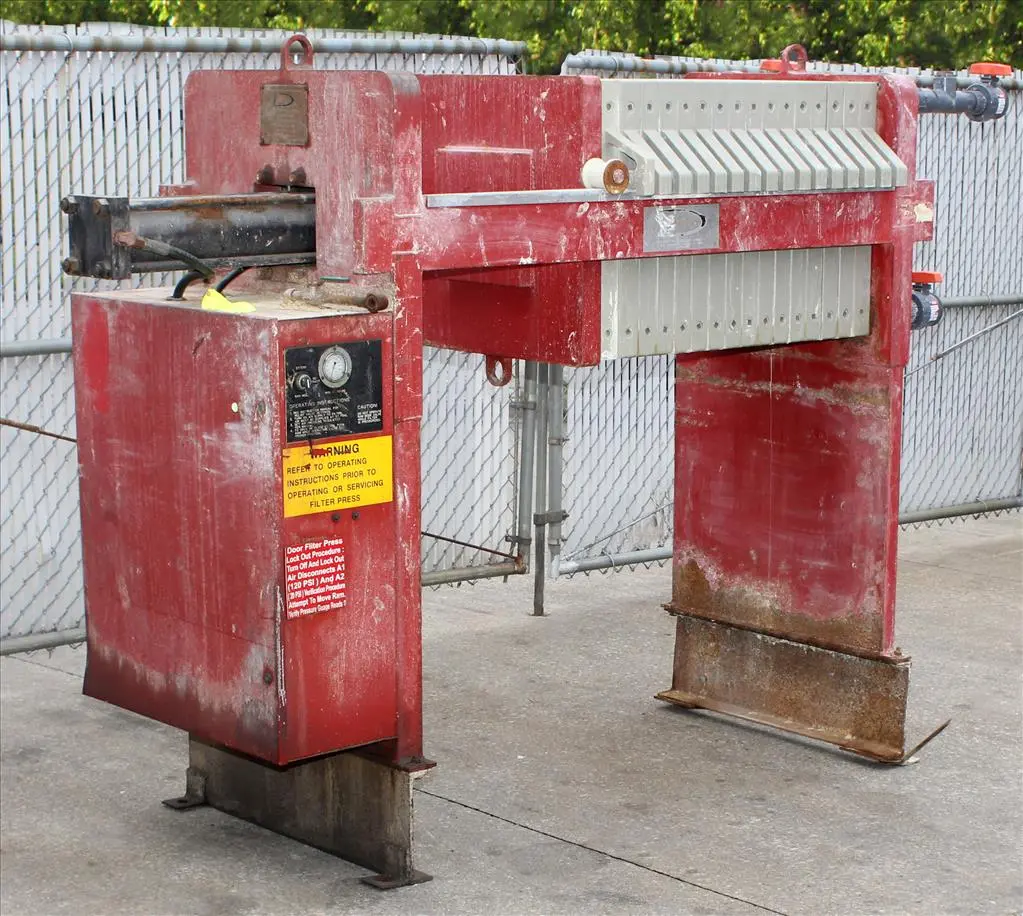

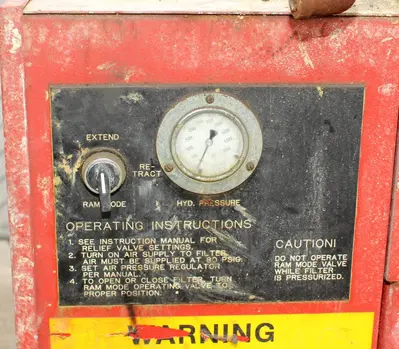

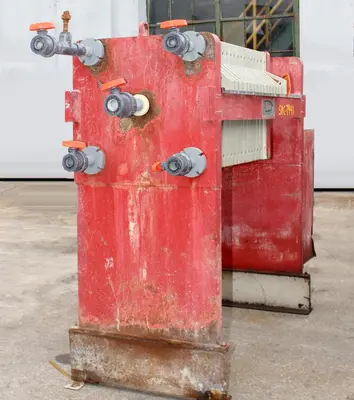

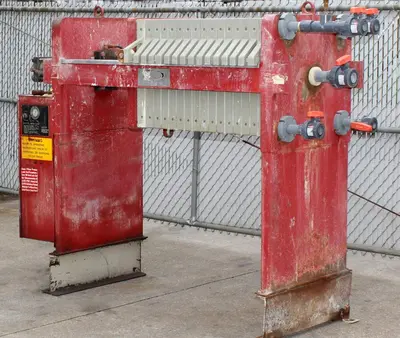

Used Duriron 630 mm recessed plate filter press. Missing tag for model. Approximately 5 cu.ft. cake capacity. The filter press has (17 plates) gasketed polypropylene recessed plates that measure approximately 25" wide x 25" tall x 2.25" thick. Center feed, 4 corner return. Plates have 2" diameter outlets in corners and 2.5" diameter center inlet.The filter uses an hydraulic system ram and extended closure. Powered by an Atlas series H heavy-duty hydraulic cylinder, for demanding application up to 3000 psi. Serial number: E02139. Overall 35" x 79" x 104".
Plate Length: 25"
Plate Width: 25"
Plates: 17

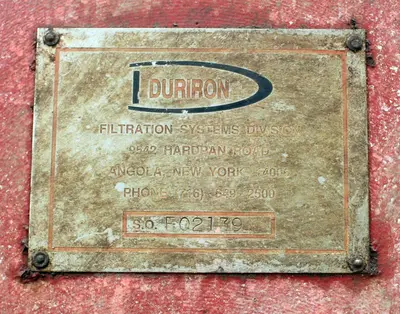

Serial No.: E02139
Size: 5 cu.ft.
