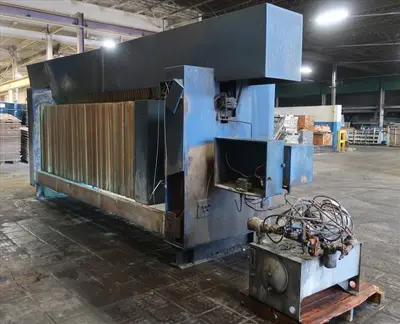

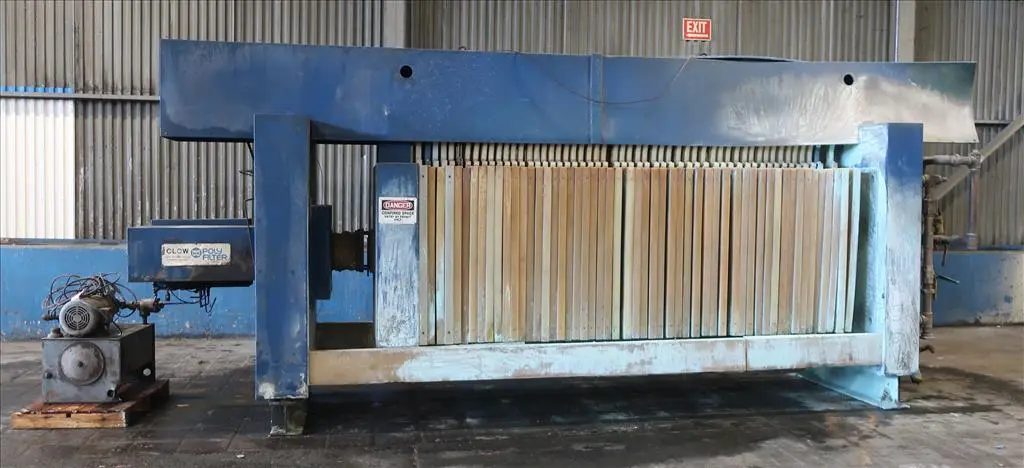

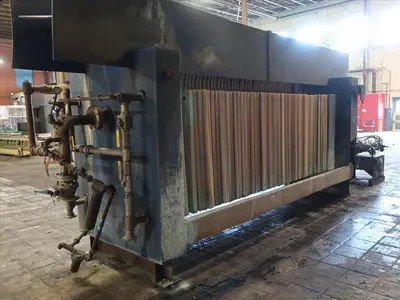

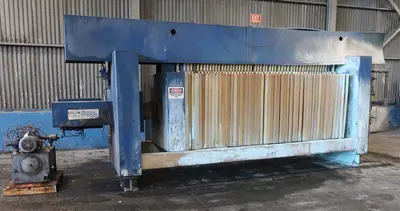

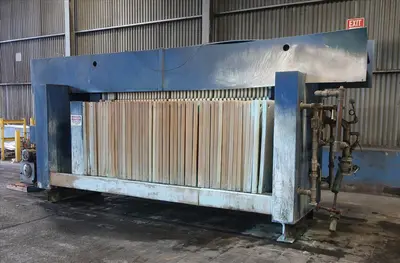

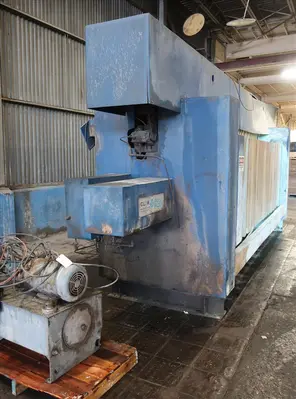

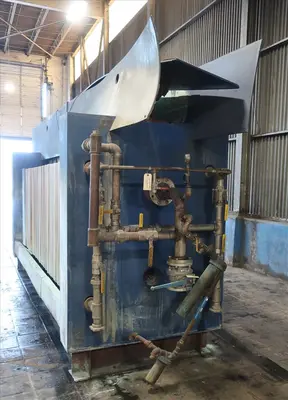

SPC8468 Filters 48 cu.ft. Clow recessed plate filter press poly

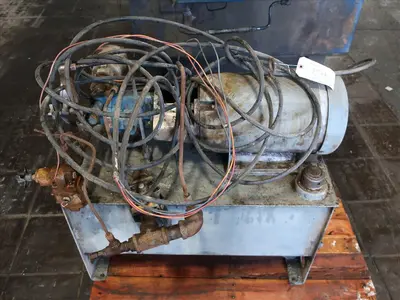

48 cu.ft. (estimated) Clow filter press. It is equiped with 53 each 1200 mm (47 5/8" x 47 5/8" x 2 1/8") non-gasketed recessed poly plates. This unit is sheathed with plastic for corrosive environments. 4" center feed with 4 each, 2" corner returns. Built in plate shifter. Hydraulic closure via a 10 hp hydraulic power unit, 208-230/460 vac 3 ph power required. Serial number 51-0645. This unit was connected to a central control panel that controlled multiple machines. The control panel is not included. Missing the plate shifter chain.

Plate Length: 47 5/8"
Plate Width: 47 5/8"
Plates: 53
Serial No.: 51-0645
Size: 48 cu.ft.
Special Comment: poly shielded frame for corrosive environments
