USED 2005 HAAS TL-2

3" Bar Capacity with A2-6" Spindle Nose

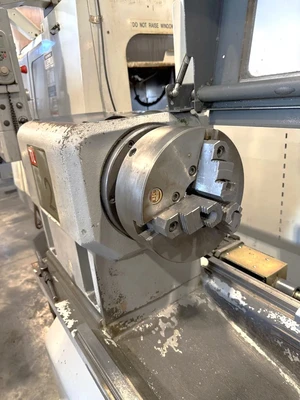

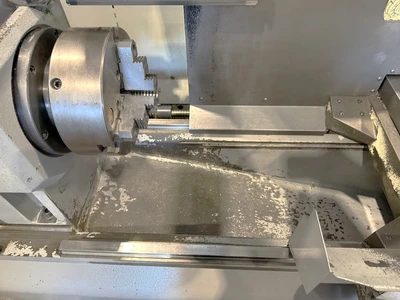

10" 3 Jaw Manual Chuck

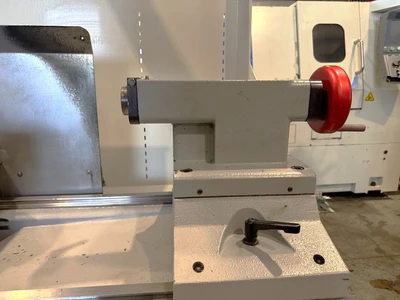

Manual Tailstock

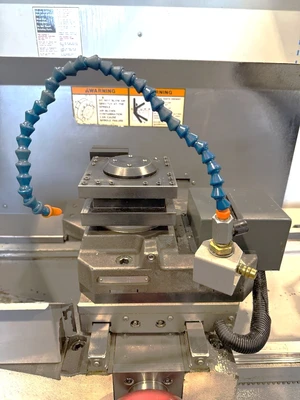

4 Station Indexable Turret
Intuitive Programming System

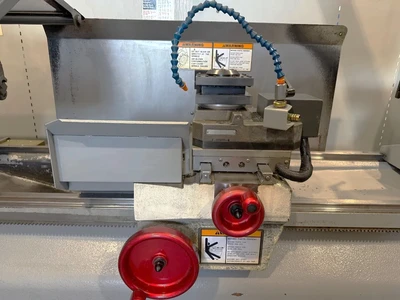

Manual Hand Wheels
Coolant Splash Cover

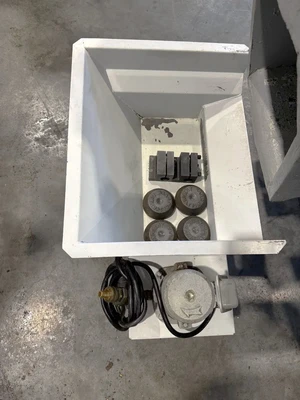

Coolant System with Tank & Pump
15" Color LCD Monitor
RS 232 Port Interface

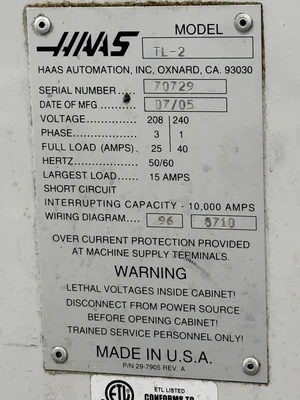

Capable of either Single or Three Phase Power
Leveling Pads

**Spindle Run Time 3,877 Hours**

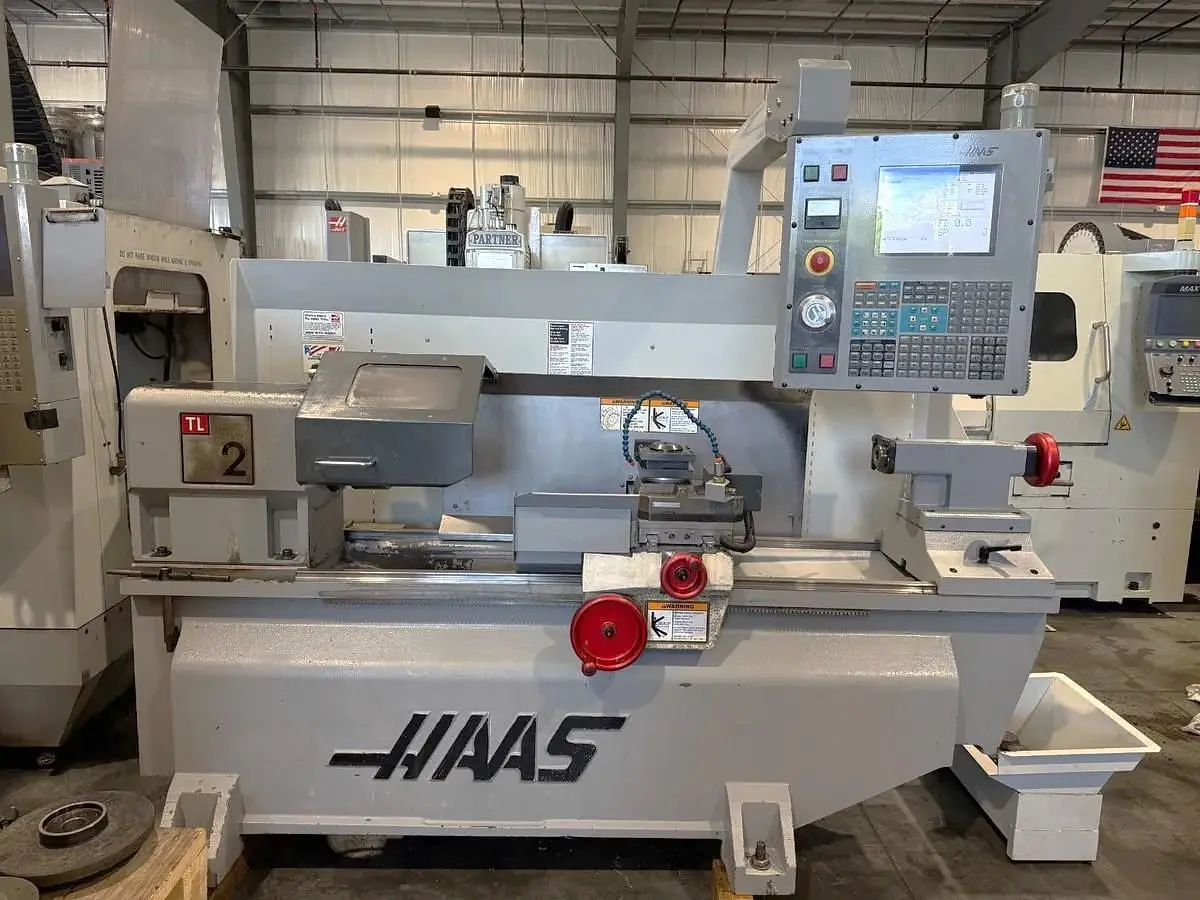

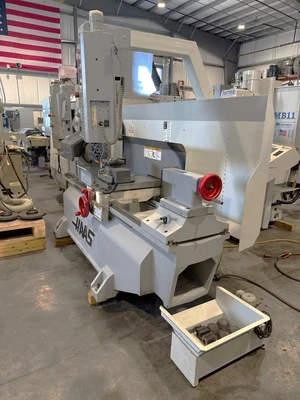

The 2005 Haas TL-2 is a versatile used CNC lathe suitable for various machining tasks. With a 10" 3-jaw chuck, it can handle workpieces with a maximum swing over the bed of 20" and a swing over the cross slide of 11". The machine's maximum cutting diameter is 16", with a generous machining length of up to 48". The TL-2 is equipped with a 4-station turret for efficient tool changes and a robust spindle system featuring A2-6" nose and a 3.0" spindle bore.

Powered by a 10 HP motor, the spindle can reach speeds of up to 1,800 RPM, and the machine supports rapid traverse rates of 450 IPM on both the X and Z axes. The X-axis offers an 8" travel, while the Z-axis provides the full 48" travel. Additionally, this lathe features a tailstock for added support and includes a coolant system for improved machining performance.

One of the notable aspects of the TL-2 is its compatibility with either single or three-phase power, providing flexibility in various shop environments. With dimensions of 109" x 69" x 83" and weighing 5,000 lbs., this CNC lathe is a substantial yet manageable addition to any machining operation.
