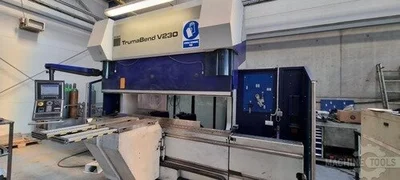

USED TRUMPF TRUMABEND V230
Overview
CNC Crowning
Hydraulic MODUFIX Tool clamping
Hydraulic lower tool clamping
CNC Finger Backgauge Z1 and Z2
6 Axis backgauge X1/X2, R1/R2 and Z1/Z2
Network card BNC-with RJ-45 Connector
ToPs 600 Software
Set Tooling

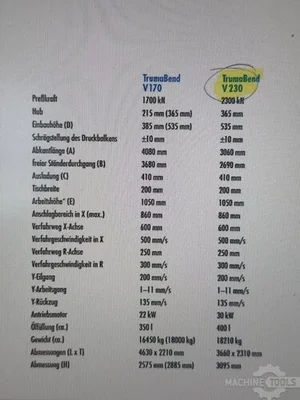

Specs
Max. bending length: 3060 mm
Distance between column: 2690 mm
Max. pressing force: 230 T
Dis. Beam - Table: 535 mm
Beam stroke: 365 mm
Table Width: 200 mm
Troth beam: 410 mm
Approch speed: 200 mm/min.
Working speed: 11 mm/min.
Return speed: 135 mm/min.
Adjustment X-Axis back gauge: 1000 mm
Number of controlled axis: 9
Crowning: yes
Hydraulic toolclamping: yes
Power: 30 kW
Length: 2310 mm
Width: 3660 mm
Height: 3095 mm
Weight: 18209 kg
