SPC5419 Conveyor Dynamic Air Conveying Systems pneumatic conveyor 304 SS, 3 hp 28 cfm @ 7 psi

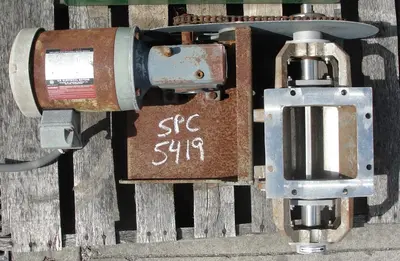

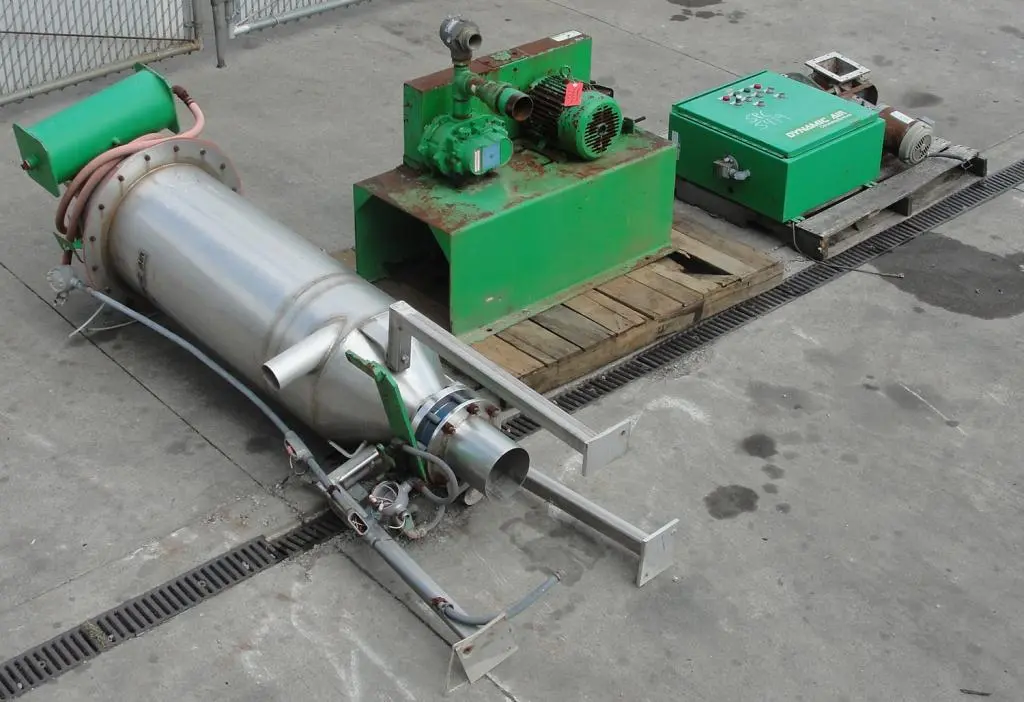

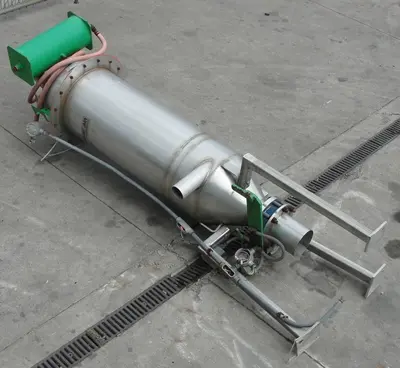

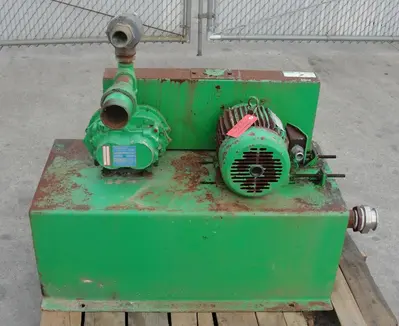

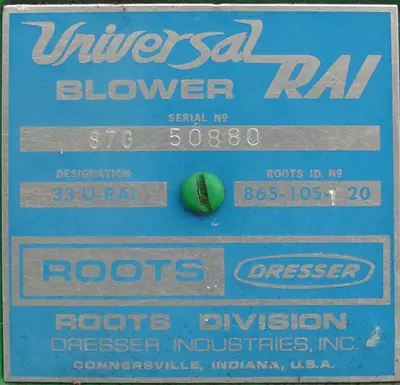

Dynamic Air Conveying Systems blower, 50 sq. ft. pneumatic transfer filter receiver, and W.M. W. Meyer & Sons rotary airlock. The Dynamic Air Conveying Systems blower is driven by a 3 hp motor. The blower is a Roots Dresser Universal RAI Blower model 33-U-RAI and is capable of an estimated 28 cfm @ 7 psi. The 50 sq. ft. Dynamic Air Conveying Systems filter receiver is 304 stainless steel and has a 3" inlet, 18" diameter top, 6.5" diameter discharge and outlet. The W.M. W. Meyer & Sons rotary airlock is constructed of 304 stainless steel. The rotor has (6) vanes. The infeed opening is 5.5" x 5.5". Airlock has a .75 hp 1775 rpm motor with a 20:1 ratio gear reducer. Requires 230/460 vac 3 phase electrical supply.

Size: 3 hp 28 cfm @ 7 psi
