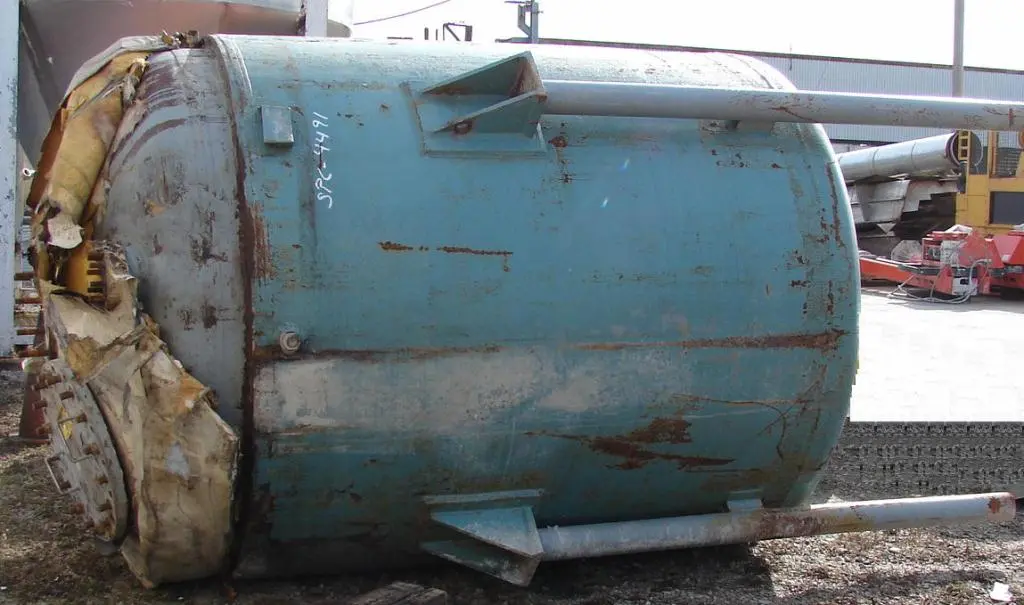

SPC4491 Tank 1,720 gallon vertical tank, Stainless Steel, dome
Overview
Description
D.E. Co. 1,720 gallon vertical stainless steel tank. National Board # 893. Serial # 6609. Internal pressure rating of 250 psi and full vacuum. Jacket has been cut into to add internal nozzle. Tank has a 68" diameter and 88" straight side height with 16" dish bottom and 16" dome top. Overall dimensions with legs and jacket are 72" diameter x 144" tall. Top has a 20" manway, a 7.5" center flanged fitting. (3) 3" flanged fittings, (5) 2" sanitary fittings and a 12" flanged fitting. Bottom has 2" threaded fitting for jacket and a 2.5" center sanitary fitting. Side has a 2" threaded fitting for jacket. Built 1966. Good condition as a pressure tank only.
Specifications
Diameter: 68
Gallon: 1,720
Height (In.): 144
National Board No.: 893
Psi Internal: 250/ full vac
