SPC5122 Tank 350 gallon vertical tank, Stainless Steel, 75PSI @700 degrees F jacket, 16" lightnin type agitator, dish
Overview
Description

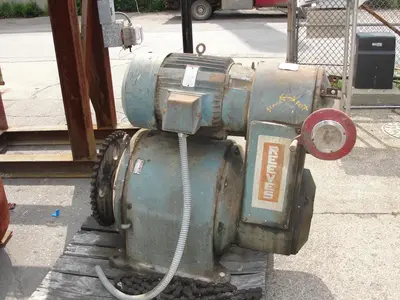

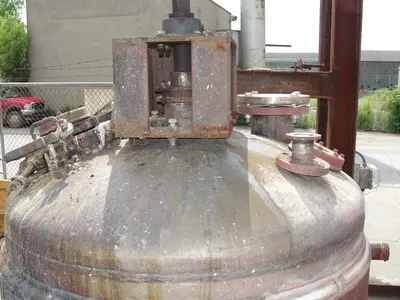

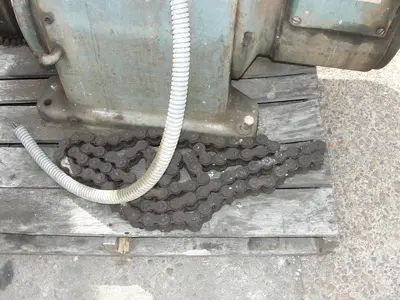

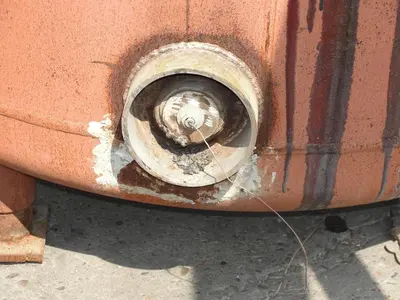

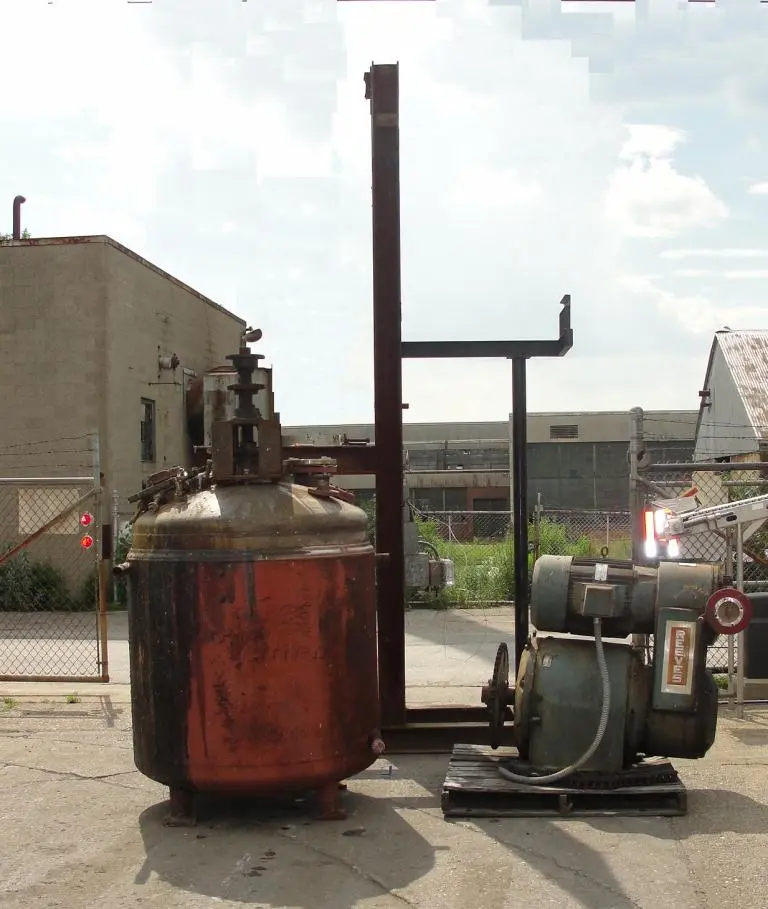

350 gallon Pflaudler stainless steel jacketed enclosed tank. Internal tank is rated for 75 PSI at 700 degrees F Tank has a carbon steel 75 PSI at 700 degree F pressure jacket with (2) 2" male NPT and (1) 2" female NPT fittings. The tank is 45" in diameter with 46" straight side height, a 5" dish bottom and a 7" dome top. Tank has (3) 2" flanges, (2) 4" flanges, (1) 7-¼ " flange and (1) 1" flange on the top. There is also a 15" x 10" manway. The bottom has a 1.5" NPT fitting and a 3" flange discharge on center bottom. The agitator is chain driven by a 10 hp Reeves mechanical variable speed drive. Motor is 1150 RPM using 220/440 3 phase electric power. The drive is mount above the tank with provide metal stand. The unit was last used in the production of hotmelt glue. . It has a 36" x 1.5" shaft with a 16" 6 blade prop. Overall height is 81". ASME # 6831 built in 1951. Fair condition.
Specifications
Agitator: 16" lightnin type
Diameter: 45"
Gallon: 350
Jacket: 75PSI @700 degrees F
Manway: 10"x 15"
Straight Side Height: 46"
