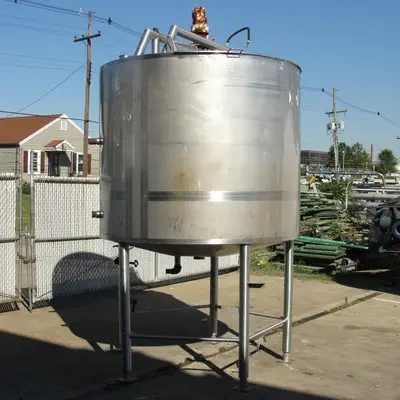

SPC6899 Tank 1000 gallon vertical tank, Stainless Steel, side scrape and paddle agitator, dish
Overview
Description

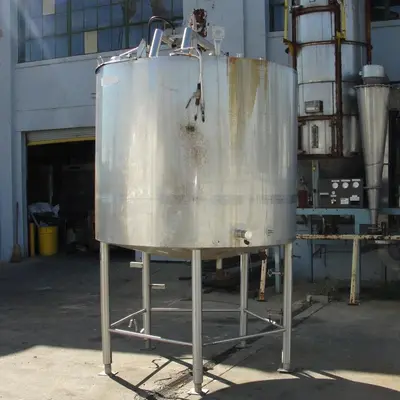

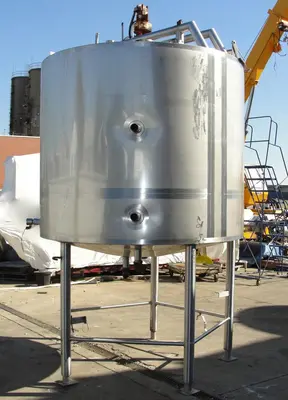

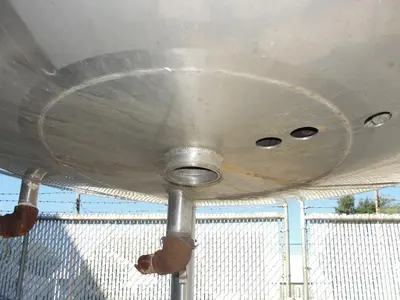

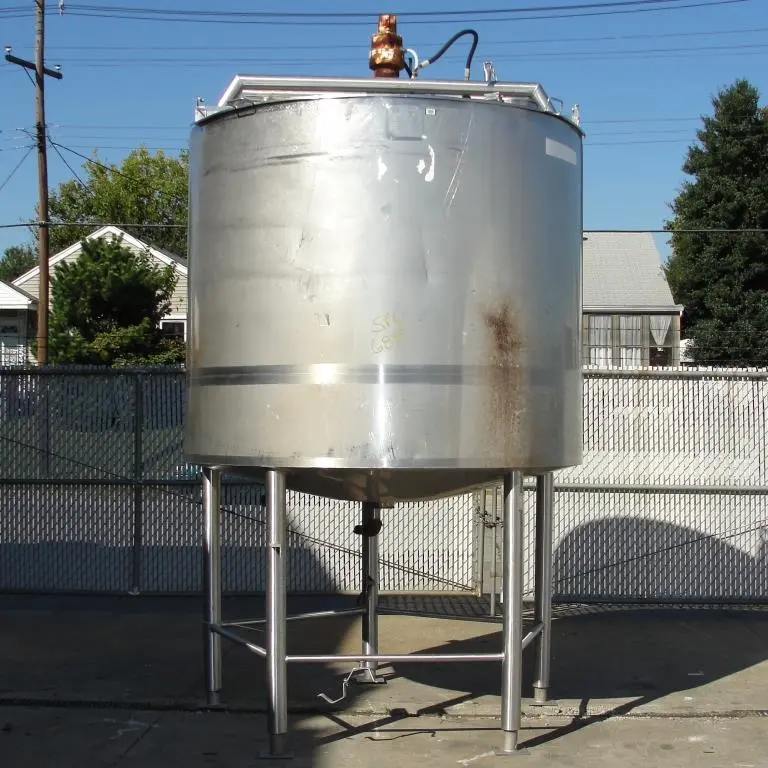

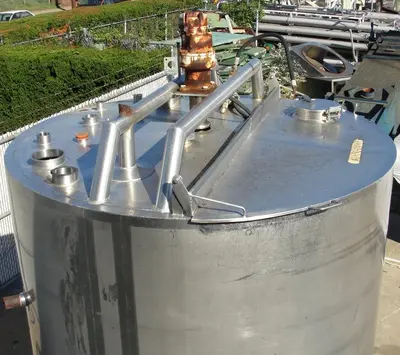

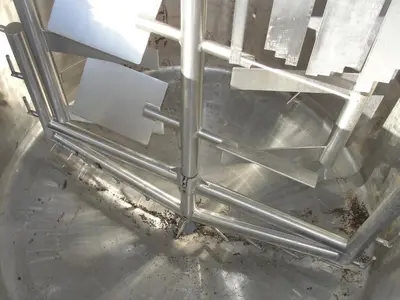

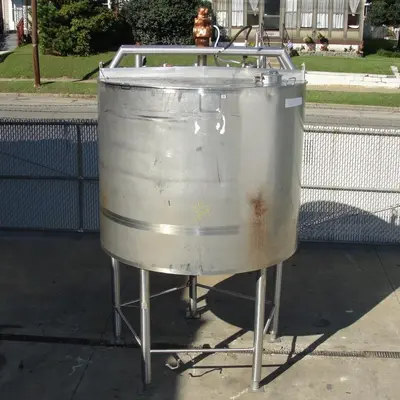

Walker 1,000 gallon vertical stainless steel mixing tank. This tank is jacketed but leaks and has a flat top and dish bottom. The diameter is 72", the overall height is 140", the straight side height is 60", and the dish bottom is 12". The top has a 1/3 hinged lid with a 9" inlet, (2) 6" sanitary Tri-Clamp inlet, (1) 4" sanitary Tri-Clamp inlet, (1) 3" sanitary thread inlet, (1) 2.5" sanitary Tri-Clamp inlet, (4) 2" sanitary Tri-Clamp inlets, (1) 1.5" sanitary Tri-Clamp inlet, and a hydraulic agitator with combination side scrape and paddle agitator. The bottom has a 3" sanitary Tri-Clamp center discharge 41" from the ground. Overall dimensions are 78" wide x 78" long x 140" tall. The mixing tank has patch work and is partially imploded in spots on the inside but it does not inhibit the agitator.
Specifications
Agitator: side scrape and paddle
Diameter: 72"
Gallon: 1000
Straight Side Height: 60"
