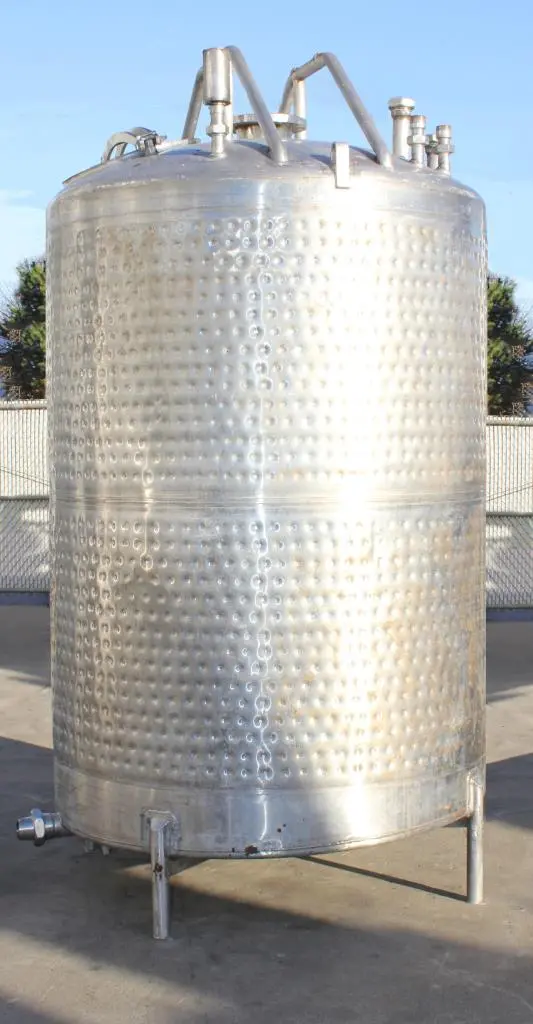

SPC7976 Tank 800 gallon vertical tank, Stainless Steel, slope

800 gallon vertical slant bottom, dome top stainless steel tank. Last used for a food product. The jacket is bad. There are 4 turns of 2.5" coils in the bottom of the tank. The tank has a bridge for an agitator but the agitator is not present. This vessel is 56" inside diameter, has an 8" dome top and 76" straight side height. It sits on 4 pipe legs and has about 7" of clearance underneath. The top has an 18" manway but the lid is missing, (1) 6" flanged connection, (3) 2" and (3) 1.25" connections. The side has a 3" drain, (3) 1.5" connections, (2) 1.5" jacket connections and (2) 1" connections. The bottom has a 1.5" and a 3/4" connection.

Diameter: 56
Gallon: 800
Manway: 18" top
Straight Side Height: 76
