SPC8141 Tank 800 gallon vertical tank, 304 SS, dish
Overview
Description

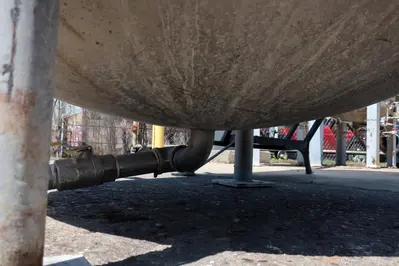

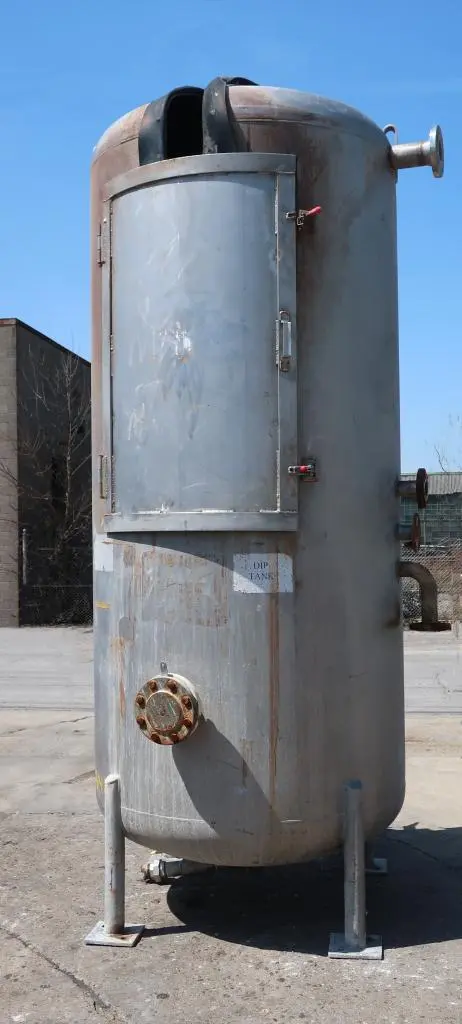

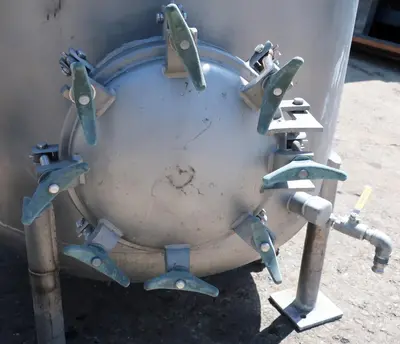

Precision Stainless 304 SS tank modified with 30" wide x 48" long hinged opening and top head slotted to the middle of the tank. Tank has National Borad and Alteration tags from Precision Stainless. These would be voided by addition of hinged door and slot. Shell is 3/16" thick 304 stainless steel. Tank built in 1984. The tank has 42" of useable tank below hinged door around 300 gallon. Top nozzles are one- 3" threaded coupling with cap, and one-1" threaded coupling. Bottom has one- 3" elbow with fittings. Side has one- 16" hinged manway, one- 4" LJ flange with blind,one 3" RFSO flange, three- 3" CS flanges, one-2" threaded pipe nipple with cap,two 1" threaded couplings, one-3/4" threaded coupling, and one- 1/2" pipe nipple with threaded cap. Last used as a dip tank.
Specifications
Diameter: 48"
Gallon: 800
Manway: 16" hinged
Straight Side Height: 99"
