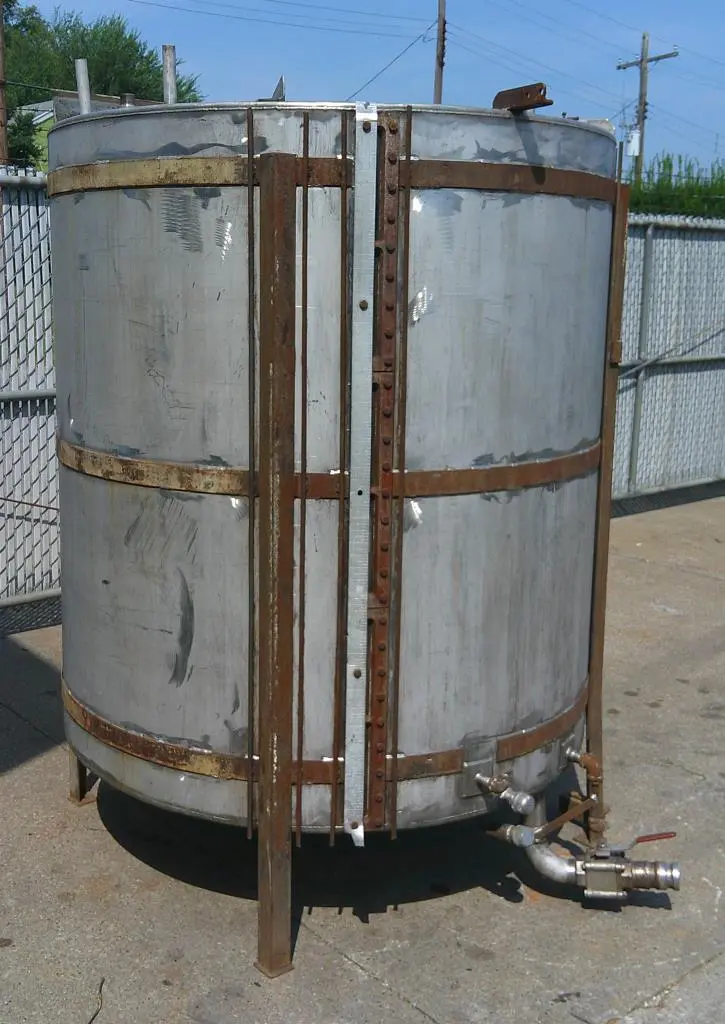

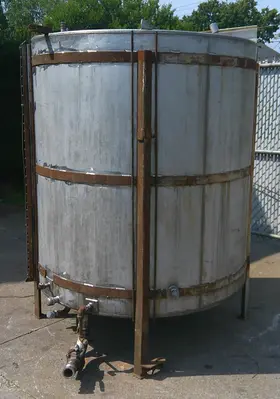

SPC9084 Tank 575 gallon vertical tank, Stainless Steel, flat set of coils in bottom

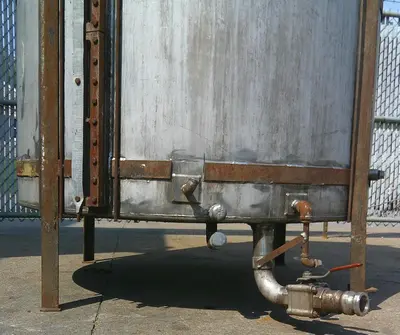

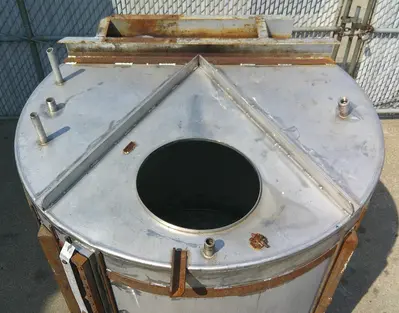

575 gallon vertical stainless steel tank. Tank has a total height of 76" with angle legs, 54" diameter, and a 58" straight side. Tank has channel for top-mounted agitator with a 4.5" opening for agitator. Tank has sight gauge to measure volume. Inside bottom of tank has 1" steam coils. Tank has (2) 1" inlet and (1) 0.75" inlet on top, (1) 2" outlet and (1) 1.5" outlet on bottom, and (1) 1.5" inlet on the side.

Diameter: 54"
Gallon: 575
Manway: 16" manway in top
Straight Side Height: 58
Special Comment: set of coils in bottom
