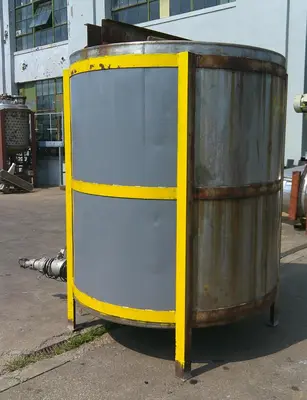

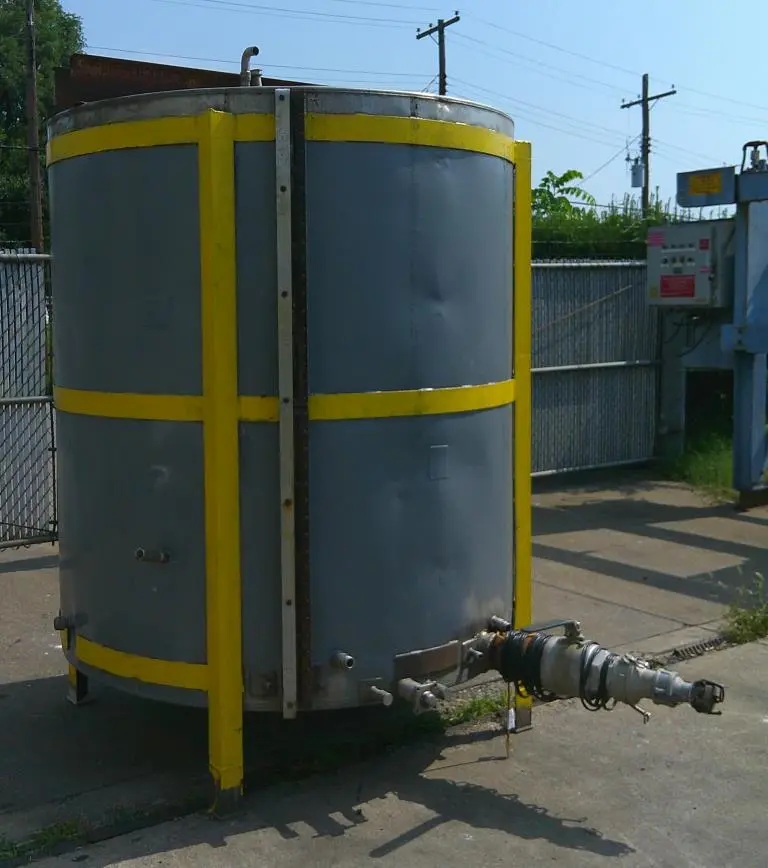

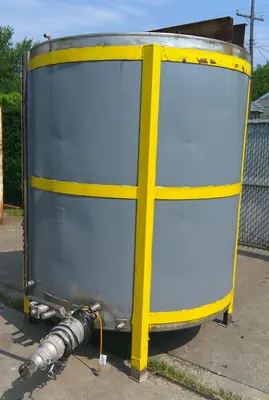

SPC9083 Tank 1000 gallon vertical tank, Stainless Steel, flat coils in bottom

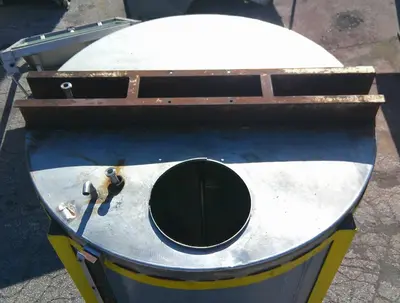

1000 gallon vertical stainless steel tank. Tank has a total height of 92" with angle legs, 64" diameter, and a 72" straight side. Tank has channel for top-mounted agitator with a 4" opening for agitator and a 16" manway on top. Tank has sight gauge to measure volume. Inside bottom of tank has two sets of steam coils. Tank has (2) 1.25" inlet and (2) 1" inlet on top, (1) 1.25" outlet on side, (3) 1.5" inlet on the side(one has welded on cap) and one 4" nozzle with 4" ball valve with hose fitting.

Diameter: 64"
Gallon: 1000
Manway: 16" manway in top
Straight Side Height: 72
Special Comment: coils in bottom
