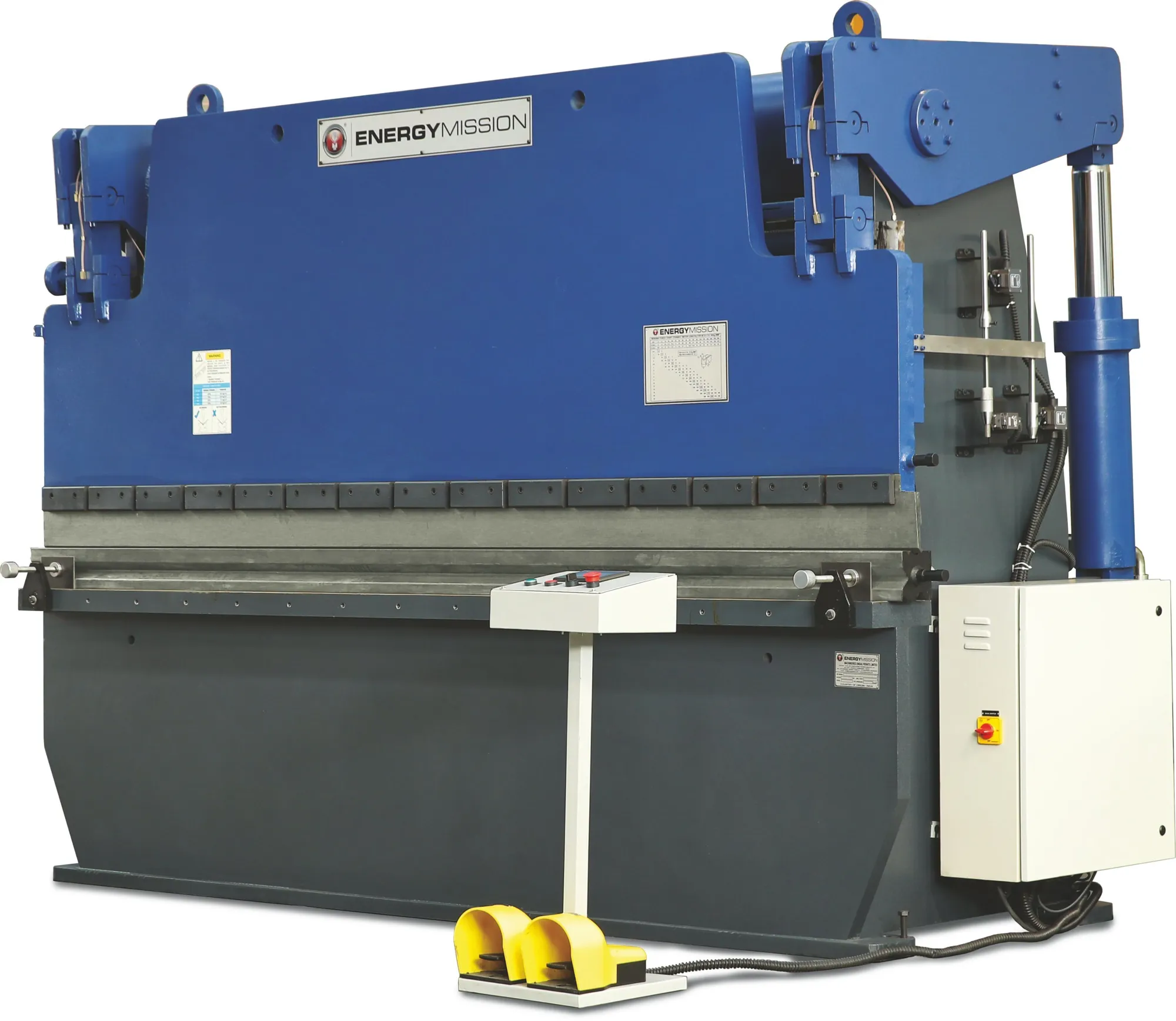

NEW ENERGY MISSION PBR 6050

HYDRAULIC
PRESS BRAKE

RANGE / LENGTH
30 MT to 600 MT
1250 mm to 8000 mm

SALIENT FEATURES

- The stable robust welded steel Frame made of ultrasonically and tensile tested IS 2062 plate as per guidelines of IMTMA standards
- Fast approach & fast return speed to save cycle time, slow pressing speed for better stroke control & bending accuracy, ensures high productivity
- Repeatability for ram position ± 0.05mm
- Compact cylinders & low pressure system due to rear cylinders. Also it gives better rigidity & load carrying capacity against fatigue failure
- Positive synchronisation of cylinders with welded torque tube gives better bending accuracy on both ends
- Moving work station with manual, single cycle & automatic mode for easy operation with emergency stop button
- NC upgradation possible on site
- All electrical & hydraulic component from reputed make
- Hydraulic Cylinders made from seamless honed tube, hardened & grounded chrome plated piston rod fitted with twin type zero leak PU Seals
- Suitable for upgradation with special optional features
