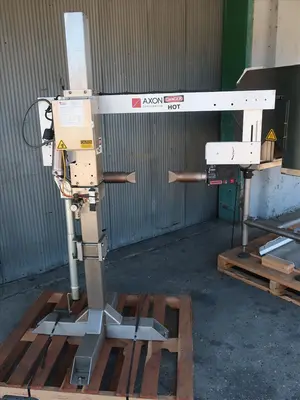

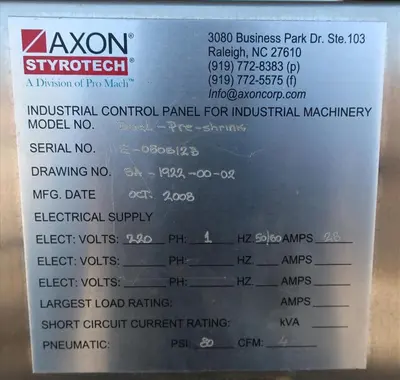

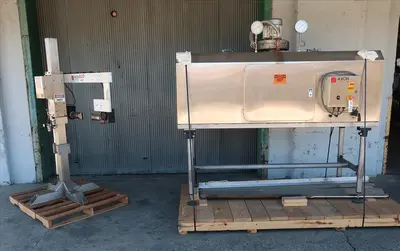

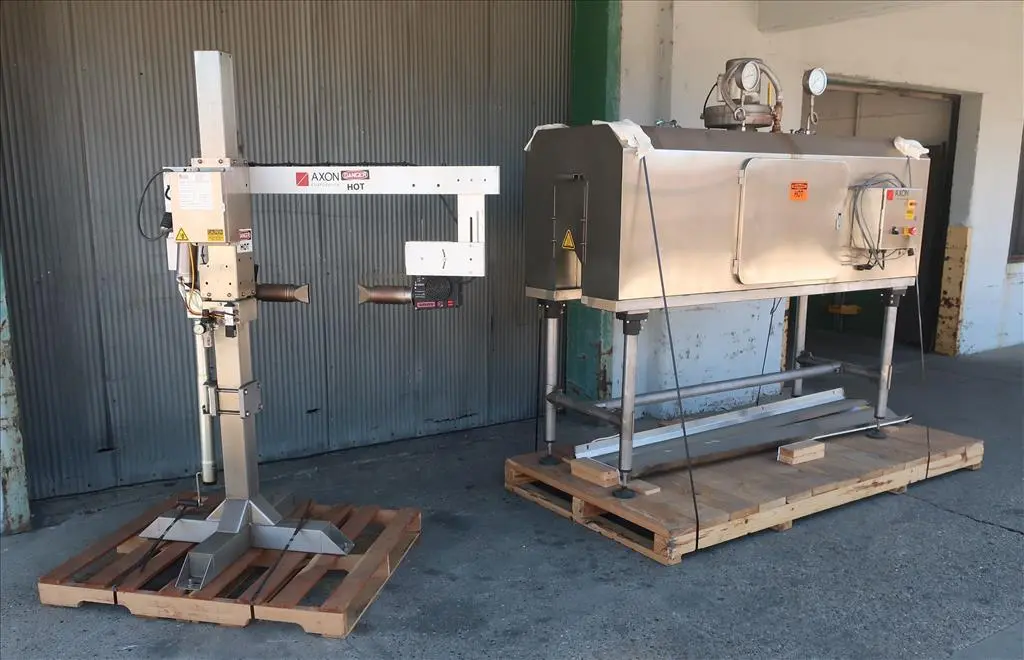

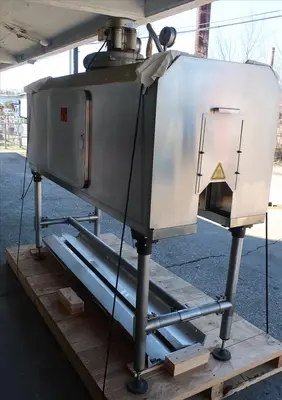

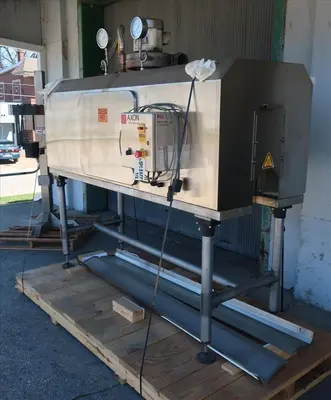

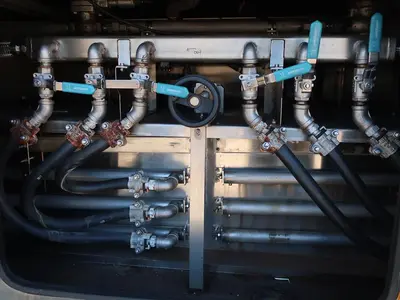

Used Axon Steam Shrink Tunnel, Model EZ-80-HSS. Stainless steel construction. Unit comes with Axon dual electric IR pre shrink.The pre shrink requires 220 vac 1ph 28 amps electric power. Unit has 6.5" wide x 12.5" high standard tunnel opening.The high size is adjustable. The width is the width inside the machine. Heat tunnel is 6" wide x 10" high 6' long tunnel. Steam pressure is set for 50 psi in and 2.2 psi out. Heat tunnel voltage required is 230 vac, 50/60 Hz, Amps 10. Stand on four stainless steel legs. Last running 4" dia x 5.5" cans at 48 fpm. Overall dimensions: 4' x 8' x 80"h and 64" x40" x 78" h. Designed to mount over an existing conveyor. New Oct. 2008
Power Required: 230 vac 1 ph

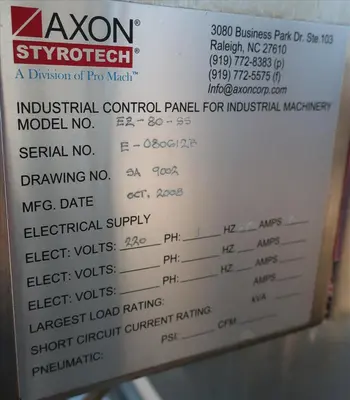

Serial No.: E-080612B
Speed: up to 48 fpm
Work Opening: adjustable up to 6"w x 12.5" h
Special Comment: Includes electric IR pre shrink
