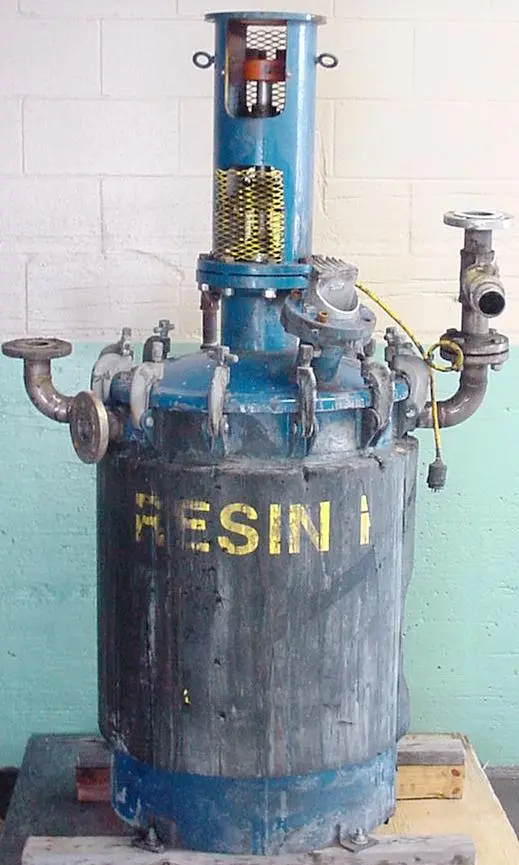

75 gallon Silvan Industries 304 stainless steel reactor. The lid on the reactor is epoxy coated carbon steel. National Board #11607. The jacket is rated for 50 psi @ 250° F and the internal rating is 110 psi @ 250° F. The shell thickness is .187" and the head thickness is .094". The vessel measures 36" high x 24" in diameter. On the top are (2) 1.5" flanged connections. On the top side there are (3) 2.5" threaded connections and (1) 1.5" threaded connection. On the bottom there are (1) 1" threaded connection, (1) 1.5" threaded connection, and a 2.5" threaded bottom center discharge. On top is a sight glass with 120 vac 1 phase light. Reactor has a top mounted dispersion type agitator with the motor missing. This unit was built in 1989.
Diameter: 24
Gallon: 75
Height (In.): 36
National Board No.: 11607
Psi Internal: 110
Psi Jacket: 50
Temperature Internal (F): 250
Temperature Jacket (F): 250
