SPC2557 Reactor 350 gallon Resun Manufacturing Co. chemical reactor, 15 psi internal, 60 psi jacket
Overview
Description

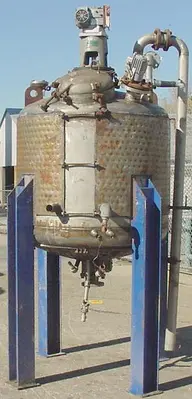

Resun Manufacturing Co 350 gallon reactor. National Board # 1236. Serial number 4145A. Reactor has an internal pressure rating of 15 psi @ 150° F and a jacket pressure rating of 60 psi @ 150° F. The diameter is 48", the straight side height is 34", and the dishes are 10" with an overall height is 120". This unit has a Mueller clamp on type jacket. On the side it has (2) 2" threaded steam connections and (4) 1" threaded connections. On the top it has a 16" manway, (2) 3" flanges, (1) 2" flange, (5) 1" threaded connections, (4) 2" threaded connections, and has a 3" bottom center discharge. Reactor also has a 120 v illuminator and a Mixmor agitator with a 2 hp motor that is tagged for hazardous locations. The agitator turns at 86 rpm. This unit was built in 1989. Requires 208-230/460 vac 3 phase electrical supply. Good condition.
Specifications
Diameter: 48
Gallon: 350
Height (In.): 38
Psi Internal: 15
Psi Jacket: 60
Temperature Internal (F): 150
Temperature Jacket (F): 150
