SPC4381 Reactor 200 gallon Mueller chemical reactor, 50 psi internal, 150 psi jacket, 1 hp agitator
Description

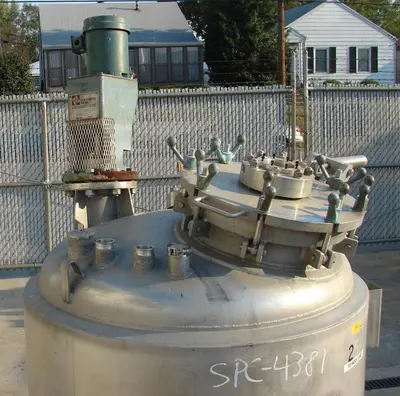

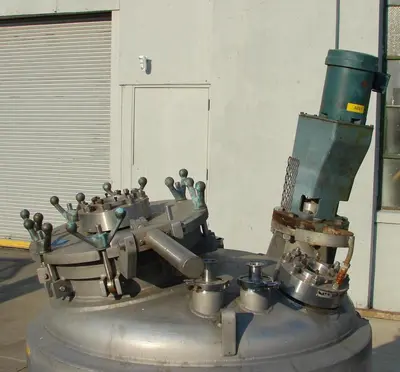

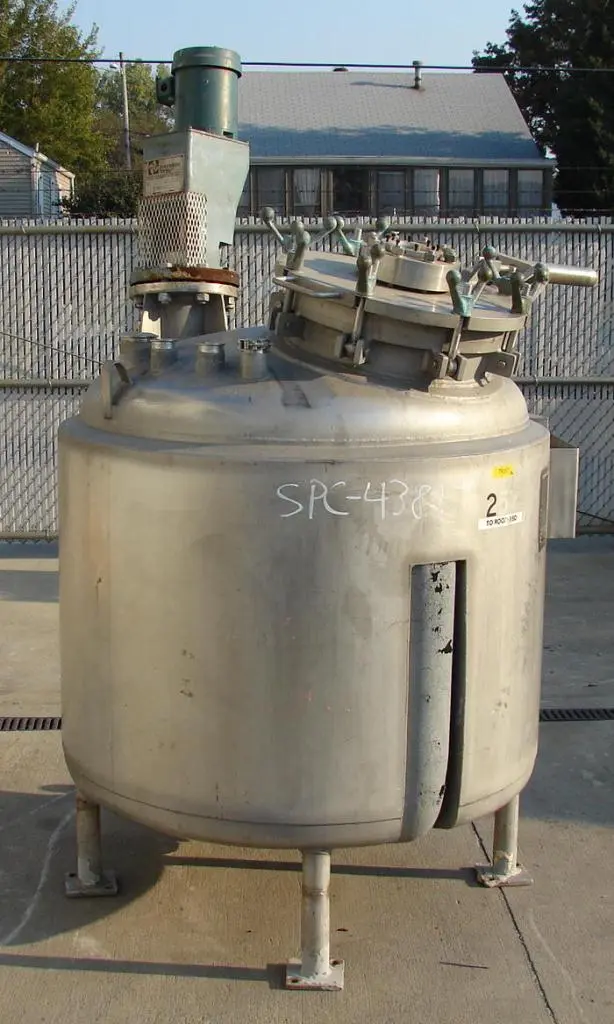

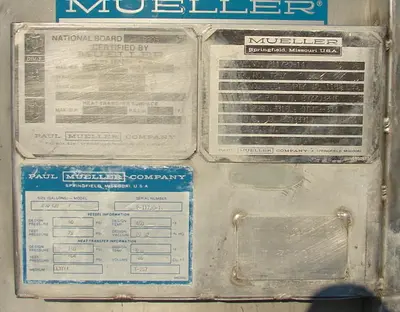

Paul Mueller 200 gallon 304 stainless steel Reactor. Serial # P11720-14. National Board # 9905. Internal is rated for 50 psi @ 450 f. The jacket is rated a 150 psi @ 450 f with a glycol medium. Shell is also rated for full Vacuum. The tank is 36" in diameter with 32" straight side height and 8" dish bottom and dome top. Agitator is a 3 blade prop type with a 200 rpm Philadelphia 1 hp motor drive. The top has a 18" manway cover with pnuematic assist and glass view port. Top also has (3) 2" sanitary fittings, (3) 3" sanitary fittings and a 6 flange fitting with a glass view port. The bottom has a 2" sanitary center discharge. The side has 3" flange fittings (currently covered with a blind flange). Requires 230 vac 3 ph electrical supply. Built in 1984. Good Condition.
Specifications
Agitator: 1 hp
Gallon: 200
Psi Internal: 50
Psi Jacket: 150
Temperature Internal (F): 450
Temperature Jacket (F): 450
