SPC8049 Reactor 125 gallon Pfaudler chemical reactor, 55 psi internal, 80 psi jacket, agitator
Description

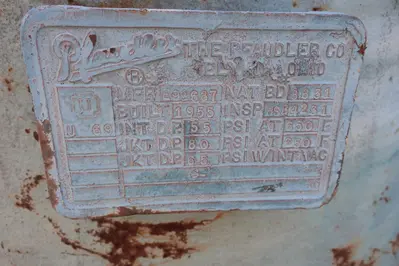

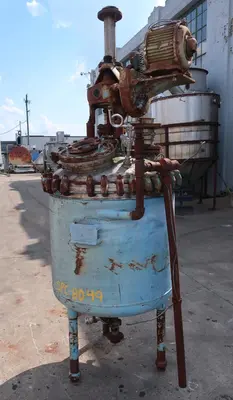

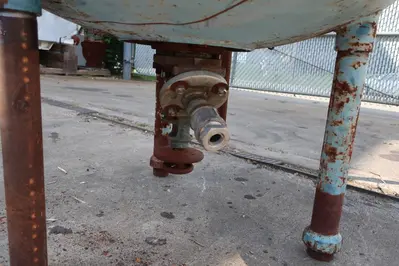

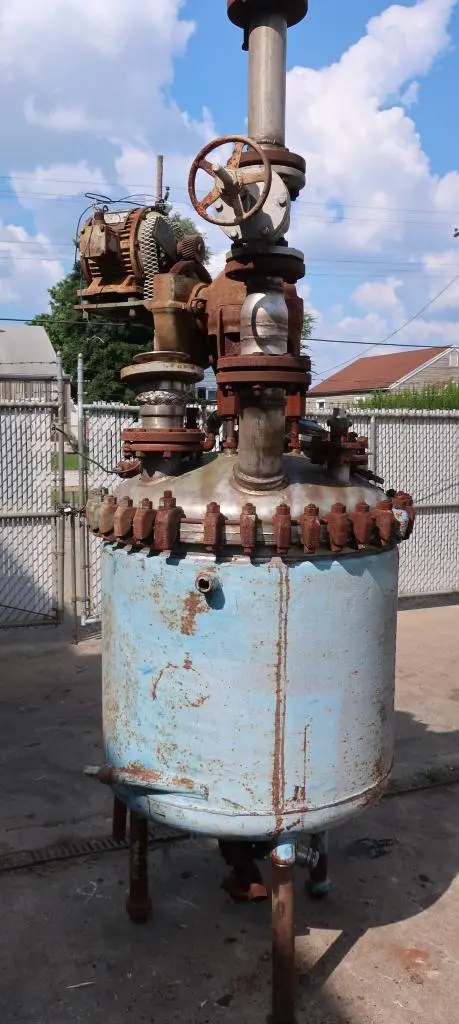

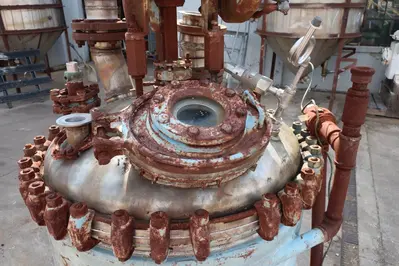

125 Gallon PFAUDLER Stainless Steel tank with Carbon Steel Jacketed Reactor with what appears to be a PFAUDLER Agitator. The top head is removable. The vessel measures 32" high straight side x 34" in diameter. National Board #8631. Internal Pressure 55 psi @ 650°. The jacket is rated for 80 psi @ 650° F and W/INT. Vacuum. Agitator motor is 3hp , rpm 1750, 220/440 phase 3, Motor is rated for hazardous duty. The top center has a 2” fitted lap joint flange for mounting agitator, two-4” lap joint flange, two 2" nozzles, one 2" threaded coupling, and one 12" x 9" elliptical hinged lid Manway with 6” sight glass in the lid. Manway missing hold down clamps. Jacket has two tangential threaded pipe stubs, one, 2" threaded coupling and one 2" threaded pipe stub.
Specifications
Gallon: 125
National Board No.: 8631
Psi Internal: 55
Psi Jacket: 80
Temperature Internal (F): 650
