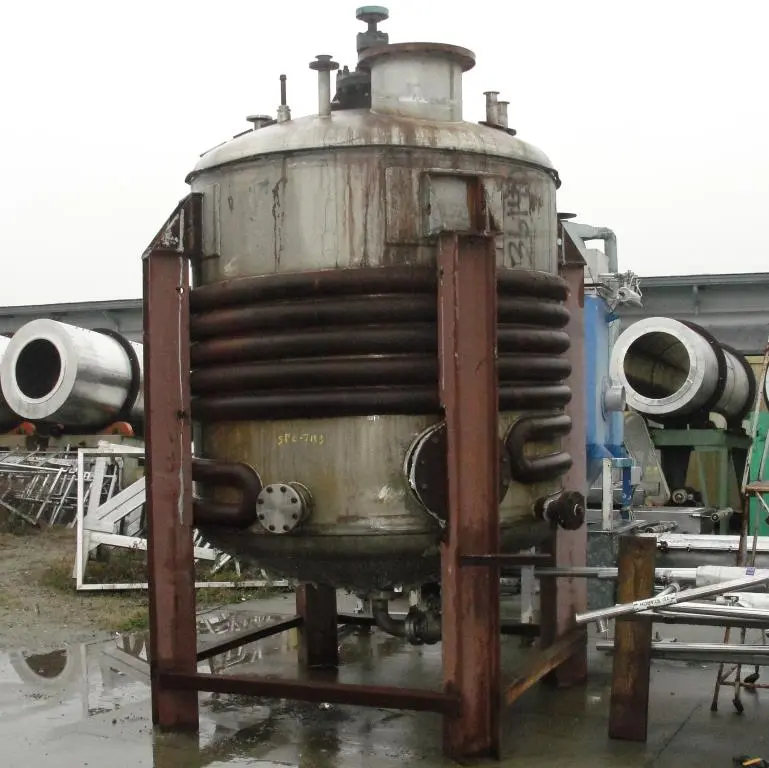

SPC7193 Reactor 1500 gallon Alloy Craft chemical reactor, 132 psi internal

Alloy Craft 1500 gallon stainless steel reactor. The vessel has a 72" diameter x 72" straight side height with 10" dish bottom and 10" dome top. The reactor has a 4" carbon steel half tube external jacket with 2" inlet and outlet. The jacket has no rating. The internal pressure is rated at 132 psi @ 300° F. National Board # 2749. The top has a 16" diameter flange fitting, (2) 1.5" flanged fittings, a 6" flanged fitting, and an agitator drive. The side has a 12" blanked flanged fitting and a blanked 6" flanged fitting. The bottom has a 2" center discharge. The walls of are 7/16" thick. Serial number is 11562. Built in 1977. Fair condition.

Diameter: 72"
Gallon: 1500
Height (In.): 92"
National Board No.: 2749
Psi Internal: 132
Temperature Internal (F): 300
