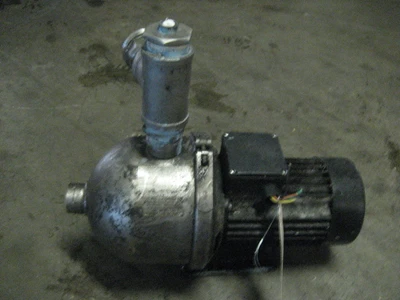

The Grundfos CHI4 - 50 non-self-priming, horizontal, multistage centrifugal pumps. Equipped with ML 8 Motor. The volumetric flow is up to 24 GPM. Inlet and Outlet of 1 ¼ “diameter . The impeller has an overall diameter of 7 ½ “. The maximum operating pressure is 10 bars. The required voltage is 208-230/ 460 vac Phase 3. The rated current is 6.2/3.1 and the maximum current 6.9/ 3.5. The total weight of this pump is 59 lbs.
Hp: 1.5
Impeller Size (In.): Overall Diameter 7 1/2"
Inlet: 1 1/4"
Outlet: 1 1/4"
Size: 15 1/2 " OAL x 17 1/2" OAH
