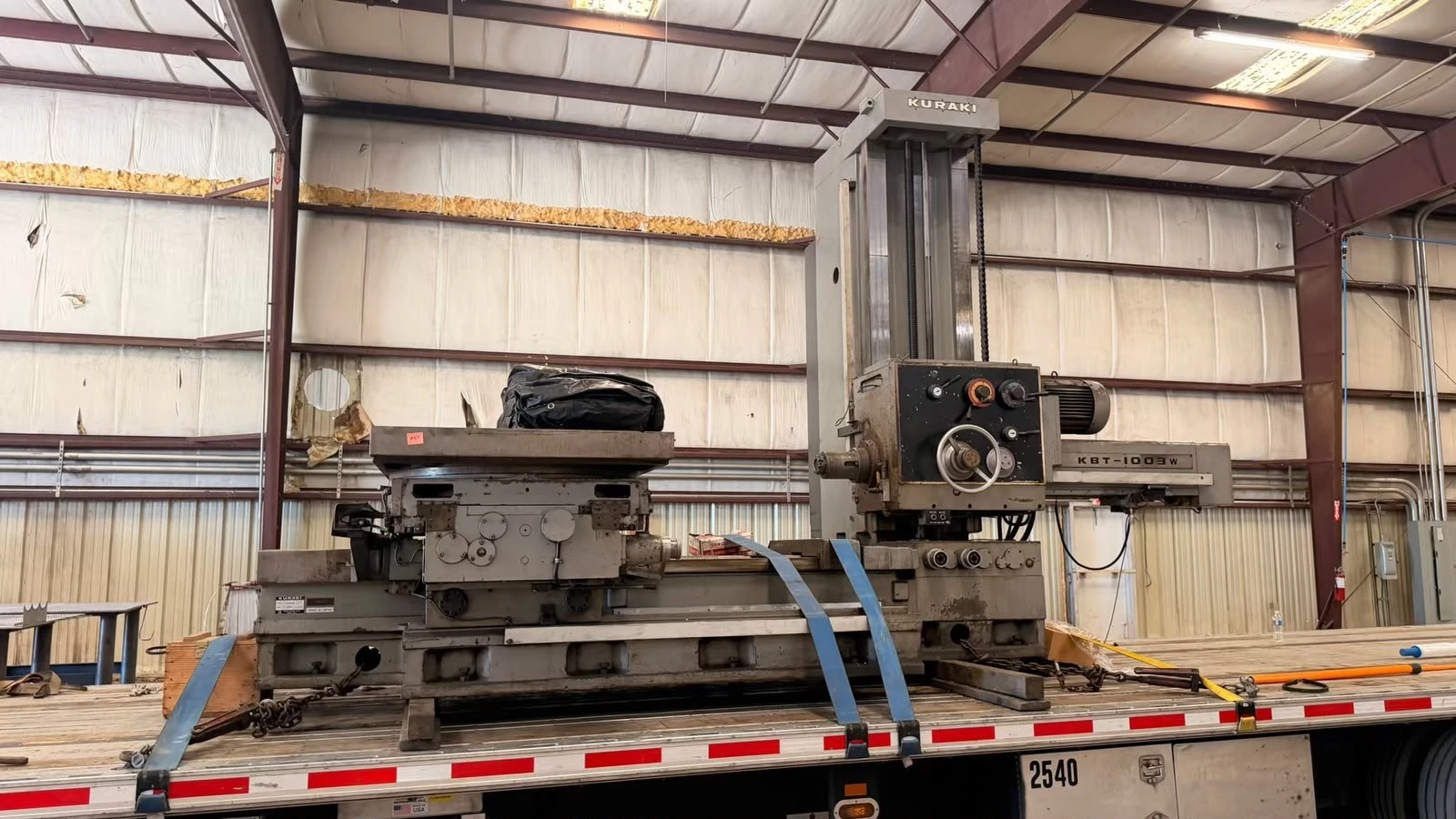

USED 1980 Kuraki KBT 1003W

KURAKI TABLE TYPE HORIZONTAL BORING MILL

MODEL: KBT-1003W, S/N: 9257, NEW: 1980

SPECIFICATIONS:

SPINDLE DIAMETER ........................ 4"

SPINDLE TRAVEL .......................... 27.6"

SPINDLE HEAD VERTICAL TRAVEL ............ 49.2"

TABLE WORKING SURFACE (BUILT IN ROTARY) . 41.3" X 47.2"

TABLE CROSS TRAVEL ...................... 59"

TABLE IN AND OUT TRAVEL.................. 47.2"

MAXIMUM WEIGHT ON TABLE ................. 8,800 LBS

SPINDLE SPEEDS (16 SPEEDS) .............. 17 TO 1,200 RPM

BORING FEED RANGE (16) .................. 0.001 - .2 IPR

MILLING FEES (16) ....................... 0.25 - 48 IPR

SPINDLE TAPER ........................... 50 STD.

MAIN SPINDLE MOTOR ...................... 15 HP

APPROXIMATE MACHINE SIZE:  208" FB, 120" WIDE, 124" TALL

APPROXIMATE MACHINE WEIGHT: 36,300 LBS

EQUIPPED WITH:

 * 50 TAPER POWER DRAW BAR

 * HARDENED WAYS ALL AXIS

 * FOURWAY BED

 * FULL PENDANT CONTROL

 * DIGITAL READOUTS

 * BUILT IN ROTARY TABLE

 * 15 HORSE POWER SPINDLE DRIVE

 * TAILSTOCK AVAILABLE AT ADDITIONAL COST

INSPECT UNDER POWER IN A MIDWEST WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
