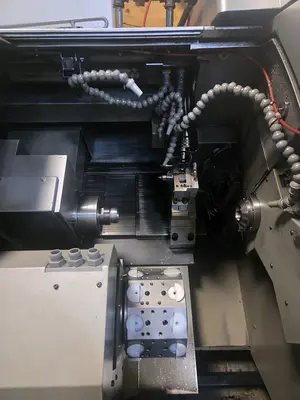

USED 2006 Citizen M32V
Overview

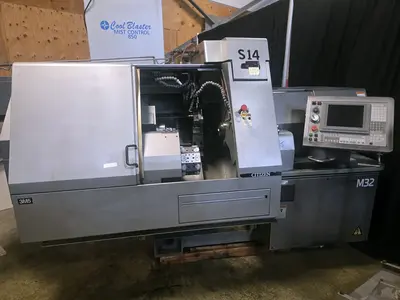

Used Citizen M32-V CNC Swiss Type Screw Machine 2006, designed for high-precision turning of complex, small-diameter parts from bar stock. Ideal for medical, aerospace, automotive, electronics, and hydraulic applications, delivering accuracy, efficiency, and reliable high-volume production.
Specs
# Axis: 9-Axis
Machining Diameter: 1.25"
Machining Length - Chucking: 12.59"
Backworking - Chuck Diameter: 1.25"
Backworking - Work Length: 5.8"
X1 Axis Travel / X2 Axis Travel: 0.75" / 0.75"
Y1 Axis Travel: 1.0"
Z1 Axis Travel / Z2 Axis Travel: 4.92" / 12.6"
C Axis Movement C1 / C2: .001 Degree / 1 Degree
Main Spindle Speed: 8,000 RPM
-4 digits stepless command (10hp peak / 5hp continuous):
Back Spindle Speed: 7,000 RPM
-4 digits stepless command (5hp peak / 2hp continuous):
Rotary Tool Spindle Speeds:
Gang Tool Post: 5,000 RPM
Turret Speed: 5,000 RPM
Live Tool Spindle: ER16
Turning Holders: 5/8” Shank and ¾” Shank
Spindle Motor: 7.5 HP
Back Spindle Motor: 3 HP
Rotary Tool Motor - Turret: 2 HP
Rotary Tool Motor - Gang Plate: .5 HP
Backworking-Drilling/Tapping: M8 (.39")
Number of Tools - Turret: 10 Tools (20 in 1/2 index)
Number of Tools - Gang Style: 5 Turn / 3 Rotary
Number of Tools - Back Work Tool Post: 3 + Rear Facing on Turret
Main Spindle Chuck Unit: TF37
Back Spindle Chuck Unit: TF37
Synchronous Guide Bushing Unit: TD32
Machine Dimensions: 110" x 50" x 69"
Machine Weight: 6,900 lbs.

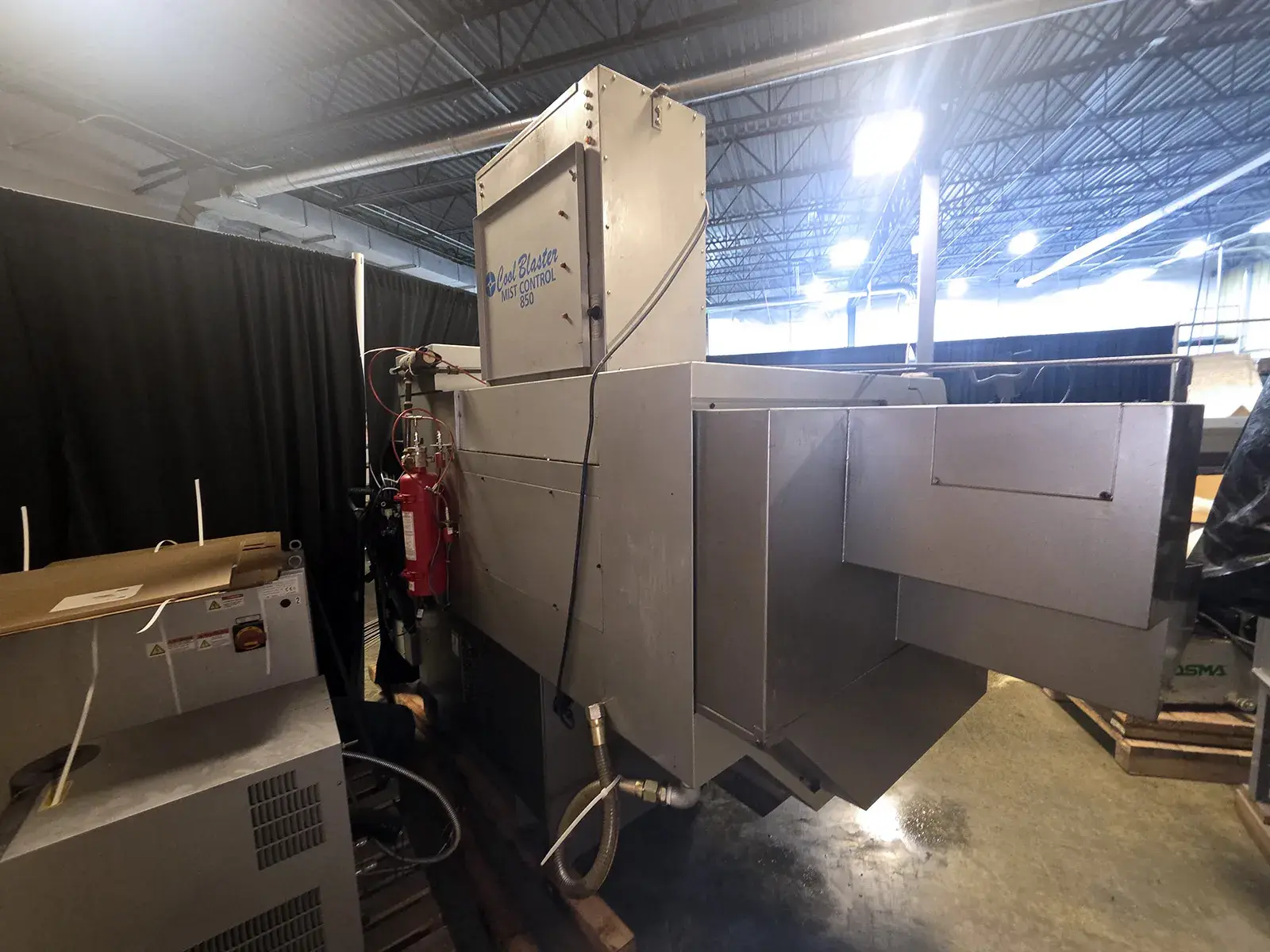

Equipped With

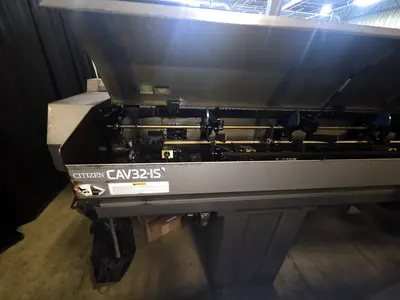

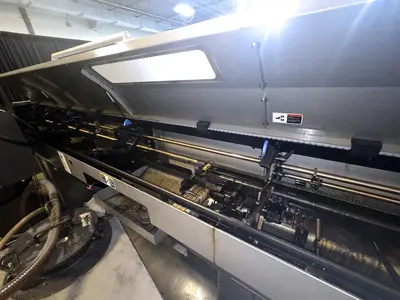

Cav 32IS Barloader
High Pressure Coolant

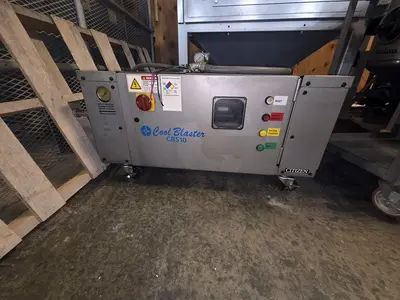

Cool Blaster

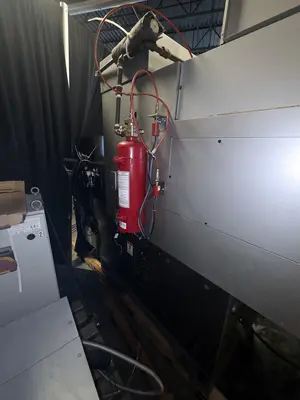

Fire Suppression Misc tooling as seen in pictures (all to be verified by buyer)
