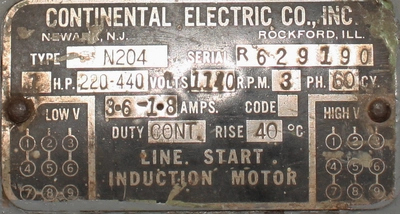

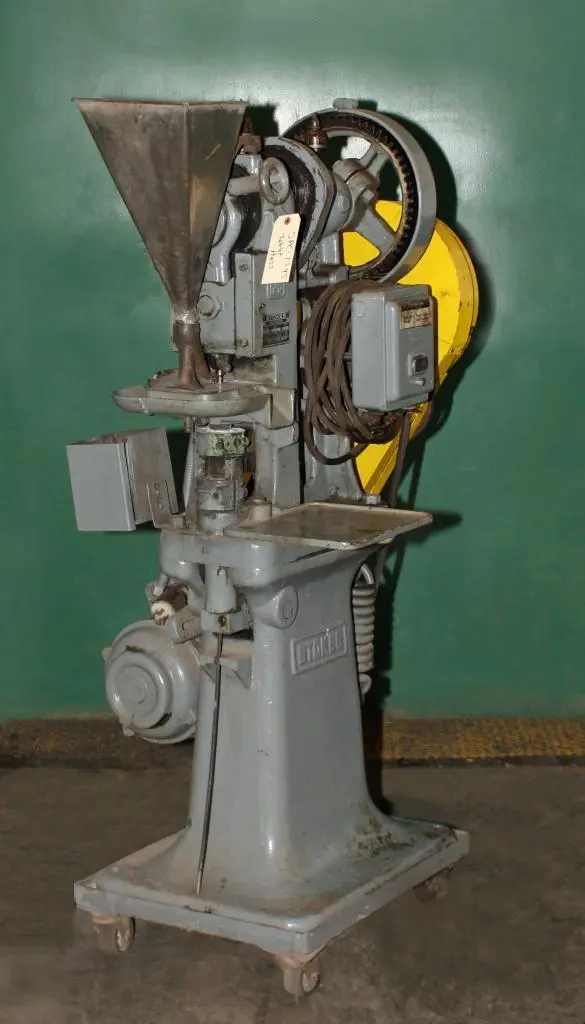

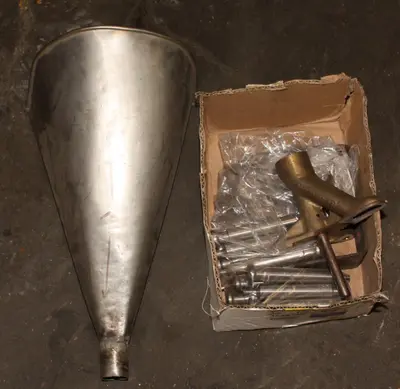

Stokes Model F is primarily used for pharmaceutical tableting but can also be used for powder metal processing and other industrial tableting. It has core rod support and variable speed pulley drive. Tablet press has a 4 ton compression force, a 3/4" maximum tablet diameter, and an 11/16" maximum depth of fill. The press is rated 60 up to 95 tablets/minute. Includes 2 stainless steel hoppers and an assortment of other boxed tools and dies. It is on castors. Serial #11. It is driven by a 1 HP, 1140 rpm motor. Requires 220/440 vac 3 phase electrical supply. Overall size 36” x 36” x 60”.

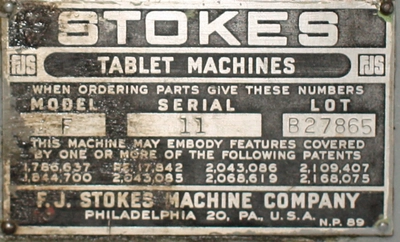

Serial No.: 11
Stations: 1
Ton: 4
Tablet Size: 3/4" dia. x 11/16" dep.
