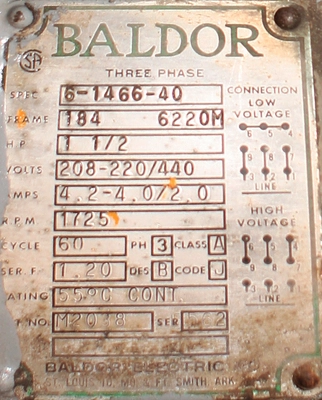

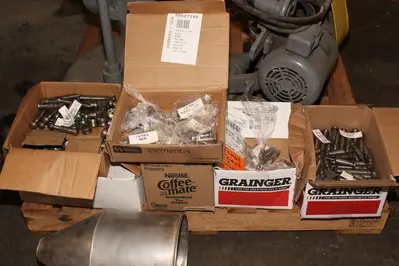

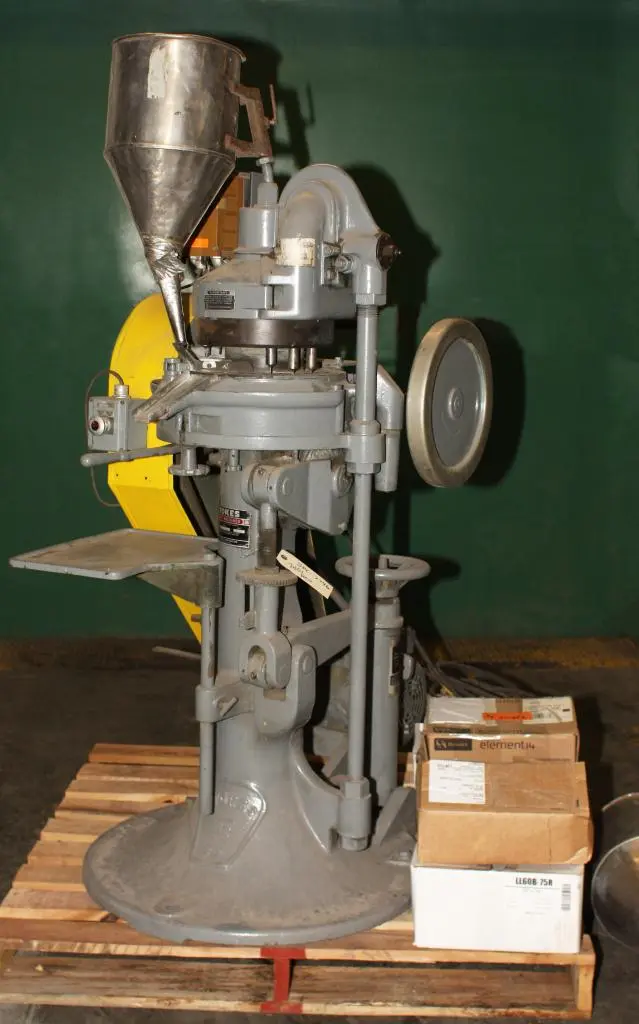

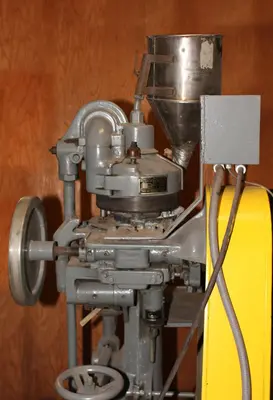

Stokes 16 station model 512-1 is a heavy-duty press with a two-piece rotary head that provides clean operations and good tablet quality. Tablet press has a 4 ton compression force, a 5/8" maximum tablet diameter, and a 11/16" maximum depth of fill. The press is rated 400 up to 1200 tablets/minute. Includes 2 stainless steel hoppers and an assortment of other boxed tools and dies. Serial #T40552. It is driven by a 1 1/2 HP, 1725 rpm Baldor motor. Requires 220/440 vac 3 phase electrical supply. Overall size 30” x 36” x 66”. Last used by in a product development lab by a chemical company.

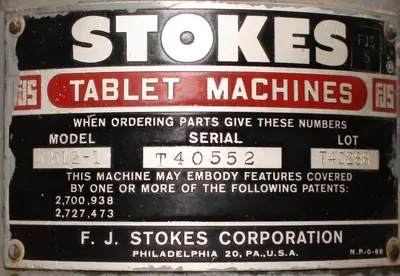

Serial No.: T40552
Stations: 16
Ton: 4
Tablet Size: up to 5/8" dia. X 11/16" deep.
