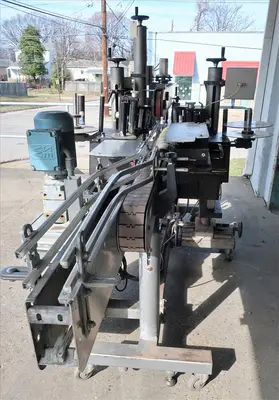

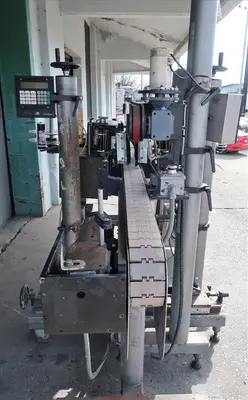

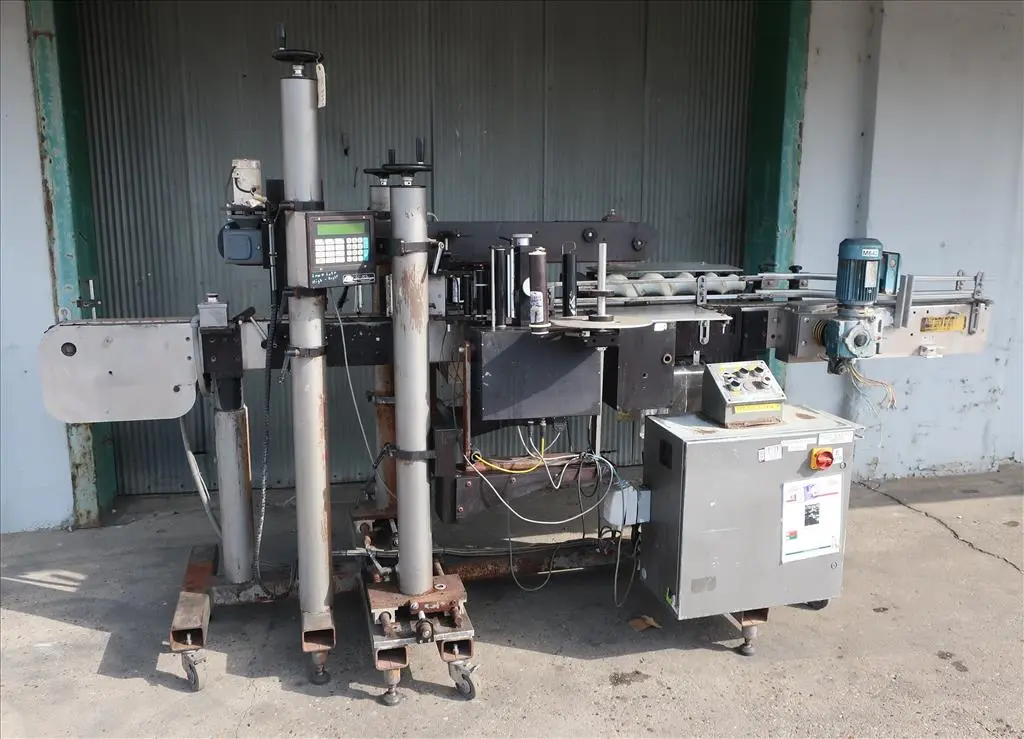

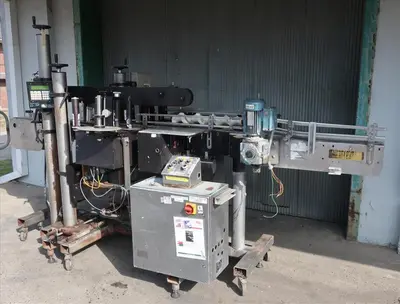

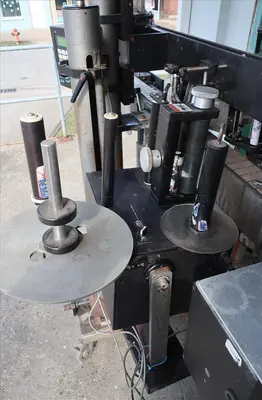

CTM Integration front and back bottle labeling system. The labels are applied by Model 360 merge applicators to the front and back of the bottles as they pass through the labeling station. Equipped with the top trap and feedscrew are driven by servo motors which follow the speed of the conveyor via the encoder. The table top conveyor is 3.25" wide x 10' long and 5' long top rap with 1 hp servo motor. Conveyor speed 900 inches/min equivalent to about 150 bottles per min per manufacturer. The conveyor is driven by a 1 hp 1700 rpm 230/460Y vac 3 ph motor. Serial number FB 15467-1-0301. Overall dimensions: 59"w x 10' l x80" h
Label Application: front and back
Power Required: 230/460 vac 3 ph

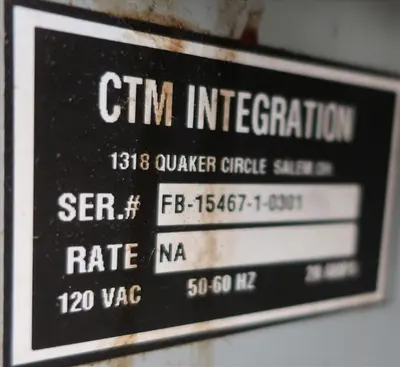

Serial No.: FB 15467-1-0301
Speed: up to 900 inches/min
