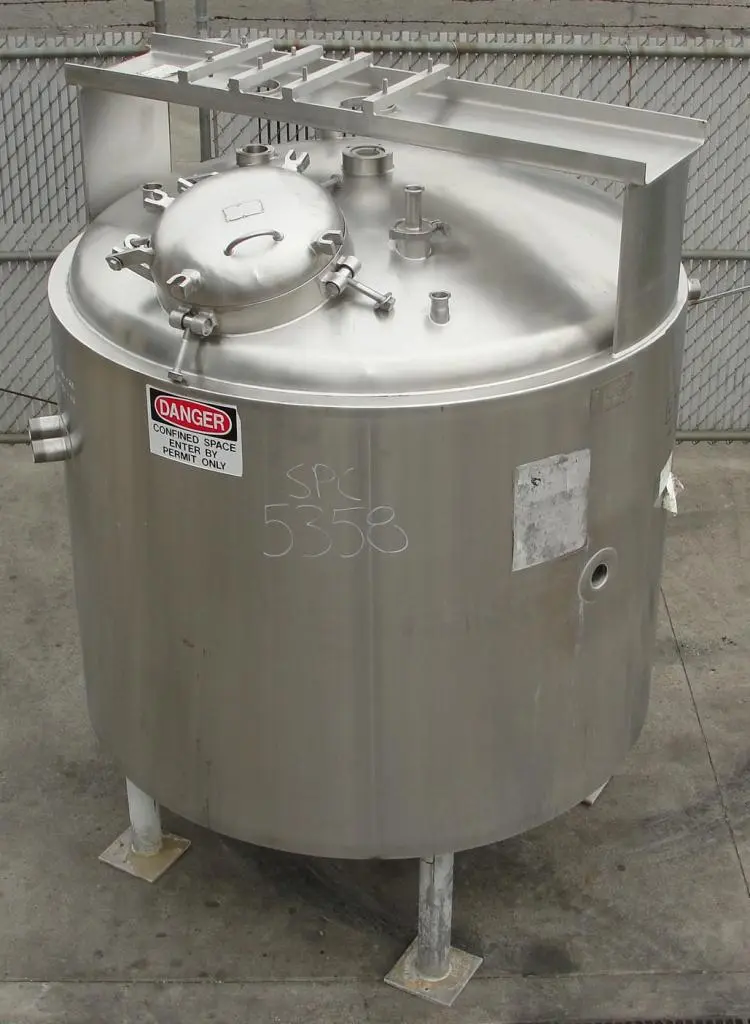

SPC5358 Kettle 400 gallon Groen hemispherical bottom kettle, scrape agitator, 100 psi jacket rating, 316 SS
Overview
Description
Groen 400 gallon 316L stainless steel jacketed kettle. National Board # 138786. The product chamber is rated at 15 psi maximum working pressure (MAWP) and full vacuum @ 30" Hg. The jacket has a MAWP rating of 100 psi @ 338° F and a minimum design metal temperature (MDMT) rating of –20° F @ 100 psi. Kettle dimensions are 60" diameter x 17.5" straight side height with a 30" hemispherical bottom. The kettle top has an 18" diameter manway rated for 15 psi @ 250° F, a 15" wide x 64" long center agitator bridge, (4) 3" Tri-Clamp fittings, (1) 2" Tri-Clamp fitting, and (1) 1.5" Tri-Clamp fitting. The kettle side has (6) 2" NPT fittings. The kettle bottom has a 4" Tri-Clamp discharge and (3) 2" NPT fittings. The kettle has a side sweep agitator blade but no drive. Serial number 97464-3. The kettle’s total dimensions are 70" diameter x 95" high.
Specifications
Agitator: scrape
Gallon: 400
National Board No.: 138786
Psi Jacket Rating: 100
Temp (F): 338° F
