USED ACRISON BDF-3-M

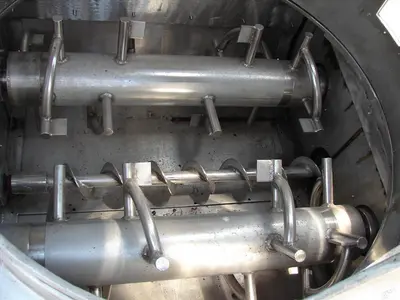

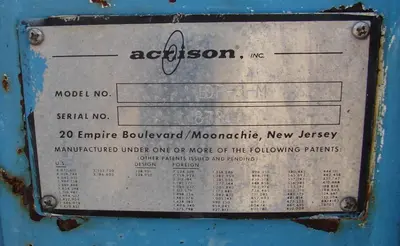

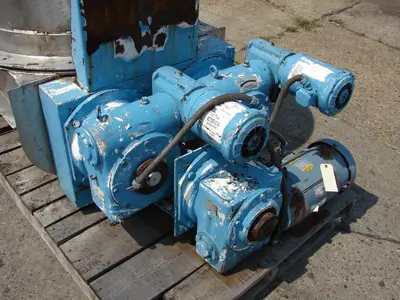

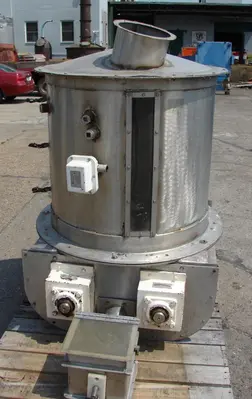

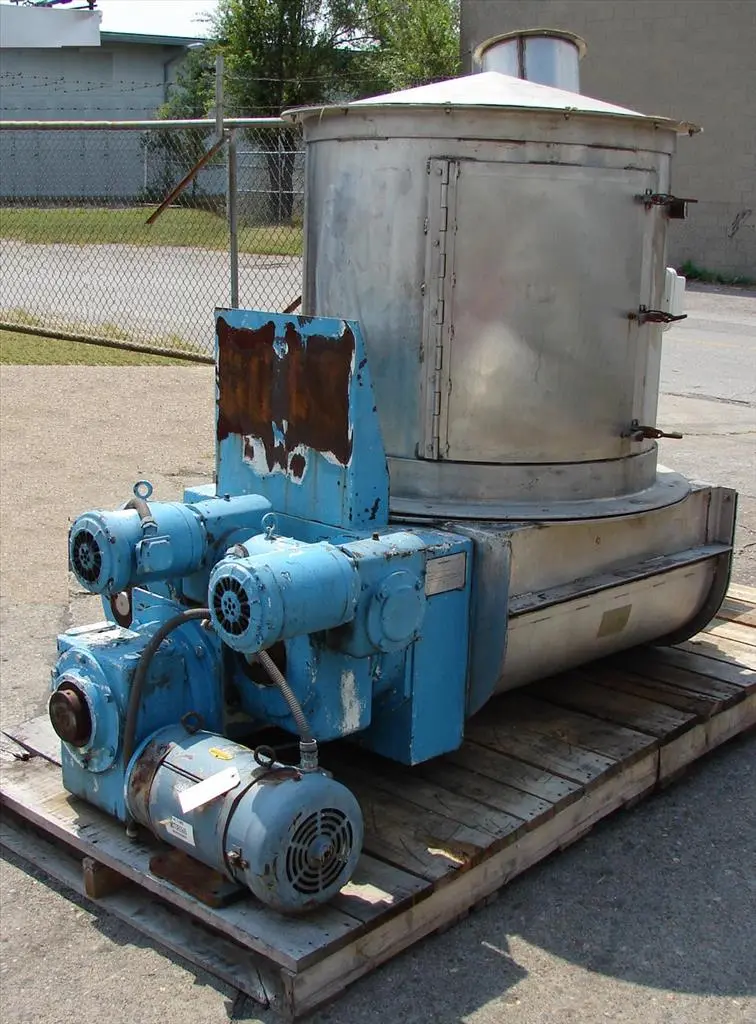

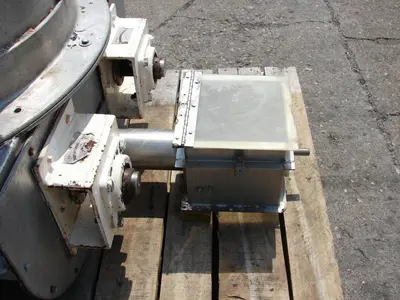

Acrison BDF-3-M 4" screw feeder with twin conditioning augers. Serial #87349. Stainless steel contact parts. The screw is 36" long and 4" in diameter and has a 10" x 10" discharge. Screw is driven by 3 hp motor and gear reducer. The two conditioning augers are 16" in diameter with a 6" shaft. Each auger is driven by a .5 hp motor and gear reducer. The conditioning chamber is 36" w x 36" l X 18" h with 36" diameter open to hopper. The 20 cuft hopper measures 36" d x 35" high. It has a 10" diameter infeed and a 17" w x 24" h acess panel for cleaning. Hopper is also equipped with a rotary vane level indicator. Overall dimensions are 96" l x 46" w x 66" h. Requires 230/460 vac 3 ph electrical supply. Good condition.
