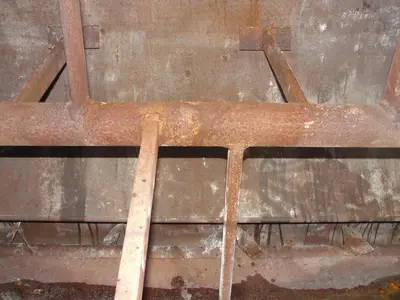

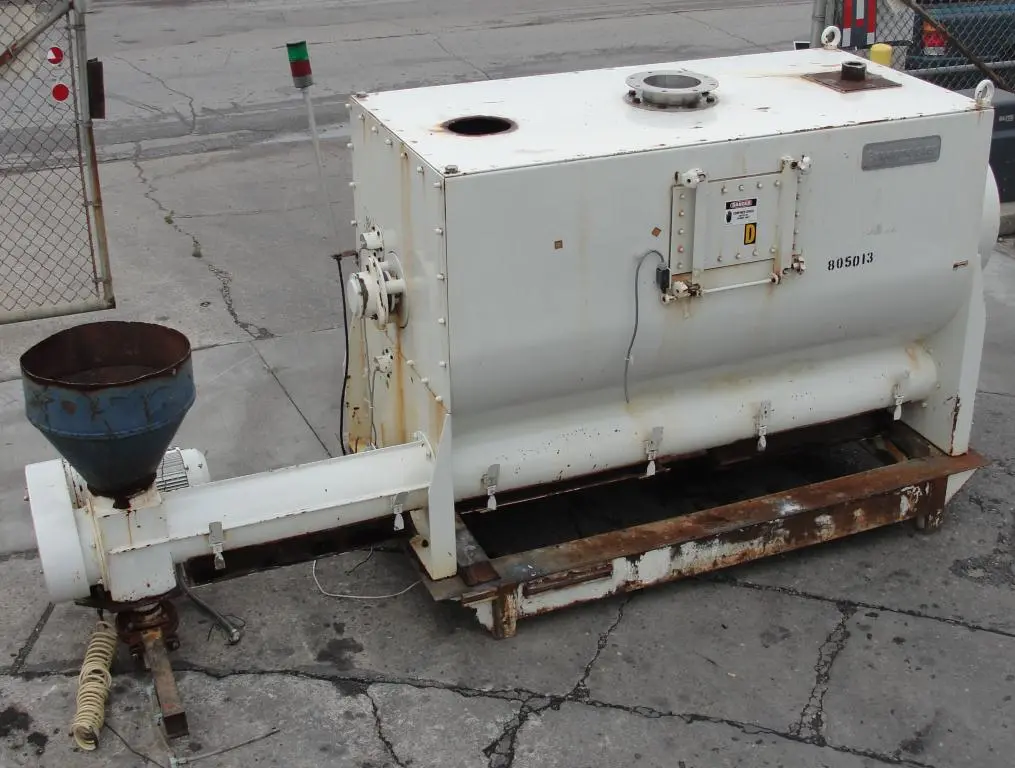

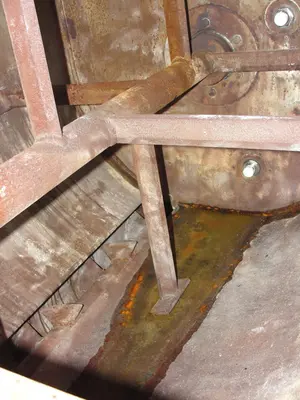

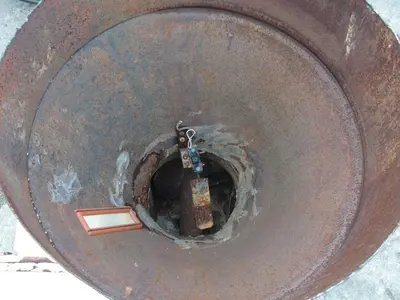

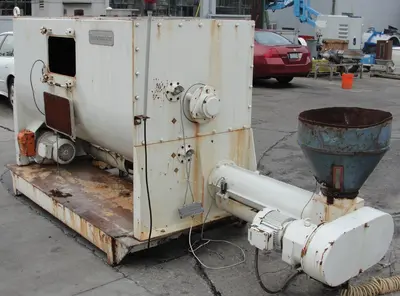

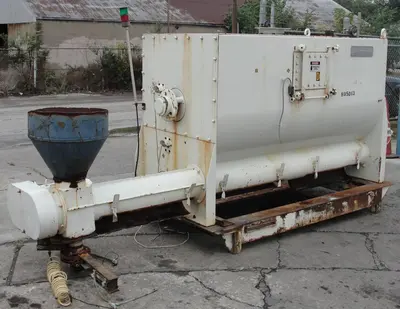

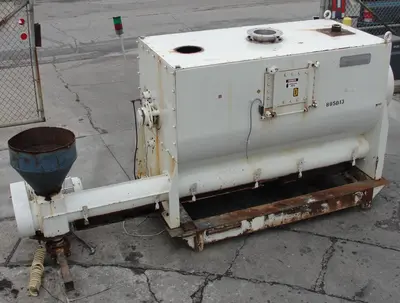

Bauermeister & Co. 60 cu.ft. carbon steel screw feeder. Model BE 2000. The interior of the vessel is 39" wide x 78" long with a 20" straight side height and a 20" trough. The hopper has a 38" diameter agitator driven by a 5 hp 1680 rpm Eurodrive motor. The top of the hopper has (2) 8" diameter inlets and (1) 3" inlet. Both sides have a 19" x 11" hatch. The bottom side has an 8" diameter x 114" long agitator/screw. The agitator/screw goes from agitator blades to a 36" long screw feeder as it leaves the hopper and out the 3" discharge. A 5 hp 1680 rpm Eurodrive motor drives the agitator/screw. Overall dimensions are 146" long x 45" wide x 66" tall. Requires 480 vac 3 phase electrical supply.
Length (Ft): 3'
Screw Dia.: 8"
