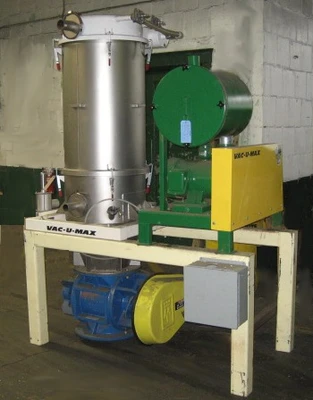

SPC7267 Dust Collector 4 sq.ft. Vac-U-Max reverse pulse jet dust collector 144 cfm, Positive Displacement fan
Overview
Description

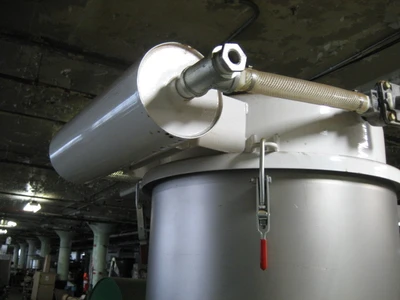

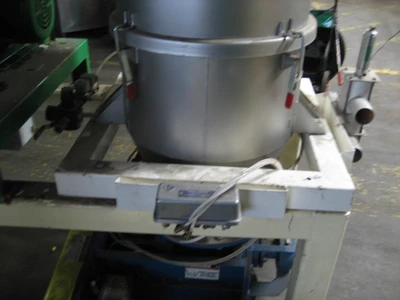

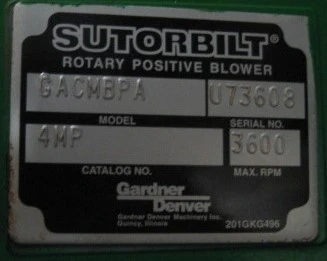

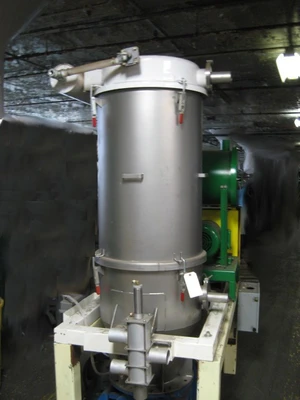

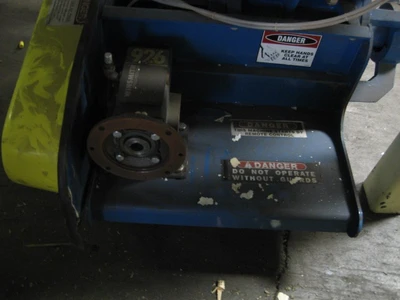

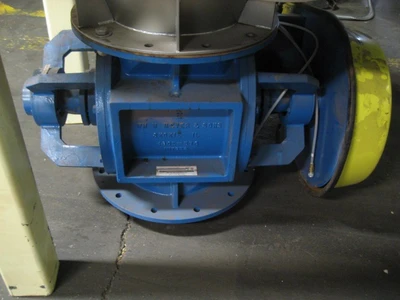

VAC-U-MAX pneumatic conveying jet pulse dust collector system with a positive displacement blower, vacuum receiver/dust collector, and W.M. W. Meyer & Sons rotary airlock used in pneumatic conveying. The blower is driven by a 7.5 hp motor. The blower is a Garden Denver Sutorbilt blower model GACMDPA and is capable of an estimated 144 cfm @ 7 psi. The VAC-U-MAX 22" diameter vacuum receiver is 304 stainless steel and has a 22" diameter top, 2" inlet, 2.5" dust outlet, 12" diameter outlet, and an estimated 4 sq. ft. filter area. The W.M. W. Meyer & Sons rotary airlock is constructed of carbon steel. The rotary airlock requires a 1.5 hp 1730 rpm motor(which is missing) for a 30:1 ratio gear reducer. Requires 230/460 vac 3 phase electrical supply. Unit appears to be unused. The blower was tested in good working condition.
Specifications
Cfm: 144
Fan: Positive Displacement
Power Req. (V): 230/460
Serial No.: 2070072
Sq.ft.: 4
