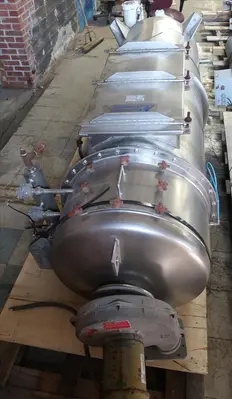

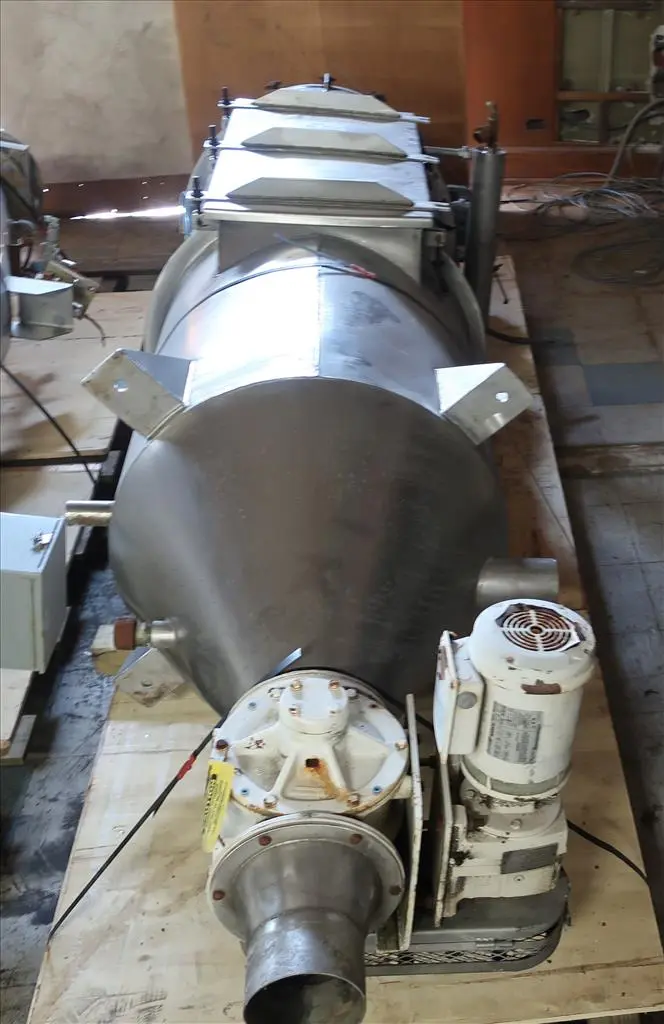

Boedecker Co. model RD-72-10-3B-G stainless steel reverse pulse jet dust collector has 10 bag racks that measure 72" long and have a 4.5" diameter - totals to about 68 sq. ft. There is an 18" x 38" side access door for maintenance. With a 30" diameter, 75" straight side, and 22" cone length, this dust collector's overall dimensions are about 36" w x 50" l x 153" h. There is a carbon steel rotary airlock attached to the 8" discharge port. Driven by a 1.5 hp, 3450 rpm motor that requires 208-230/460 vac, 3 ph electricity, this dust collector has a maximum 650 cfm. Serial no. 5935b
Cfm: 650
Power Req. (V): 208-230/460 vac, 3ph
Serial No.: 5935
Sq.ft.: 68
