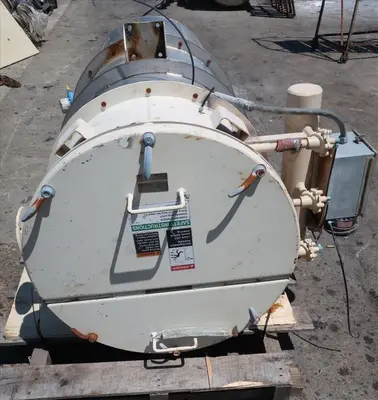

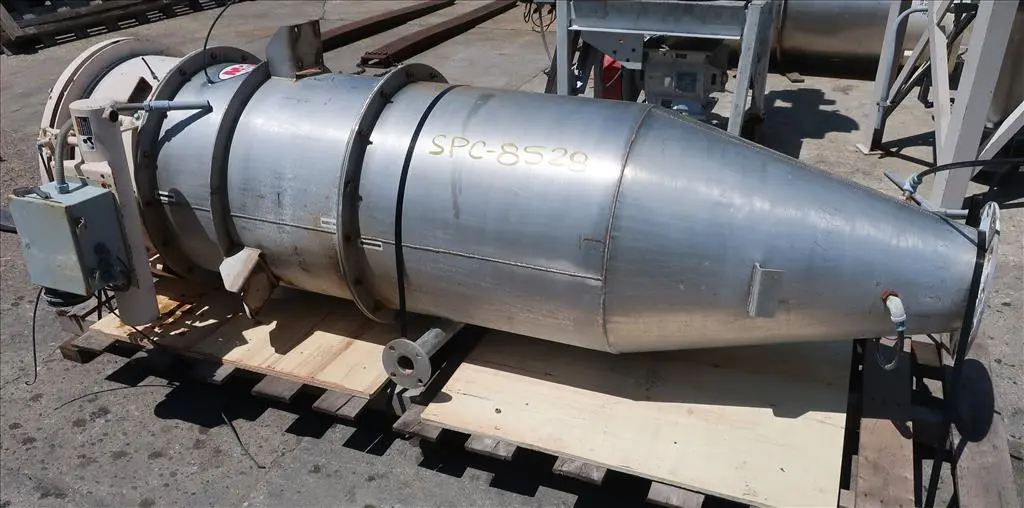

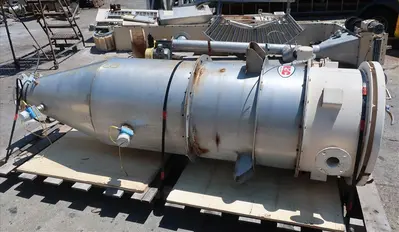

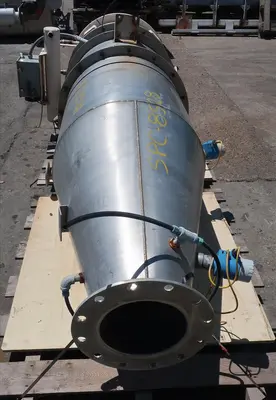

MAC model 19RTC7 stainless steel reverse pulse jet dust collector has 7 dust collector cartridges with 118 sq. ft. of filter media in total. There is a timing control box. With a 27" diameter, 58" straight side, and 34" cone length, this dust collector totals to be about about 36" w x 46" l x 108" h. There is a flanged clean air outlet that measures 2", and the discharge port is 10". Serial no. 28415-027-1
Serial No.: 28415-027-1
Sq.ft.: 118
