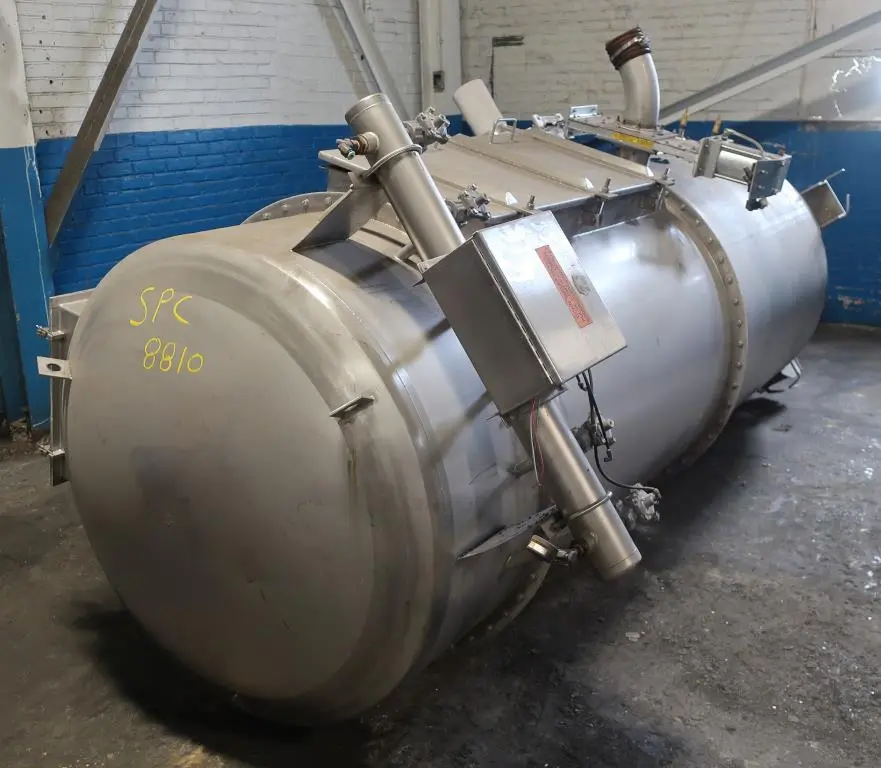

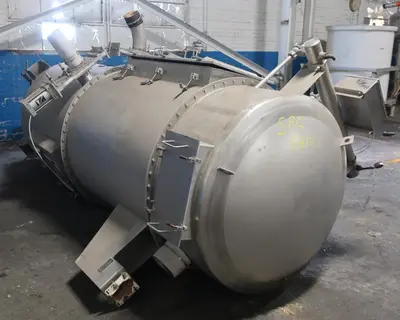

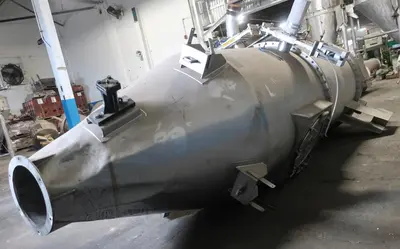

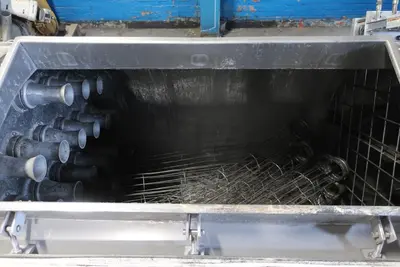

Boedecker model RD-48-32-3B-G reverse pulse jet dust collector. It has approximately 154 sq ft of bag area. It is equipped with a timmer box and solenoids. Unit has 32 bags that are 48" long. Top section has 10" x 20" door. Bag section has 24" x 44" door. The lower section is a bin that is48" diameter x 52" straight side and then a 50" long cone bottom. Outlet is 12". Unit has four anchor chairs and one Navco vibrator. Equipped with a 3 hp fan. 208-230/460 electric power required. Overall length is 180"
Fan: 3 hp
Power Req. (V): 208-230/460 vac 3 ph
Sq.ft.: 154
