SPC9193 Blower 8,500 cfm centrifugal fan Clarage Fan Co. size 325 125 hp, Stainless Steel

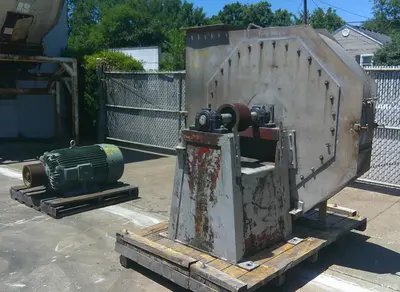

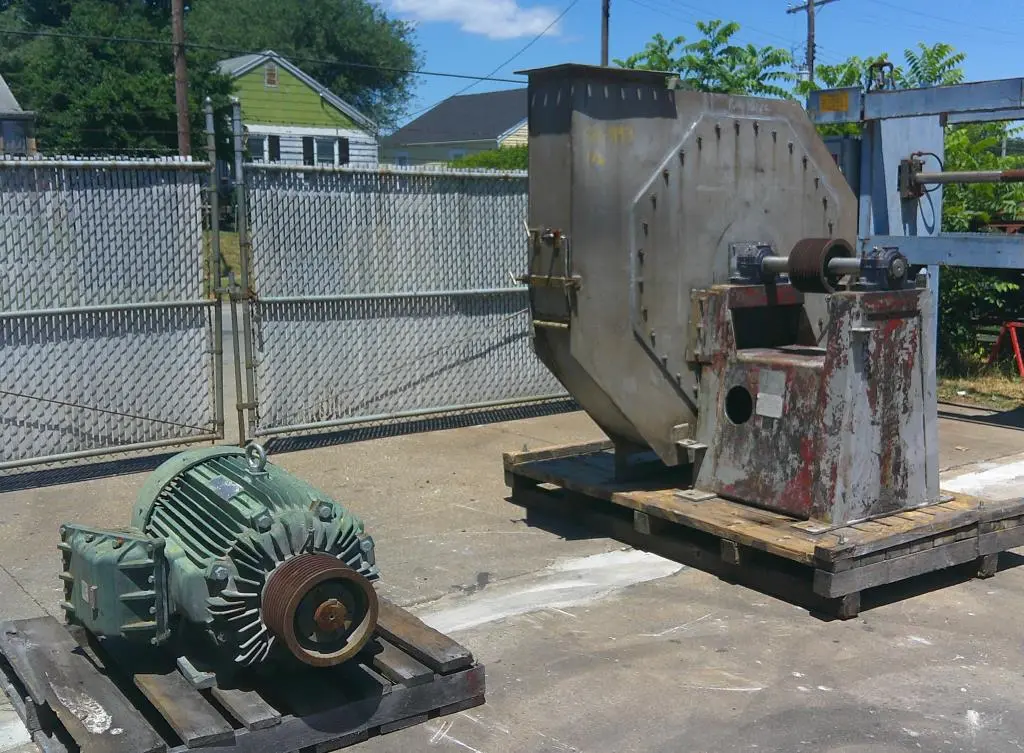

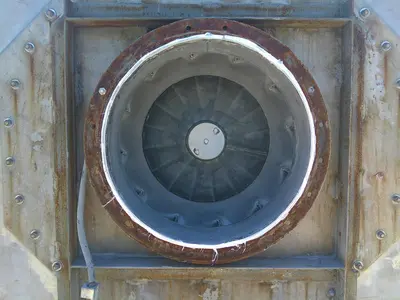

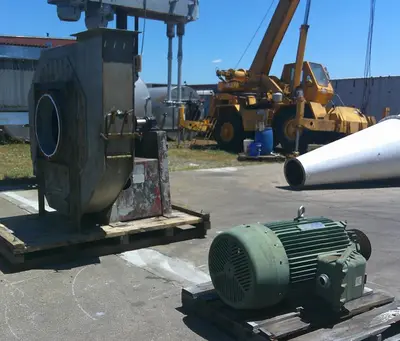

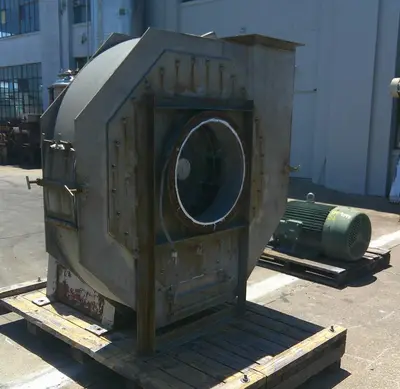

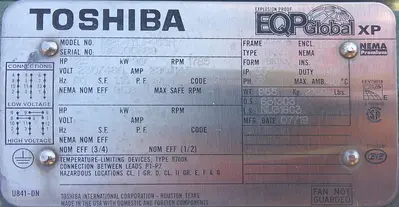

Clarage Fan Company type 0, size 325 stainless steel centrifugal fan. It is rated for 8,500 cfm @ 37" static pressure. The blower has a 24" diameter inlet and a 12" wide x 19" long rectangular discharge. It has a 10" x 15" access door in each end and a 10" x 15" cleanout under the intake (see pictures). It is belt driven by a 125 hp 230/460 vac 3 ph motor that is tagged for hazardous locations. The motor was previously mounted on a concrete pillar. Buyer will have to make provision for mounting the motor. Overall dimensions of the blower are 81" across x 55.25" deep x 76" tall. Good condition.
