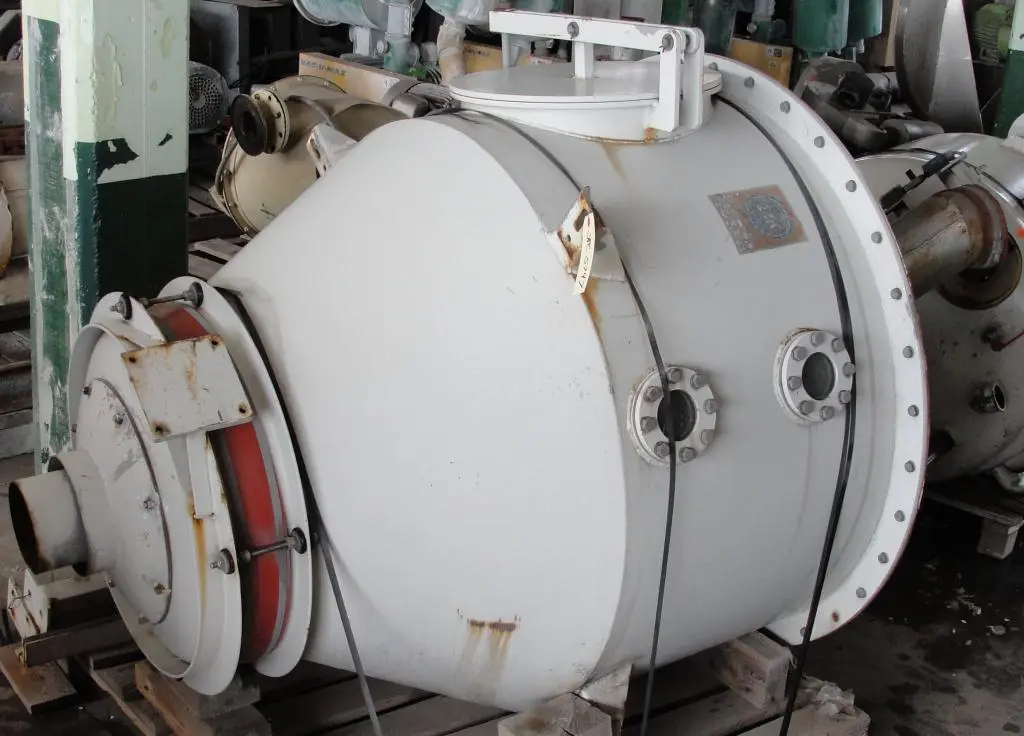

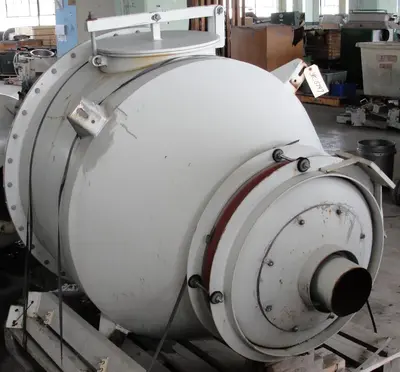

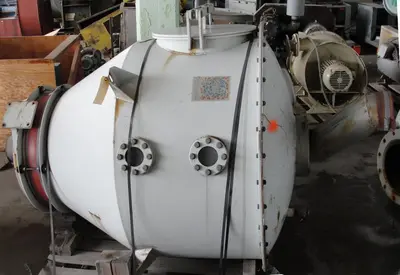

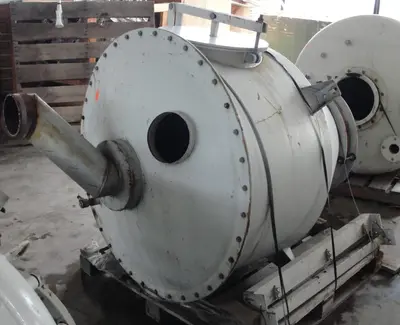

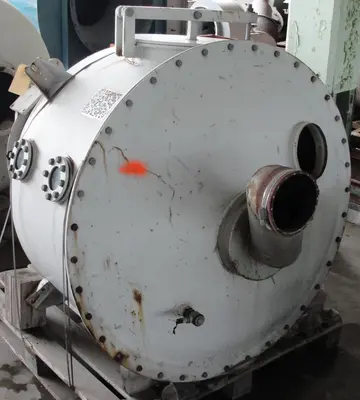

30 cu ft carbon steel bin or hopper. Hopper is 45" in diameter with 24" straight side and 20" deep conical bottom. The hopper has a 6" diameter inlet and a 7.5" diameter inlet on top. The side has (2) 3" diameter glass view ports and a 20" diameter manway. The bottom has a 20" diameter flanged discharge reduced to a 5.5" diameter flange center discharge.
Cu.ft.: 30
Diameter: 45"
Height/Length: 24"
Manway: 20"
