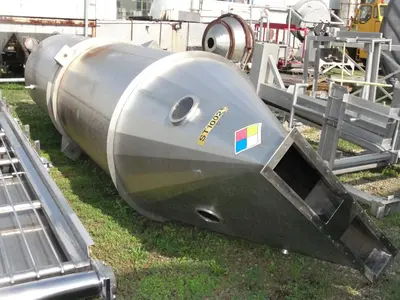

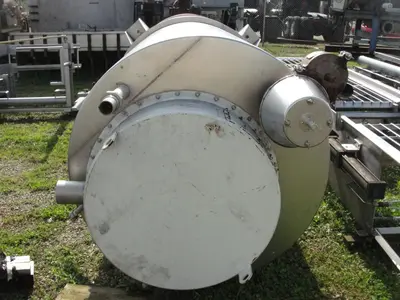

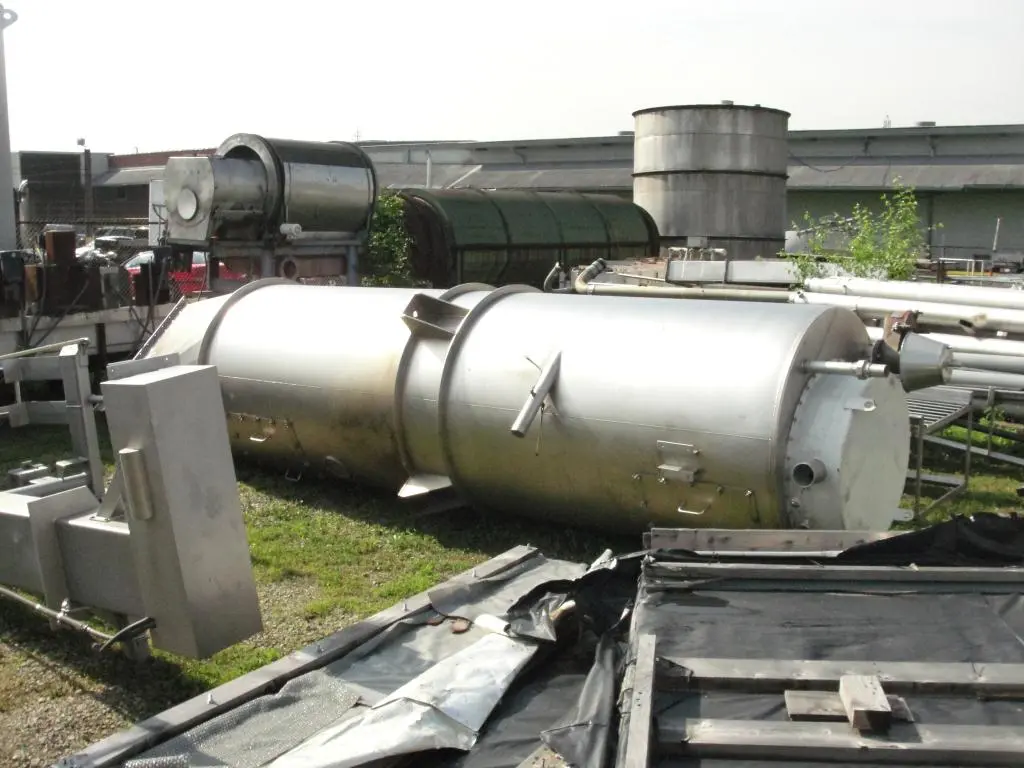

260 cu ft stainless steel bin The bin is 54" in diameter with 175" straight side height and 67" conical bottom. The infeed is a 2.5" pipe fitting in the side. There are (3) 6" diameter sight glass in the side of bin for monitor levels. There are also (2) 24"x24" manway for easy access to bin. The bottom discharges into a screw conveyor through (2) 21" x 6" discharges which channels product to centered 6" flanged discharge. In the top of the bin are (14) 6" x 40" dust collects socks that us reverse pulse air to clean. Dust collect is equipped with a Chicago Conveyor vacuum release on top. Over all height with conveyor and vacuum release is 280". Excellent condition.
Cu.ft.: 260
Diameter: 54"
Height/Length: 54" x 280"
Manway: (2) 24" x 24"
