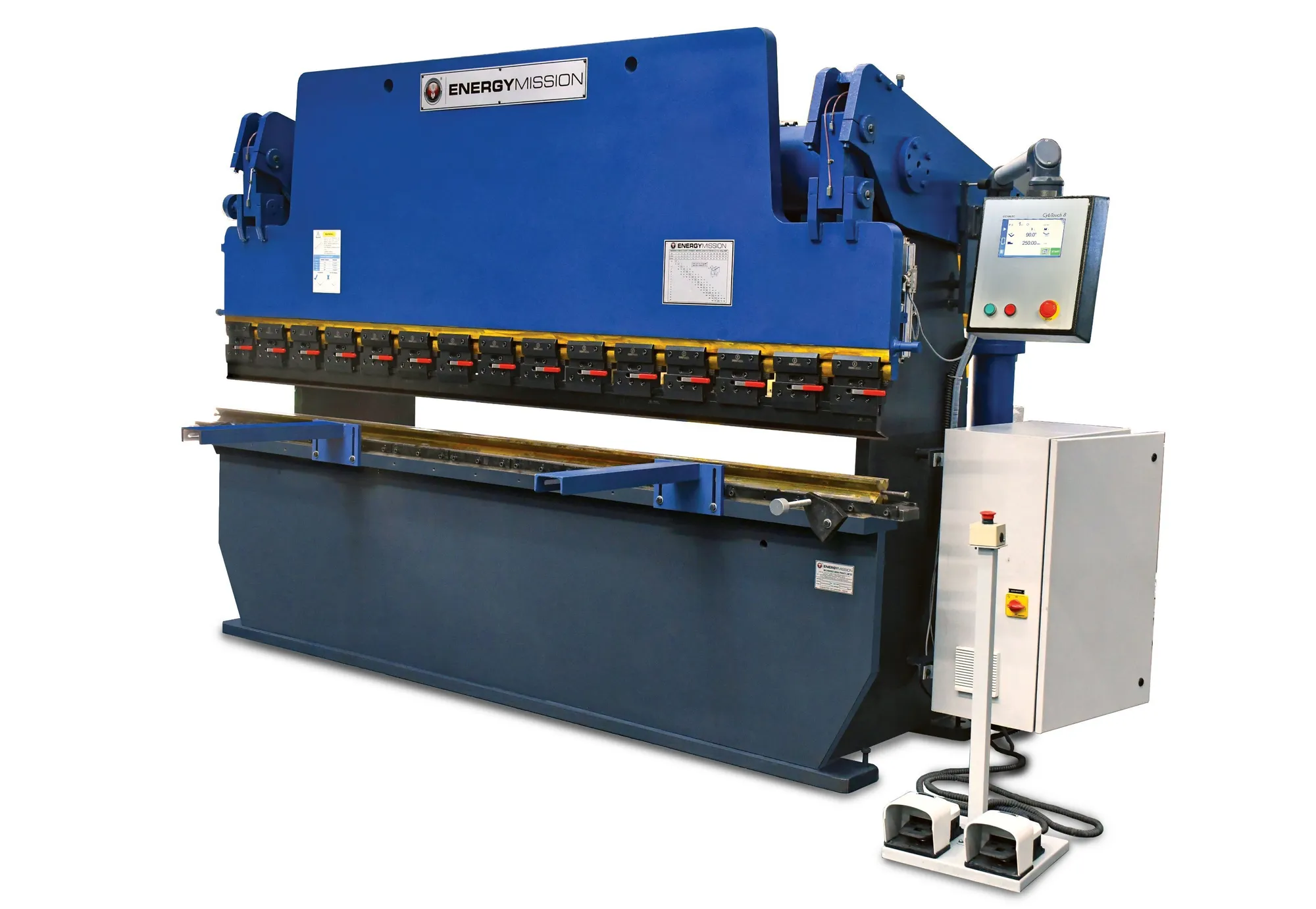

HYDRAULIC
PRESS BRAKE
RANGE / LENGTH
30 MT to 600 MT
1250 mm to 8000 mm
SALIENT FEATURES
- The stable robust welded steel Frame made of ultrasonically and tensile tested IS 2062 plate as per guidelines of IMTMA standards
- Fast approach & fast return speed to save cycle time, slow pressing speed for better stroke control & bending accuracy, ensures high productivity
- Repeatability for ram position ± 0.05mm
- Compact cylinders & low pressure system due to rear cylinders. Also it gives better rigidity & load carrying capacity against fatigue failure
- Positive synchronisation of cylinders with welded torque tube gives better bending accuracy on both ends
- Moving work station with manual, single cycle & automatic mode for easy operation with emergency stop button
- NC upgradation possible on site
- All electrical & hydraulic component from reputed make
- Hydraulic Cylinders made from seamless honed tube, hardened & grounded chrome plated piston rod fitted with twin type zero leak PU Seals
- Suitable for upgradation with special optional features
| Tonnage | 30 T | 27.216 t |
| Type | HYD | HYD |
| Table Length | 2,000 mm | 78.74" |
| Bending Length | 2 mm | 0.0787" |
| Table Width | 125 mm | 4.9213" |
| Clear Pass | 1,550 mm | 61.024" |
| Ram Stroke | 100 mm | 3.937" |
| Open Height | 250 mm | 9.8425" |
| Throat Depth | 200 mm | 7.874" |
| Approach/Pressing/Return Speed | 37-5-35 mm/sec | 37-5-35 mm/sec |
| Power | 3 hp | |
| Dimensions L x W x H | 2200x1650x2400 mm | 2200x1650x2400 mm |
| Weight | 1750 kg | 1750 kg |
