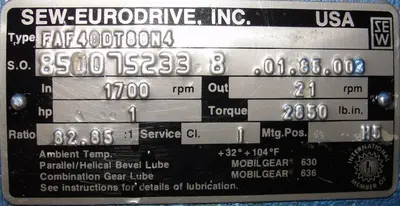

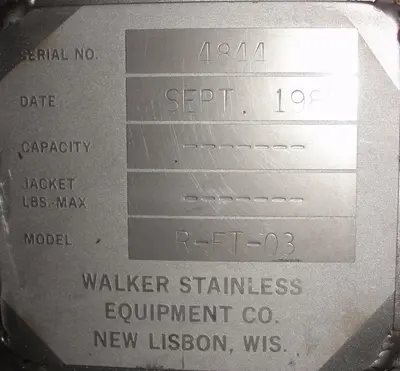

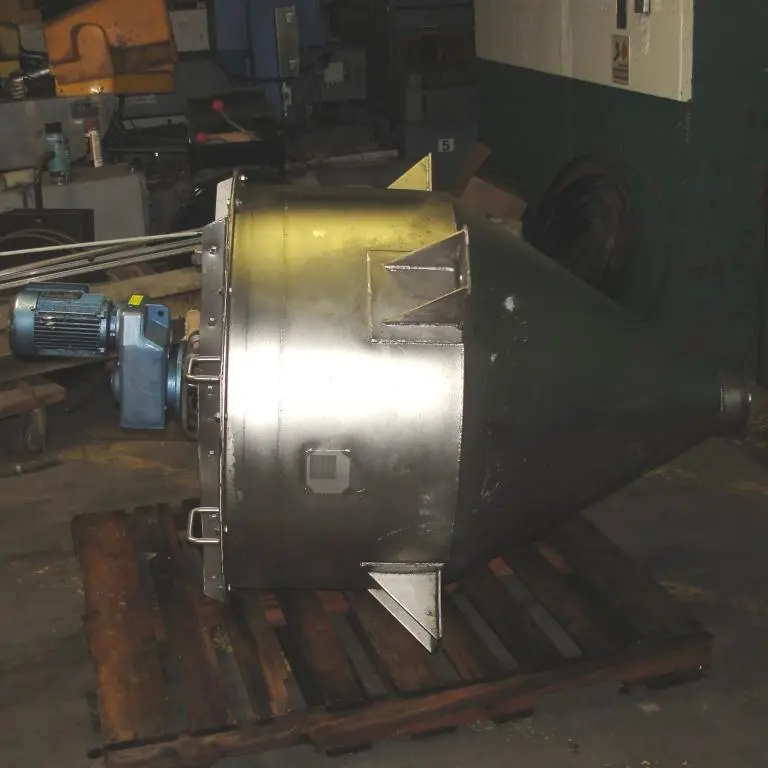

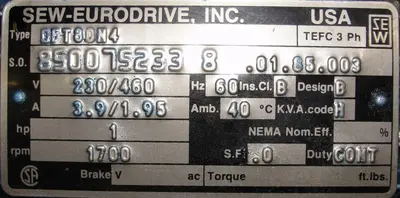

Walker Stainless Equipment Co 14 cu. Ft. stainless steel agitated cone hopper. Hopper has a 35" diameter x18" straight side x 25" cone. The hopper top has a 5.5" inlet and (2) 2" diameter NPT inlets. The hopper side has a 2" NPT inlet. The hopper’s cone bottom has a 5" diameter center discharge. The agitator has stainless steel mixing bars for breaking up lumps. The agitator is driven by a 1 hp 1700 rpm motor reduced to 21 rpm with an 82.85:1 ratio. Requires 230/460 vac 3 phase electrical supply.
Cu.ft.: 14
Diameter: 35"
