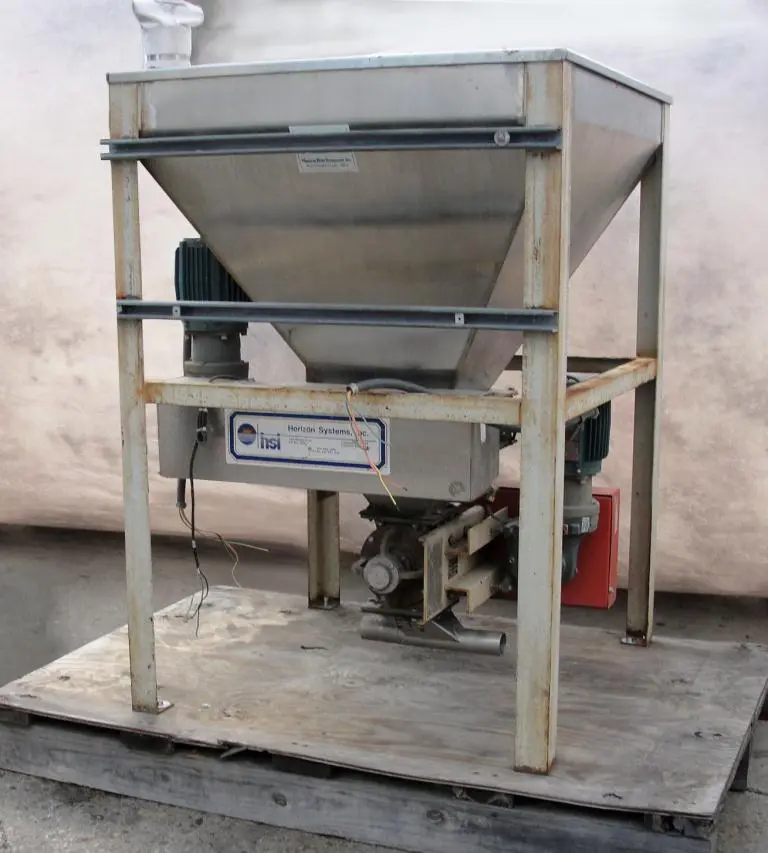

SPC7620 Bin Hopper Silo 16 cu.ft., bulk storage bin, Stainless Steel

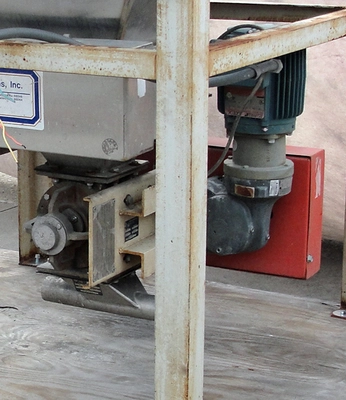

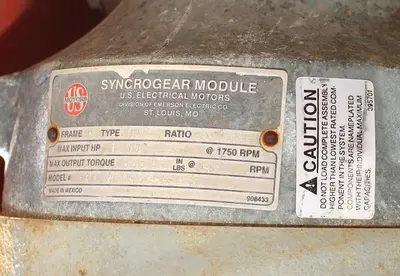

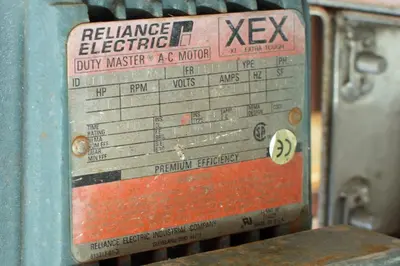

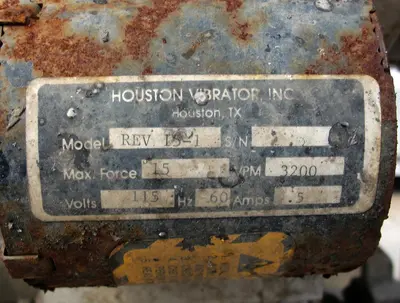

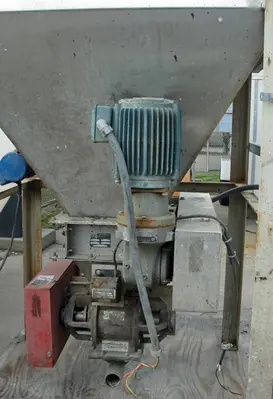

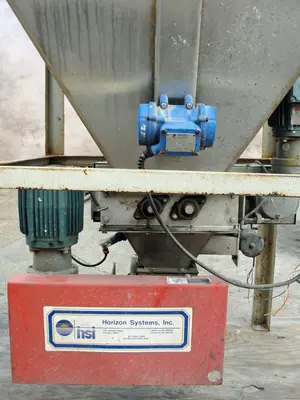

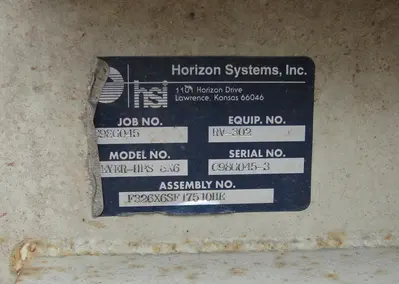

Enclosed 16 cubic foot Hopper National Bulk equipment storage bin. The hopper has a 9’’ diameterinlet. The hopper is attached with 0.09 hp Wam corp KRC 36 vibrator motor. This bin is equipped with Horizon System pneumatic conveying systems below of the hopper. Starting with a Lump Breaker (or Delumper) of 12"x12", driven by a ¾ hp Reliance Electric Duty master Ac Motor and a 39.0 ratio GHP Synchrogear module . Then transition to a 0.3 cubic foot Vibrator hopper attached with a Houston vibrator. Then transition to a Heavy duty 6x6 Rotary airlock valve driven by a ¾ hp Reliance Electric Duty master Ac Motor and 39.0 ratio GHP Synchrogear module. And Then end up With a pneumatic bilateral outlet of 2 ¼ ‘’ diameter.The Unit has 42" x 44" overall width and length and 68" overall height. Power required is 230/460 vac3. Good condition.

Cu.ft.: 16
Diameter: 9'' Inlet Hopper
Height/Length: 29 ½ '' height and 42 '' length Hopper
Special Comment: Delumper or Lump Breaker
