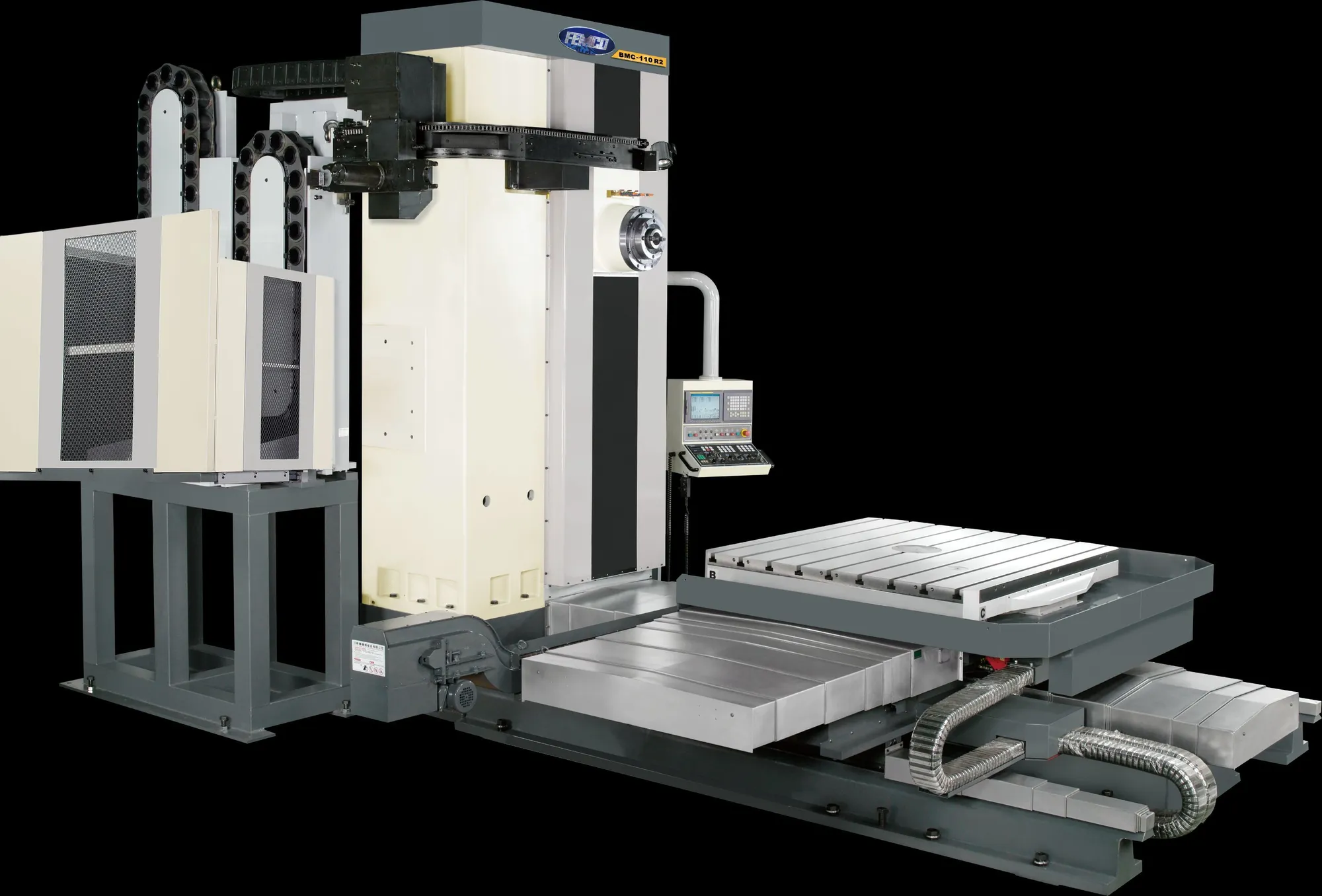

NEW FEMCO BMC-110R2

SPECIFICATIONS:
Travel:
Table Cross Travel (X-Axis) 78.74”
Headstock Travel (Y-Axis) 70.87”
Table Longitudinal Travel (Z-Axis) 64.96”

Table:
Table Size 56.69” x 62.99”
Table Load 13,889 Lbs

SPINDLE:
Bar Diameter 4.33”
Stroke (W-Axis) 19.69”
Taper ISO #50 with Power Operated Drawbar
Tool Shank CT50
Milling Spindle Diameter 8.86”
Pull Stud (Option MAS-I) MAS-II 60 deg
Motor (Continuous/30 min Rated) AC 22/26 KW (29.5 / 35 HP)
Speed Ranger-Low Stepless 5 to 454 RPM
Speed Ranger-High Stepless 455 to 2,500 RPM
Automatic tool changer (ATC)
Tool Storage Capacity 60 ATC Standard, 90 ATC Optional
Max. Tool Diameter (Adjacent Pods Full) 4.72”
Max. Tool Diameter (Adjacent Pods Empty) 9.84”
Max. Tool Length 15.75”
Max. Tool Weight 55 Lbs
Tool to Tool Exchanging Time 15 sec
Tool Selection Method: Automatic Selection of the Shortest Route

Positioning Servo Motor:
X-Axis 8.0 hp
Y-Axis 9.4 hp
Z-Axis 8.0 hp
W-Axis 5.4 hp
B-Axis (Rotary table) 5.1 hp
Feed Rate in all Axes 0.2 - 157.7” /min (stepless)

Control:
Positioning Accuracy X, Y, Z, and W-Axis 0.025/300mm(0.001”/11.81”) Repeatability X, Y, Z, and W-Axis ±0.01mm( ±0.0004”)
Control Axes 5
W-Axis 4
Rapid Traverse Rate: X-, Y-, Z-Axis 394 IPM
W-Axis 157 IPM
Rapid Rotation of Rotary Table 0.72 RPM

Machine Dimensions and Net Weight:
Height (Standard) 147”
Floor Space 308” x 244”
Net Weight 41,887 Lbs

Power Requirements: 220 Volts 3 Phase 60 Cycle, 200 Amps,
440 Volt Transformer on Request.

MACHINE FEATURES:
FANUC Oi CONTROL SYSTEM:
Controlled 5 Axes Simultaneous Controllable 4 Axes
Reference Point Return (G27, G28) Linear Interpolation
Circular Interpolation 10.4” LCD Control Monitor
Registered Programs 63 Part Program Stored Length 80m
Sequence Number Search Program Number Search
Manual Pulse Generator External Work Number Search
Program Protect Inch/Metric Switching
Machine Lock Backlash Compensation
Program Protect Signal Self-Diagnosis Function
Read/Puncher Interface Direct Input of Meas. Work Coord. Sys. Shift
EIA/ISO Automatic Recognition Mirror Image
Actual Speed Display Work Coordinate System G54 - G59

STANDARD ACCESSORIES:
X-, Y-, Z-Axes Linear Scales Rotary Table, 90 Degree Precision Indexing
Saddle Slideway Cover Table Slideway Covers
Working Light X-, Y-, Z-Axes Ball Screw Cover
Anchors and Levels for Installation Headstock Cooling System
