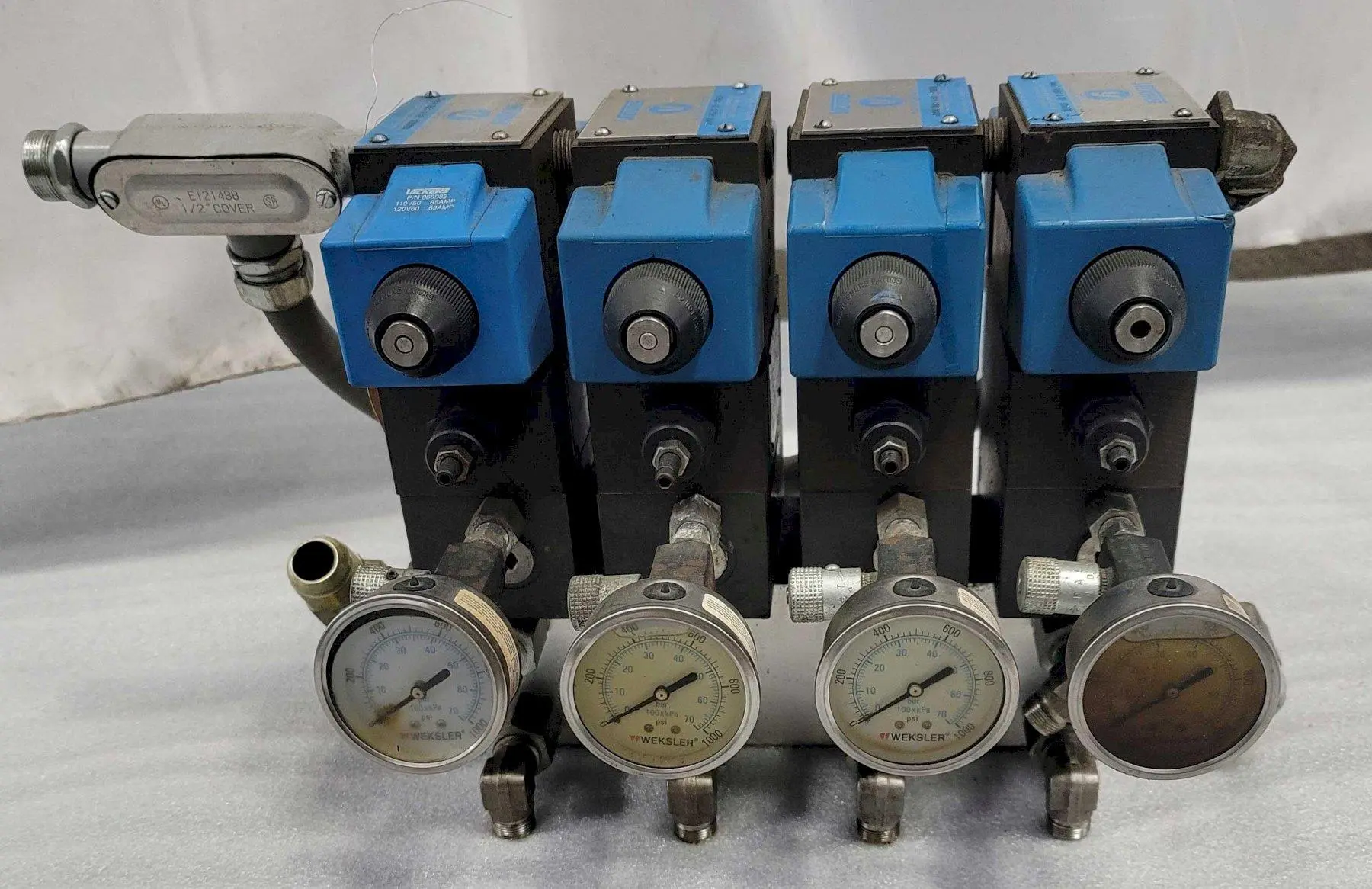

USED Eaton Vickers DGMFN-5-Y-A2W-B2W-30
Overview
Description
EATON VICKERS SYSTEMSTAK FLOW CONTROL VALVES, (4) Hydraulic Directional Pilot Valves, Pressure Reducing Valves, Valve Coil P/N 868982, Weksler Gauges
Specifications
| Valve Type | Check Valve | Check Valve |
|---|---|---|
| Stages | Two Stage | Two Stage |
| Type of Actuation | Pressure Operated | Pressure Operated |
| Solenoid Voltage | 110 V | 110 V |
| Solenoid Frequency | 50 Hz | 50 Hz |
| Max Pressure P, A, & B | 4,570 PSI | 315.1 bar |
| Operating Pressure | 4,570 PSI | 315.1 bar |
| Voltage | 110 V | 110 V |
| Flow Rate | 32 gpm | |
| Dimensions | 21 x 13 | 21 x 13 |
| Weight | 175 | 175 |
Valve Type: Check Valve
Stages: Two Stage
Type of Actuation: Pressure Operated
Flow Rate: 120 L/Min, 32 GPM
Max Operating Pressure: 315 Bar,570 PSI
Approximate Dimensions (each): 9.2" x 2.8" x 2"
Approximate Weight (each): 7 LBS
Approximate Dimensions Overall: 21" x 13"
Approximate Height Overall: 12"
Approximate Weight Overall: 175 LBS
Equipped With
Pressure Reducing Valve
- MODEL DGMX2-5-PP-BW-S-30
- ASSY NO V-920269
- S/N 100272
- 4,570 PSI
- 315 bar
Hydraulic Directional Pilot Valve, with 4-Way Solenoid Action
- MODEL DG4S4-012N-B-60
- MAX FLOW 20 GPM
- Valve Coil P/N 868982, 110 VAC 50 Hz or 120 VAC 60 Hz
