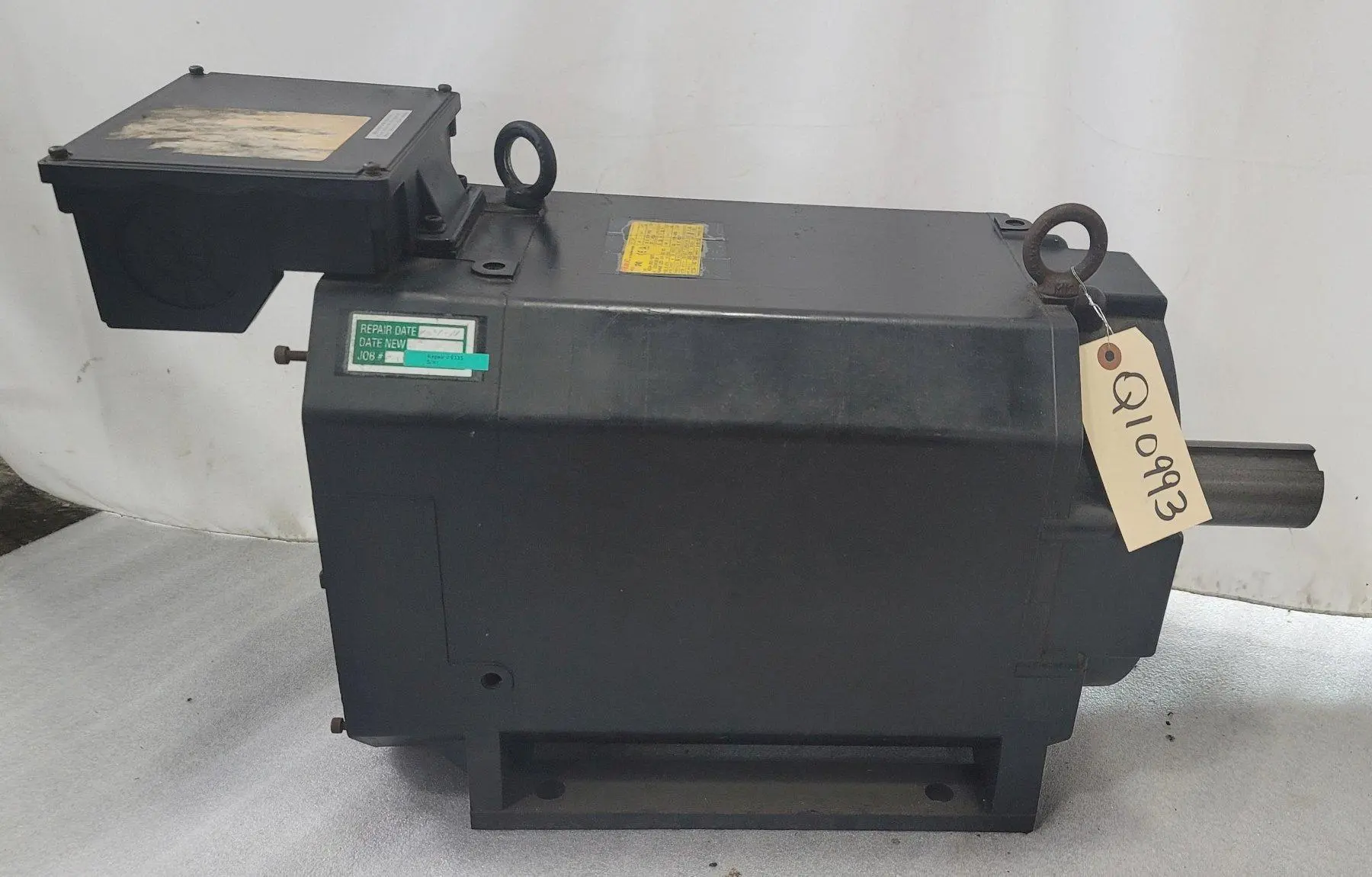

USED 2000 Fanuc ΑP40 A06B-0831-B200

FANUC AC SPINDLE MOTOR, A06B-0831-B200, Model αP40, 3-Phase.

Base Speed: 3,450 RPM
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
Power Factor: 82%
Ambient and Time Rating: 40° C AMB-CONT
Current Type: AC
Approximate Dimensions: 30" x 12-1/2"
Approximate Height: 16"
Approximate Weight: 485 LBS

SI CONT
18.5 kW   575 - 3450 RPM
15   kW   4500 RPM

S2
22   kW   575 - 3450 RPM
18.5 kW   4500

WIND.CONNECT Δ
# POLES 4
MOTOR INPUT 131 - 217 V
AMP INPUT 200 - 230 V
IEC34-1/A2 1989
IP 40
