USED Agie Tables, Floor & Layout Plates
USD $2,950.00
Overview
Description

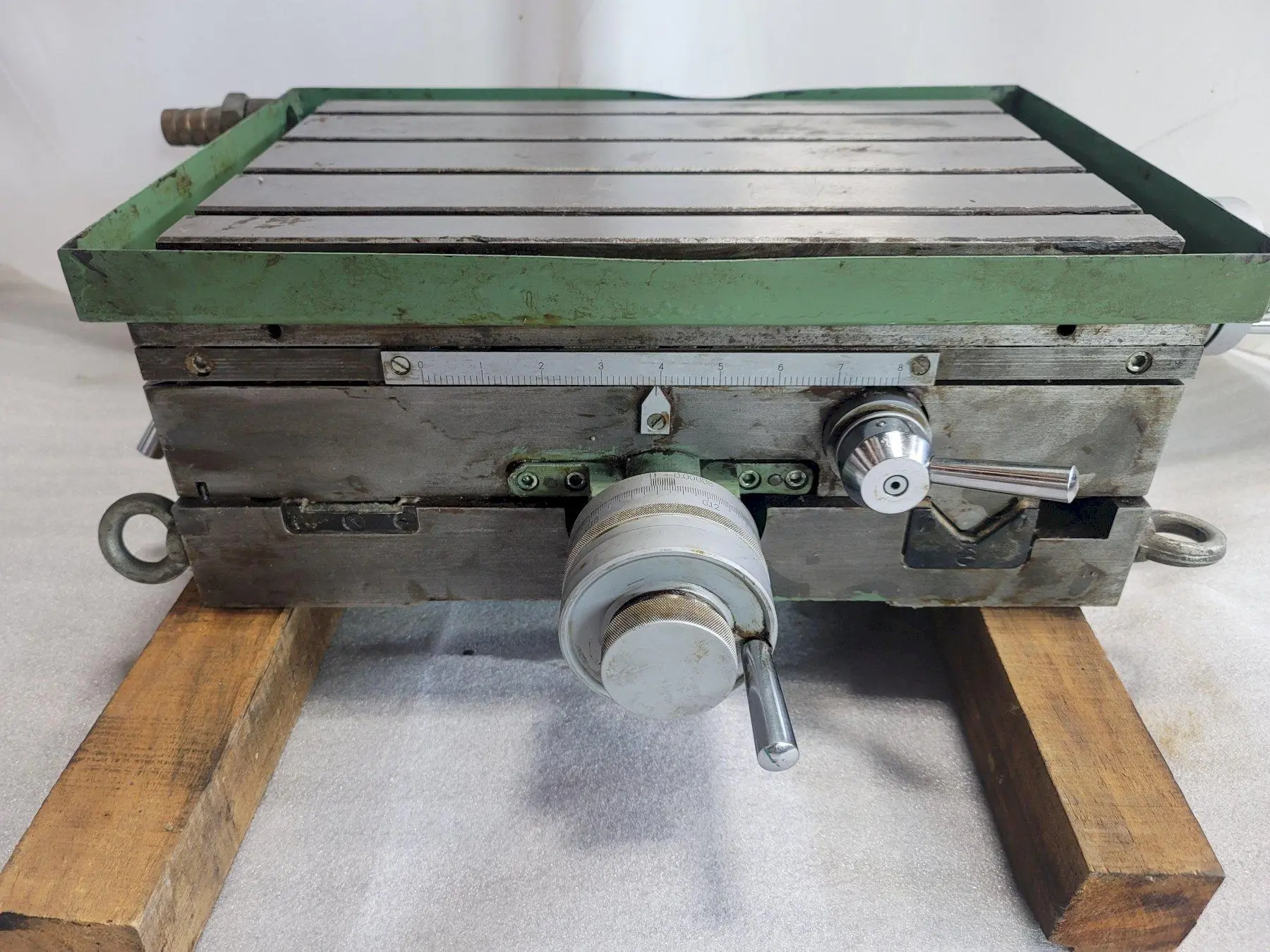

16-1/2" x 10-1/4" Precision Fine-Adjust X & Y Axis Cross-Sliding T-Slotted Add-On Table with Fine Calibrated Dials and Table Clamping Lever. 4-1/4" X-Axis Travel, 3-3/4" Y-Axis Travel, 10" Table Height.
Specifications
| # T-Slots Cross | 4 | 4 |
|---|---|---|
| T-Slots Width Top (Throat) | 0.4375" | 11.113 mm |
| T-Slot Spacing (Centers) | 6.25" | 158.75 mm |
| Dimensions | 29" x 20" x 12" | 29" x 20" x 12" |
| Weight | 253 LBS | 253 LBS |
Worktable Dimensions W x L: 16-1/2" x 10-1/4"
Equipped With
Hold Down Slots for the table are 6-1/4" between centers.
